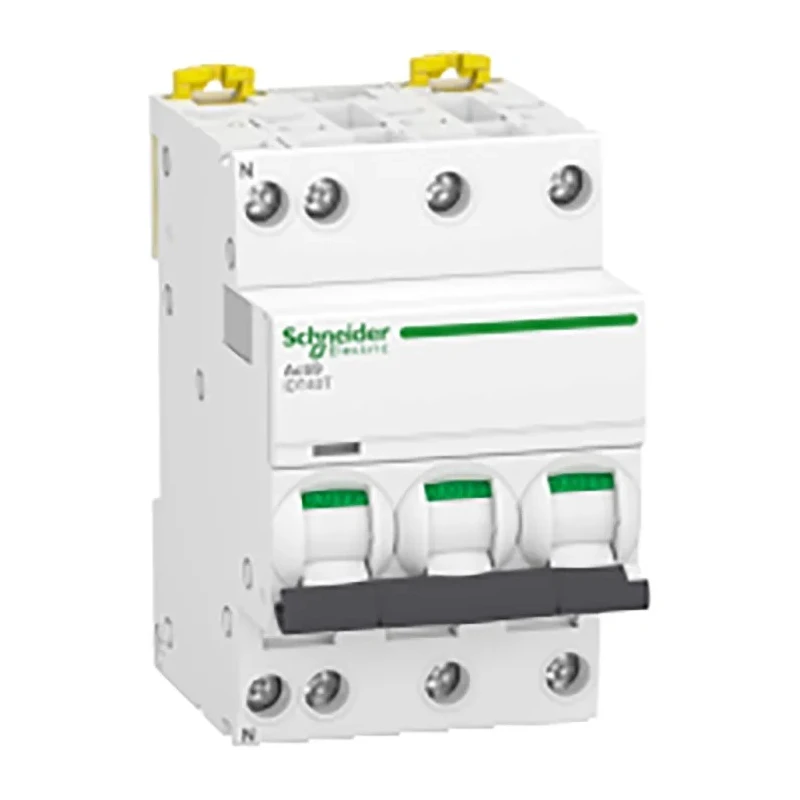

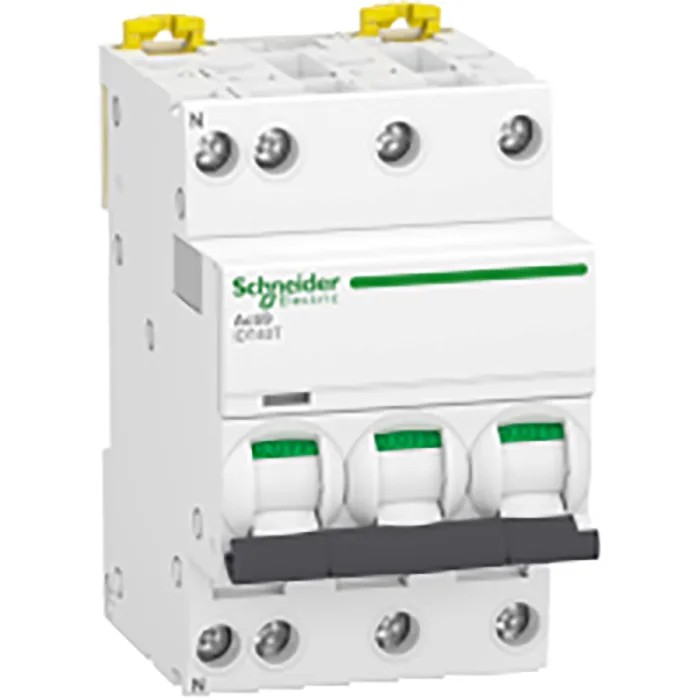

Schneider Electric Miniature Circuit Breaker 3-Pole, 16A, Type C, 4.5kA, DIN Rail, Acti9 iDT40T Series A9P22716
Specifications
| Country of Origin | Hungary |
|---|---|
| Range | Acti9 |
| Brand | Schneider Electric |
| Height | 85mm |
| Model | A9P22716 |
| Depth | 85mm |
| IP Rating | IP20 |
| Width | 74mm |
| Mount Type | DIN Rail |
| Current Rating | 16A |
| Series | Acti9 iDT40T |
| Terminal type | Screw |
| Breaking Capacity | 4.5kA |
| Number of Poles | 3 |
| Standards/Approvals | EN IEC 60947-2, RoHS, EN IEC 60898-1, REACH, CE |
| Tripping Characteristics | Type C |
| Tripping Mechanism | Thermal Magnetic |
| Reset Actuator Type | Toggle Switch |
| Class-2 insulation | ensures continuous protection for both operators and unqualified persons |
| Curve C | Tripping: 5 to 10 times the rated current |
| Curve D | Tripping: 10 to 14 times the rated current |
Key Features
- Provides reliable short circuit and overload protection for industrial and commercial installations.
- Features Type C tripping for effective operation with high inductive loads and switching surges.
- DIN rail mount design enables easy integration into standard electrical panels.
- Thermal-magnetic tripping mechanism ensures prompt disconnection in fault conditions.
- Robust screw terminal connections provide stable and secure wiring.
- Class-2 insulation and IP20-rated terminals enhance operational safety for users and equipment.
- Complies with IEC 60898, IEC 60947-2, RoHS, and CE standards for trusted performance.
- Compact 85mm x 74mm x 85mm (H x W x D) form factor fits modern switchboards.
Product Description
The Schneider Electric A9P22716 Miniature Circuit Breaker from the Acti9 iDT40T series is a robust, three-pole protection solution, offering 16A current rating and 4.5kA breaking capacity suited for modern industrial and commercial electrical installations. Designed for direct DIN rail mounting, this circuit breaker ensures comprehensive protection against short circuits and overloads. It is well-suited for supplying high inductive loads, such as motors or systems with frequent switching surges, thanks to its Type C tripping characteristic, which operates effectively between 5 to 10 times the rated current.
The A9P22716 incorporates a thermal-magnetic trip mechanism to deliver fast and precise circuit protection, ensuring safety of both equipment and personnel. Its IP20-rated insulated screw terminals and Class-2 insulation safeguard against accidental contact, while the use of high-durability components guarantees longevity under demanding conditions.
Operational features include a VisiSafe indicator that confirms circuit isolation for safe downstream maintenance, and a VisiTrip red window that quickly signals trip status, minimizing system downtime and aiding troubleshooting. These advanced safety features provide essential functionality for industrial buildings and polluted environments where electrical reliability is critical.
This MCB is compact (85mm height x 74mm width x 85mm depth), making it ideal for integration into populated switchboards. It utilizes a toggle switch reset actuator for straightforward manual re-engagement and is mounted with a double clip for convenient dismounting, even with comb busbars in place.
The breaker meets multiple international standards - IEC 60898, IEC 60947-2, RoHS, CE, and REACH - assuring compliance and reliability in global applications. Its robust construction allows for twice the standard terminal tightening torque, ensuring secure, vibration-resistant connections in dynamic environments.
Schneider Electric's Acti9 series is engineered for superior circuit and user protection, reducing maintenance times and supporting efficient building management with its fast trip indication system. Typical use cases include commercial and industrial electrical panels, machinery isolation, HVAC supply circuits, and demanding network environments.
Browse more industrial circuit protection and Schneider Electric solutions in the Miniature Circuit Breaker category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has a current rating of 16A, making it suitable for various industrial and commercial applications.
The breaking capacity of this circuit breaker is 4.5kA, providing reliable protection against short circuits.
It utilizes a thermal-magnetic tripping mechanism, ensuring prompt disconnection in fault conditions.
This unit is designed for DIN rail mounting, allowing for easy integration into standard electrical panels.
The dimensions are 85mm in height, 74mm in width, and 85mm in depth, making it compact for modern switchboards.
It features Type C tripping characteristics, which operate effectively between 5 to 10 times the rated current, suitable for high inductive loads.
This circuit breaker complies with IEC 60898, IEC 60947-2, RoHS, and CE standards, ensuring trusted performance.
It features screw terminals that provide stable and secure wiring connections.
This model includes a VisiSafe indicator for circuit isolation and a VisiTrip red window to signal trip status, aiding in troubleshooting.
It has Class-2 insulation, ensuring continuous protection for both operators and unqualified persons.
The Schneider Electric Miniature Circuit Breaker is manufactured in Hungary.
It is suitable for use in commercial and industrial electrical panels, machinery isolation, and HVAC supply circuits.
