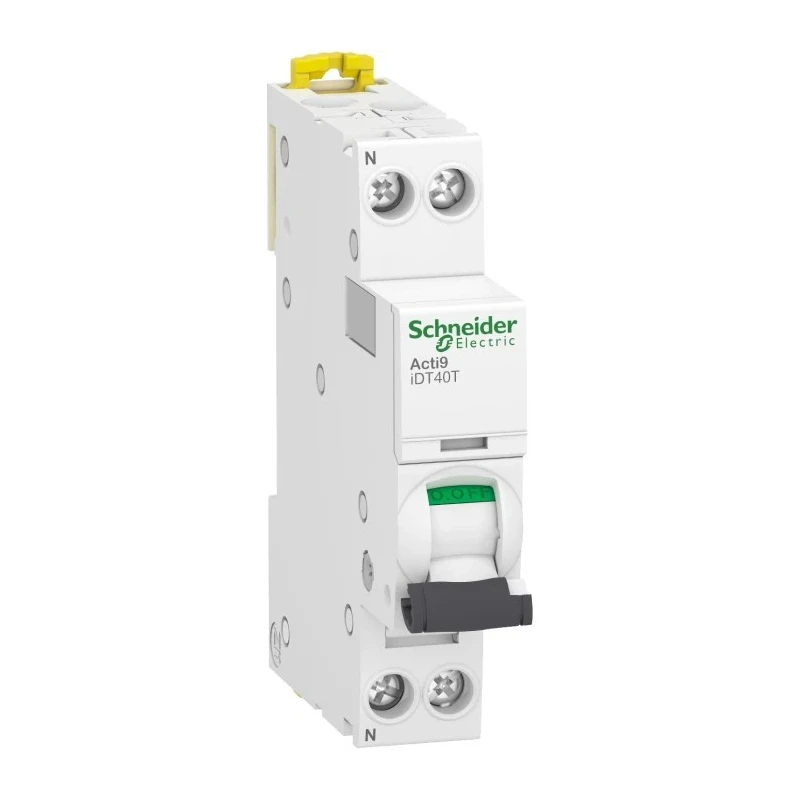

Schneider Electric Acti9 iDT40T Miniature Circuit Breaker 1-Pole 16A Type C 4.5kA DIN Rail A9P22616
Specifications
| Country of Origin | France |
|---|---|
| Range | Acti9 |
| Brand | Schneider Electric |
| Height | 85mm |
| Model | A9P22616 |
| Depth | 85mm |
| IP Rating | IP20 |
| Width | 74mm |
| Mount Type | DIN Rail |
| Current Rating | 16A |
| Series | Acti9 iDT40T |
| Terminal type | Screw |
| Breaking Capacity | 4.5kA |
| Number of Poles | 1 |
| Standards/Approvals | EN IEC 60898-1, RoHS, EN IEC 60947-2, CE, REACH |
| Rated AC Voltage | 230V |
| Tripping Characteristics | Type C |
| Tripping Mechanism | Thermal Magnetic |
| Reset Actuator Type | Toggle Switch |
Key Features
- Features a single-pole design with a current rating of 16A for targeted circuit protection.
- Thermal magnetic tripping mechanism provides both overload and short circuit prevention.
- Type C tripping characteristic ensures strong immunity against nuisance tripping.
- Rated breaking capacity of 4.5kA for enhanced operational safety and reliability.
- Designed for easy DIN rail mounting and equipped with screw terminals for secure wiring.
- Compact IP20 housing suitable for installation in control panels and distribution boards.
- Complies with EN IEC 60898-1, EN IEC 60947-2, CE, and ROHS standards for global acceptance.
Product Description
The Schneider Electric Acti9 iDT40T Miniature Circuit Breaker model A9P22616 offers critical protection for electrical circuits in commercial and industrial settings. This MCB is engineered to disconnect the power supply automatically in presence of short circuit or overload faults, thereby preventing equipment damage and ensuring personnel safety.
With its single-pole configuration and 16A current rating, the breaker is tailored for a wide range of control panels, sub-distribution boards, and machinery circuits. The thermal-magnetic tripping mechanism guarantees reliable intervention for both sustained and instantaneous fault conditions. Type C tripping characteristics make the device ideal for circuits containing moderate inrush currents, such as fluorescent lighting, small motors, and control transformers.
The A9P22616 breaker boasts a robust breaking capacity of 4.5kA, allowing it to handle fault currents without compromise. Secure and easy installation is enabled by DIN rail mountability and screw terminal connections. Its compact enclosure features IP20 ingress protection, making it suitable for indoor control environments and electrical switchboards.
Engineered in compliance with leading international standards like EN IEC 60898-1 and EN IEC 60947-2, and marked with CE and ROHS certifications, this miniature circuit breaker meets the approval requirements for use in diverse global markets. The toggle switch actuator allows for quick manual operation and resetting after a trip.
Key industrial and commercial applications include automation systems, industrial control panels, mechanical equipment, building electrical infrastructure, and process machinery. The Acti9 iDT40T Series by Schneider Electric is recognized for its quality, consistency, and design aimed at uptime and electrical safety.
This product is best suited for environments demanding compliance, durability, and space efficiency, speeding up installation and maintenance tasks. For further exploration of Schneider Electric circuit protection products and Miniature Circuit Breakers, browse related collections in the Miniature Circuit Breaker category on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has a current rating of 16A, designed for targeted circuit protection in various applications.
The A9P22616 has a rated breaking capacity of 4.5kA, allowing it to handle fault currents effectively.
It features Type C tripping characteristics, which provide immunity against nuisance tripping, making it suitable for circuits with moderate inrush currents.
This unit is designed for DIN rail mounting, allowing for easy installation in control panels and distribution boards.
The dimensions of this miniature circuit breaker are 85mm in height, 74mm in width, and 85mm in depth.
It has an IP20 ingress protection rating, making it suitable for indoor use in control environments and electrical switchboards.
The A9P22616 utilizes a thermal magnetic tripping mechanism for reliable intervention during overload and short circuit conditions.
It complies with EN IEC 60898-1, EN IEC 60947-2, and is marked with CE and RoHS certifications for global acceptance.
This unit is equipped with screw terminals for secure wiring connections.
It is suitable for applications in automation systems, industrial control panels, and building electrical infrastructure.
The rated AC voltage for the A9P22616 is 230V, making it compatible with standard electrical systems.
It features a toggle switch as the reset actuator type, allowing for quick manual operation and resetting after a trip.
