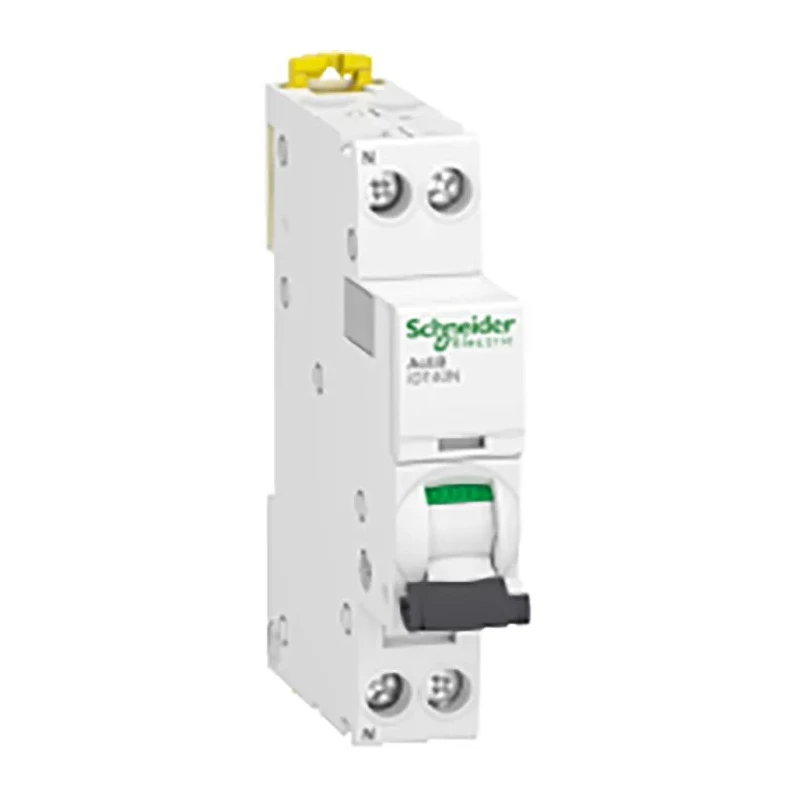

Schneider Electric Acti9 iDT40N Miniature Circuit Breaker 1-Pole 16A Type C 10 kA DIN Rail IP20 Toggle Switch A9P24616
Specifications
| Country of Origin | France |
|---|---|
| Range | Acti9 |
| Brand | Schneider Electric |
| Height | 85mm |
| Model | A9P24616 |
| Depth | 85mm |
| IP Rating | IP20 |
| Width | 74mm |
| Mount Type | DIN Rail |
| Current Rating | 16A |
| Series | Acti9 iDT40N |
| Terminal type | Screw |
| Breaking Capacity | 10kA |
| Number of Poles | 1 |
| Standards/Approvals | REACH, RoHS, EN IEC 60947-2, CE, EN IEC 60898-1 |
| Tripping Characteristics | Type C |
| Tripping Mechanism | Thermal Magnetic |
| Reset Actuator Type | Toggle Switch |
Key Features
- Ensures reliable protection against short circuit and overload currents.
- Single pole configuration with Type C tripping characteristic for versatile electrical applications.
- Designed for DIN rail mounting, offering efficient installation in distribution panels.
- Thermal magnetic tripping mechanism ensures consistent safety.
- Toggle switch actuator allows convenient resetting after trip.
- Robust breaking capacity of 10 kA, suitable for industrial and commercial circuits.
- IP20 rated enclosure protects against finger contact and minor dust ingress.
- Screw terminal design for secure and stable cable connections.
Product Description
Schneider Electric Acti9 iDT40N Miniature Circuit Breaker Model A9P24616 is designed to provide robust and reliable circuit protection for a range of industrial, commercial, and residential applications. This unit operates at a current rating of 16A and features a single-pole configuration that is well-suited for protection of individual circuits.
The circuit breaker employs a Type C tripping characteristic, making it ideal for reactive loads such as small motors and fluorescent lighting. Its thermal magnetic trip mechanism ensures both quick response to short circuits and dependable performance in case of overloads. With a breaking capacity of 10 kA, the A9P24616 offers generous protection in installations where high fault levels may occur.
Installation is straightforward thanks to the DIN rail mounting system, which is standard in modern distribution boards. The toggle switch actuator allows for fast resetting and easy manual operation, while the screw terminal design ensures solid and durable cable connections. The IP20 enclosure rating provides protection against accidental finger contact and limited dust, contributing to operator safety.
Physical dimensions are 74 mm wide, 85 mm high, and 85 mm deep, enabling compatibility with compact panels and easy integration in electrical cabinets. The unit supports both TN and IT neutral systems and complies with REACH, RoHS, EN IEC 60947-2, CE, and EN IEC 60898-1 standards, highlighting its suitability for demanding environments.
Typical use cases include distribution panel circuit protection in facilities such as factories, office complexes, laboratories, HVAC setups, and commercial spaces. The Acti9 iDT40N series is renowned for its reliability, with features such as a Visisafe green indicator and VisiTrip red window for quick fault diagnosis and troubleshooting.
Explore more in Miniature Circuit Breakers and Schneider Electric solutions at EnvMart for high-quality electrical protection and distribution products.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has a current rating of 16A, suitable for protecting individual circuits.
It features a robust breaking capacity of 10 kA, making it suitable for installations with high fault levels.
The physical dimensions are 74 mm wide, 85 mm high, and 85 mm deep, allowing for compatibility with compact panels.
It employs a thermal magnetic tripping mechanism, which provides a quick response to short circuits and reliable performance during overloads.
It is designed for DIN rail mounting, which facilitates efficient installation in distribution panels.
The enclosure has an IP20 rating, providing protection against accidental finger contact and limited dust ingress.
This model features a Type C tripping characteristic, making it suitable for reactive loads like small motors and fluorescent lighting.
It has a screw terminal design, ensuring secure and stable cable connections.
It complies with several standards including REACH, RoHS, EN IEC 60947-2, CE, and EN IEC 60898-1, indicating its suitability for demanding environments.
The reset actuator is a toggle switch, allowing for convenient resetting after a trip.
It is commonly used for circuit protection in distribution panels across various facilities such as factories, office complexes, laboratories, and commercial spaces.
This model is part of the Acti9 series, known for its reliable circuit protection solutions.
