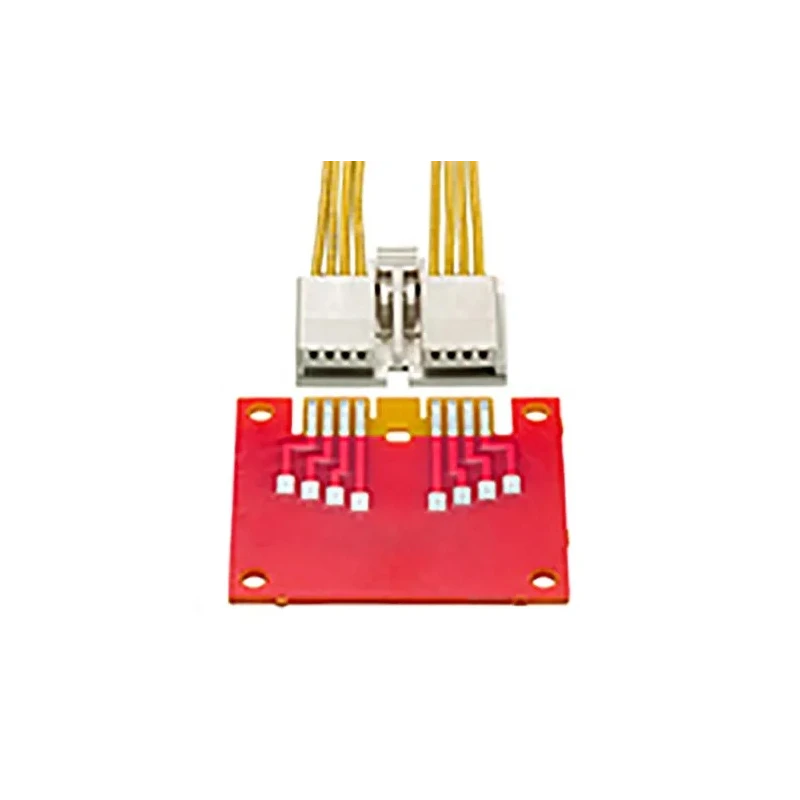

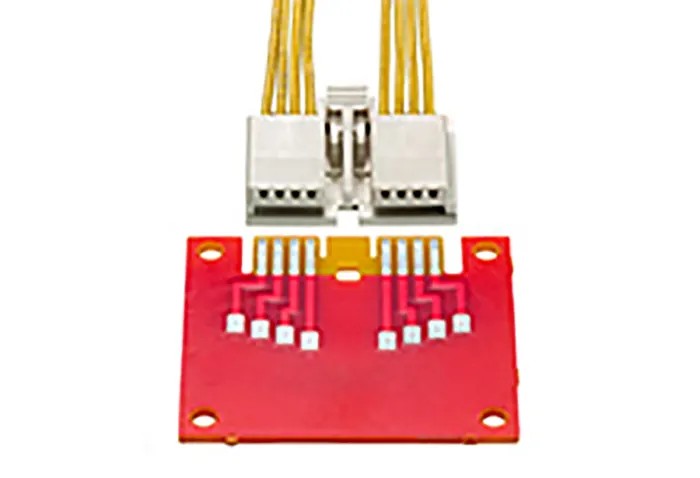

Molex 200890 Series Right Angle Edge Connector, Straddle Mount, 6-Contacts, 2 mm Pitch, 1 Row, Crimp 200890-0106
Specifications
| Country of Origin | Korea |
|---|---|
| Voltage | 125V |
| Brand | Molex |
| Orientation | Right Angle |
| Current | 3A |
| Mount Type | Straddle Mount |
| Housing Material | Nylon |
| Series | 200890 |
| Termination Type | Crimp |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -40°C |
| Number of Rows | 1 |
| Pitch | 2mm |
| Standards/Approvals | RoHS |
| Number of Contacts | 6 |
| Contact Gender | Female |
| Card Type | Edge |
Key Features
- This edge connector supports a current rating of 3A and voltage rating of 125V.
- It is constructed with a nylon housing material offering durability and insulation.
- Operating temperature ranges from -40°C to 105°C for broad environmental tolerance.
- The connector is RoHS compliant ensuring environmentally safe manufacturing.
- It is designed for 1.20 mm to 1.60 mm PCB thickness compatibility and wire sizes of 22-24 AWG UL 1061 and 24 AWG UL1007/1569 style.
- Provides positive locking for secure mating to PCB edge cards and easy release with a latch.
- Suitable for direct mating to PCB edge cards, reducing assembly steps and space requirements.
Product Description
Molex 200890-0106 is a high-quality right angle edge connector from the 200890 Series designed for electronic and power connectors applications. Featuring a straddle mount and 6 female contacts, this connector has a 2 mm pitch in a single row layout, optimized for crimp termination.
This connector supports a current of 3A and voltage up to 125V, making it suitable for various industrial and commercial electronic assemblies. The nylon housing material provides excellent electrical insulation and mechanical strength, withstanding operating temperatures ranging from -40°C to 105°C, ensuring reliable performance in harsh environments.
The connector is RoHS compliant, ensuring it is environmentally friendly and free of hazardous substances. It is engineered to fit PCBs with thicknesses of 1.20 mm to 1.60 mm and accepts wires sized 22-24 AWG UL 1061 and 24 AWG UL1007/1569 styles, facilitating diverse wiring applications.
EdgeLock wire connectors offer significant space savings and a positive locking mechanism for secure engagement with PCB edge cards. This design eliminates the need for soldering headers to PCBs, reducing assembly complexity and providing easy disassembly through a latch system for maintenance or rework.
Typical applications include use in industrial electronics, communication devices, and power management systems where secure and reliable PCB connections are critical. This product is manufactured in Korea, Republic Of, underscoring high manufacturing standards.
This Edge Connector supports a current rating of 3A and voltage rating of 125V. Constructed with durable nylon housing for electrical insulation and mechanical robustness. RoHS compliant ensuring adherence to environmental regulations.
Operating temperature range from -40°C to 105°C for wide application environments. Provides secure positive locking and easy latching for assembly and maintenance. Connector accepts wire sizes 22-24 AWG UL 1061 and 24 AWG UL1007/1569 style.
Fits PCB thickness of 1.20 mm to 1.60 mm as a standard edge card connector. Explore the Electronics & Electricals category on EnvMart for more connectors and components to suit your industrial and manufacturing needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It supports a current rating of 3A and a voltage rating of 125V.
The operating temperature range is from -40°C to 105°C, allowing for broad environmental tolerance.
It is designed for PCB thicknesses ranging from 1.20 mm to 1.60 mm.
This model accepts wire sizes of 22-24 AWG UL 1061 and 24 AWG UL1007/1569 style.
The housing is constructed from nylon, providing electrical insulation and mechanical strength.
It features 6 female contacts in a single row layout.
The pitch of this model is 2 mm.
Yes, it is RoHS compliant, ensuring it meets environmental safety regulations.
This connector utilizes a crimp termination type.
It features a straddle mount design, which allows for direct mating to PCB edge cards.
It is suitable for industrial electronics, communication devices, and power management systems.
This product is manufactured in the Republic of Korea.
