Nexperia Schmitt Trigger Input CMOS Inverter 2 Elements 6-Pin TSOP 1.65-5.5V 74LVC2G14GV,125

Nexperia 74LVC2G14GV,125 is a Schmitt Trigger input CMOS Inverter IC featuring two elements in a compact 6-pin TSOP package. Operating over a wide voltage range from 1.65 V to 5.5 V, it facilitates signal conditioning by converting slowly changing input signals into sharply defined, jitter-free output signals. This makes it highly suitable for mixed voltage environments including both 3.3 V and 5 V logic systems.

The device is engineered to provide high noise immunity via Schmitt-trigger inputs which tolerate slower input rise and fall times, preventing multiple switching and ensuring signal integrity in complex electronic layouts. Its maximum propagation delay time of 7.7 ns supports fast signal processing and switching.

This CMOS inverter provides a maximum high-level output current of -32 mA and a maximum low-level output current of 32 mA, allowing reliable driving capability. It operates reliably in industrial and commercial applications across a temperature range from -40°C to 125°C, making it ideal for harsh environments.

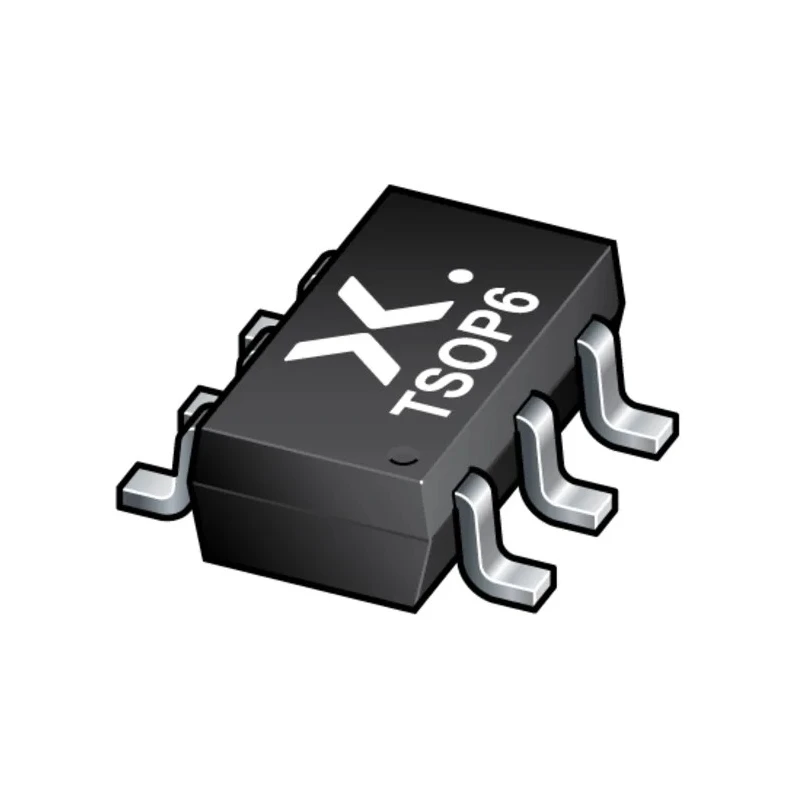

Its surface mount TSOP package measures 3.1 mm length, 1.7 mm width, and 1 mm height, providing a compact footprint for densely populated PCBs. The device supports partial power-down functionality compliant with IOFF specifications, reducing power consumption during inactive states.

Key applications include signal reshaping, noise reduction, sine wave to square wave conversion, interfacing analog and digital signals, and relaxation oscillators. It is widely used in industrial automation, embedded systems, and electronic instrumentation.

Contains two inverting buffers with Schmitt-trigger input for stable switching. Operates over a wide voltage range of 1.65 V to 5.5 V supporting 3.3 V and 5 V systems. High noise immunity through input hysteresis ensures clean signal transitions.

Compact 6-pin TSOP surface mount package with small dimensions. Designed to prevent multiple switching caused by slow input signal edges. Has a maximum propagation delay time of 7.7 ns for fast response. Capable of driving output currents of ±32 mA for reliable signal output.

Wide operating temperature range from -40°C to 125°C suited for industrial use. Supports partial power-down mode with IOFF to save power. Manufactured in Malaysia ensuring high quality and consistency. Explore the comprehensive range of Logic ICs at EnvMart for robust electronic component solutions.
