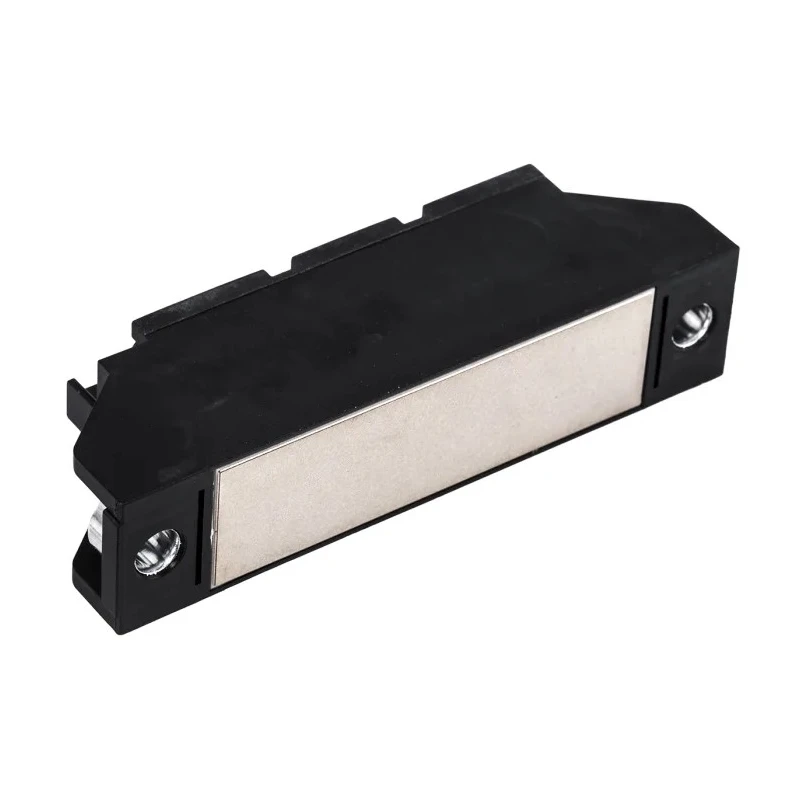

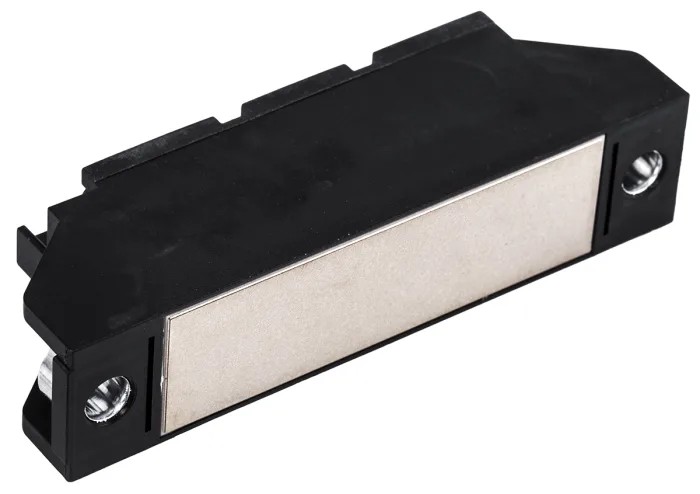

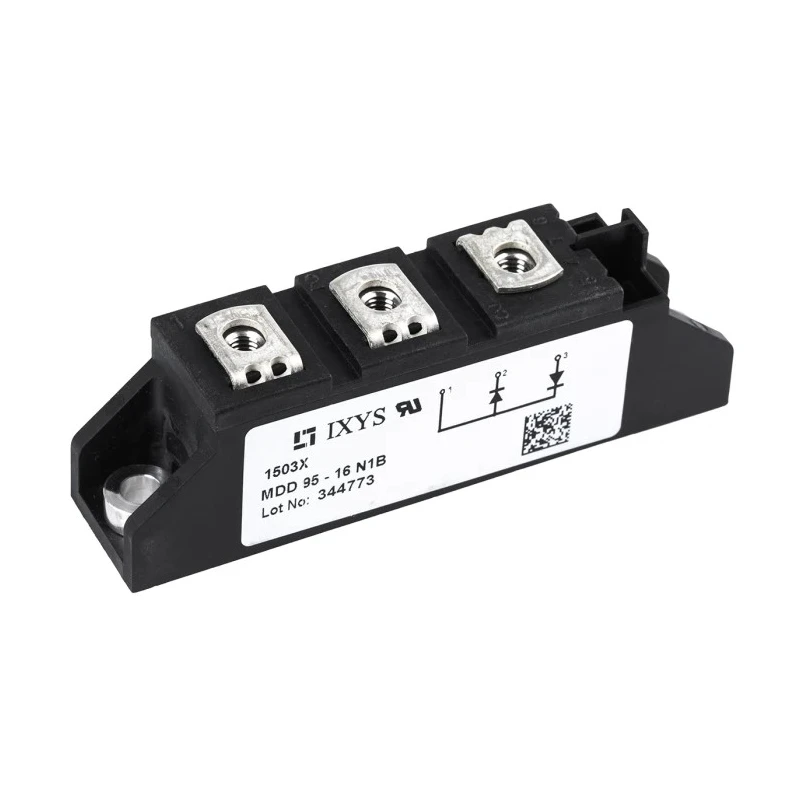

IXYS General Purpose 1600 V 120 A Diode 3-Pin TO-240 MDD95-16N1B
Specifications
| Country of Origin | Philippines |
|---|---|
| Brand | IXYS |
| Height | 30mm |
| Length | 92mm |
| Model | MDD95-16N1B |
| Width | 20.8mm |
| Mount Type | Panel |
| Series | MDD95 |
| Maximum Operating Temperature | 150°C |
| Package Type | TO-240 |
| Minimum Operating Temperature | -40°C |
| Pin Count | 3 |
| Maximum Continuous Forward Current If | 120A |
| Peak Reverse Repetitive Voltage Vrrm | 1600V |
| Diode Configuration | Series |
| Rectifier Type | General Purpose |
| Peak Reverse Current Ir | 15mA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 3.03kA |
| Maximum Forward Voltage Vf | 1.43V |
| IXYS 1600 V 95 A Diode General Purpose 3-Pin TO-240 MDD56-16N1BBrand | IXYS |
Key Features
- Compact TO-240 package with three pins ensures easy mounting.
- High peak non-repetitive forward surge current of 3.03 kA enables robust performance.
- Wide operating temperature range from -40°C to 150°C for versatile applications.
- Maximum forward voltage of 1.43 V minimizes power loss during conduction.
- Designed for general-purpose rectifier applications requiring series diode configuration.
- Peak reverse current limited to 15 mA to reduce leakage.
- Manufactured in the Philippines ensuring quality control and reliability.
Product Description
The IXYS MDD95-16N1B is a general-purpose diode designed to handle a maximum continuous forward current of 120 A and a peak reverse repetitive voltage of 1600 V. Featuring a durable 3-pin TO-240 panel-mount package, this diode is ideal for power rectification tasks in industrial, electronic, and power supply applications.
This diode's robust specifications make it suitable for environments with demanding temperature ranges, capable of operating safely between -40°C and 150°C. Its peak non-repetitive forward surge current of 3.03 kA ensures tolerance against transient overloads.
The maximum forward voltage of 1.43 V contributes to efficiency by reducing conduction losses. Its low peak reverse current of 15 mA limits leakage, improving device reliability and lifespan. The series diode configuration aligns with its general-purpose rectifier role.
Measuring 92 mm in length, 20.8 mm in width, and 30 mm in height, the MDD95-16N1B diode offers a compact form factor suitable for integration within power modules and assemblies. It is UL recognized, assuring compliance with quality and safety norms.
Compact TO-240 package with three pins ensures easy mounting. High peak non-repetitive forward surge current of 3.03 kA enables robust performance. Wide operating temperature range from -40°C to 150°C. Maximum forward voltage of 1.43 V minimizes power loss.
Series diode configuration suitable for general-purpose rectification. Peak repetitive reverse voltage rating of 1600 V. Low peak reverse current of 15 mA reduces leakage. Manufactured in Philippines ensuring reliable quality.
This IXYS diode is well suited for industrial electronics, power management, motor drives, and other electrical engineering fields. For more semiconductor products and details, explore the Electronics & Electricals category on EnvMart.
Explore more products in our Schottky Diodes & Rectifiers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current of the IXYS MDD95-16N1B diode is 120 A.
This model has a peak reverse repetitive voltage rating of 1600 V.
The diode operates within a temperature range of -40°C to 150°C.
The maximum forward voltage of this diode is 1.43 V.
It has a peak non-repetitive forward surge current of 3.03 kA.
The MDD95-16N1B comes in a TO-240 package type with a 3-pin configuration.
The peak reverse current is limited to 15 mA.
The diode measures 92 mm in length, 20.8 mm in width, and 30 mm in height.
It is designed for general-purpose rectifier applications, particularly in power rectification tasks.
This diode is manufactured in the Philippines.
The diode configuration for the MDD95-16N1B is series.
Yes, the MDD95-16N1B is UL recognized, ensuring compliance with quality and safety norms.
