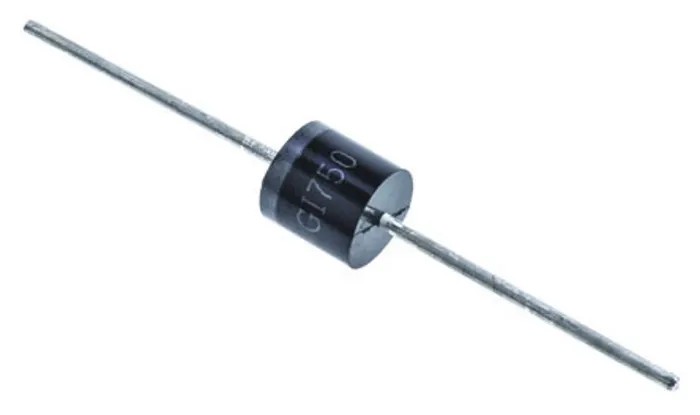

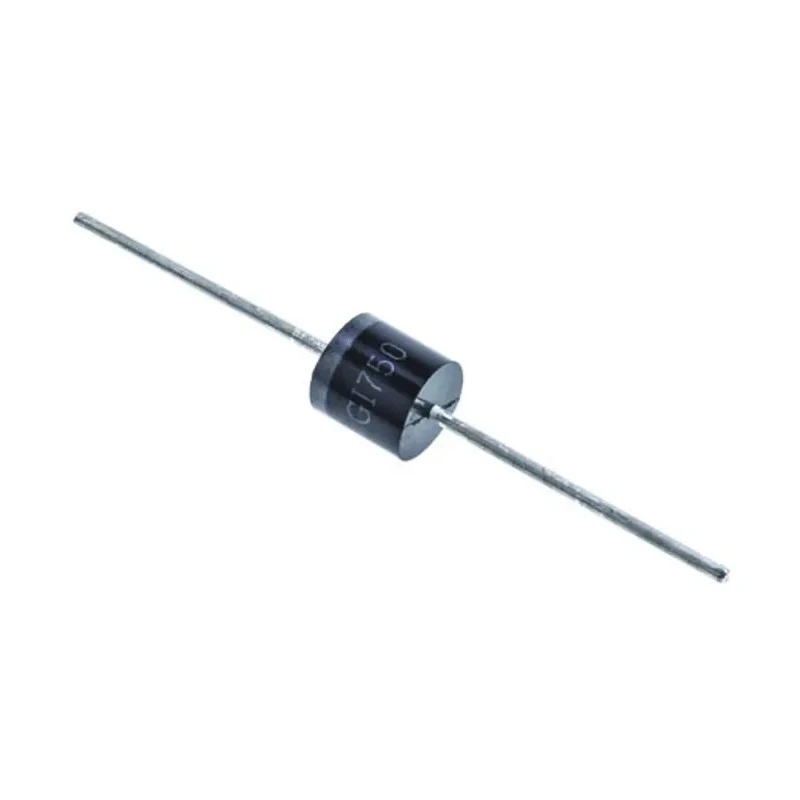

Littelfuse 1-Element Bi-Directional TVS Diode 30 kW Peak Pulse Power 2-Pin P600 30KPA75CA
Specifications
| Country of Origin | China |
|---|---|
| Diameter | 9.1mm |
| Brand | Littelfuse |
| Length | 9.1mm |
| Model | 30KPA75CA |
| Mount Type | Through Hole |
| Series | 30KPA |
| Maximum Operating Temperature | 175°C |
| Package Type | P600 |
| Minimum Operating Temperature | -55°C |
| Pin Count | 2 |
| Number of Elements per Chip | 1 |
| Clamping Voltage VC | 119.4V |
| Diode Configuration | Single |
| Direction Type | Bi-Directional |
| Minimum Breakdown Voltage Vbr | 83.8V |
| Maximum Reverse Stand-off Voltage Vwm | 75V |
| Peak Pulse Power Dissipation Pppm | 30kW |
| Test Current It | 5mA |
| Maximum Peak Pulse Current Ippm | 253.8A |
| Maximum Reverse Leakage Current | 2μA |
| Fast response time | typically less than 1.0ps from 0 Volts to BV min |
Key Features
- Designed to protect electronic equipment from voltage transients caused by lightning and other surges.
- Bi-directional diode with a single element and single chip construction.
- Minimum breakdown voltage of 83.8 V and maximum reverse stand-off voltage of 75 V.
- Fast response time typically less than 1.0 picosecond from 0 Volts to minimum breakdown voltage.
- Capable of handling a peak pulse current of up to 253.8 A with excellent clamping capability.
- High temperature soldering guaranteed at 265°C for 10 seconds with 9.5 mm lead length.
- Glass passivated chip junction offering reliable performance in harsh environments.
- Maximum operating temperature of 175°C and minimum operating temperature down to -55°C.
Product Description
Littelfuse 30KPA75CA is a 1-element bi-directional transient voltage suppression (TVS) diode designed to protect sensitive electronic components from damaging transient voltage spikes induced by lightning, switching, and other transient events. It offers a high peak pulse power dissipation of 30 kW allowing it to absorb and clamp harmful surges efficiently, ensuring device longevity and reliability.
The diode features a bi-directional configuration with a single element on a glass passivated chip junction enclosed in a durable P600 package. Its minimum breakdown voltage is 83.8 V, with a maximum reverse stand-off voltage of 75 V, ideal for use in circuits requiring robust voltage transient protection.
This component is through-hole mount type with 2 pins, 9.1 mm length, and 9.1 mm diameter allowing ease of integration and soldering. The device supports high temperature soldering at 265°C for 10 seconds, enabling manufacturing flexibility without damage. Matte tin lead-free plating contributes to eco-friendliness and corrosion resistance.
Other key features include extremely fast response time typically less than 1.0 picosecond from 0 V to breakdown voltage, peak pulse current capacity of 253.8 A, low incremental surge resistance, and stable operation from -55°C to 175°C, making it suitable for a variety of harsh operating conditions and industrial applications.
The 30KPA75CA TVS diode is halogen-free, providing an environmentally conscious choice for electronics protection in industrial, power supply, communication, automotive, and consumer electronics.
Protects sensitive electronics against voltage transients and surges. High peak pulse power rating of 30 kW handles large transient events. Fast response time to clamp voltage spikes rapidly. Through-hole mounting with 2 pins for secure installation.
High temperature soldering allowance for manufacturing flexibility. Halogen-free and lead-free construction for environmental compliance. Wide operating temperature range suitable for harsh conditions. Low leakage current to minimize power loss during normal operation.
Long-lasting and reliable glass passivated chip junction technology.
This Littelfuse TVS Diode series offers a robust solution for protecting electronics in industrial, laboratory, construction, HVAC, manufacturing, water treatment, commercial, and automotive systems. For more products in the semiconductor diode category, please explore EnvMart’s extensive catalog.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Littelfuse 30KPA75CA has a peak pulse power dissipation of 30 kW, allowing it to effectively absorb and clamp harmful voltage transients.
The minimum breakdown voltage of the 30KPA75CA is 83.8 V, which is crucial for its operation in protecting sensitive electronics.
The maximum reverse stand-off voltage for this model is 75 V, making it suitable for various electronic applications requiring transient voltage protection.
This TVS diode can operate at a maximum temperature of 175°C, which allows it to function in harsh environments.
The Littelfuse 30KPA75CA features a fast response time, typically less than 1.0 picosecond from 0 Volts to minimum breakdown voltage.
The maximum peak pulse current capacity of the 30KPA75CA is 253.8 A, allowing it to handle significant transient events.
This model supports through-hole mounting with 2 pins, facilitating secure installation in various electronic circuits.
The diode has a length and diameter of 9.1 mm, which is standard for many through-hole components.
The clamping voltage (VC) of the 30KPA75CA is 119.4 V, which is important for its clamping capability during transient events.
The minimum operating temperature for the 30KPA75CA is -55°C, enabling its use in a wide range of environmental conditions.
The 30KPA75CA features a glass passivated chip junction, which offers reliable performance in harsh environments.
Yes, the 30KPA75CA is halogen-free and lead-free, contributing to its eco-friendliness and compliance with environmental standards.
