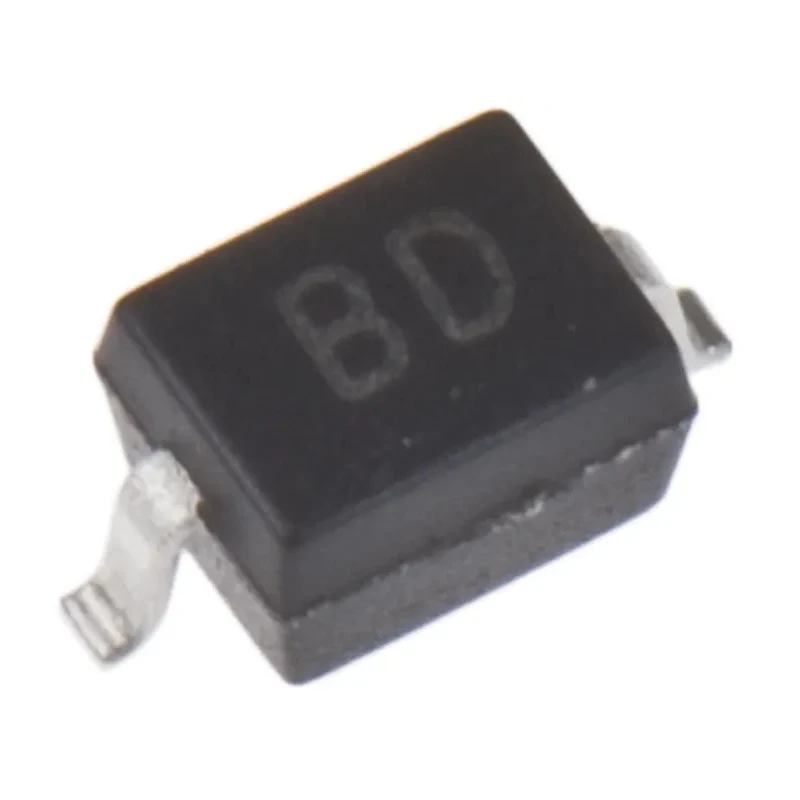

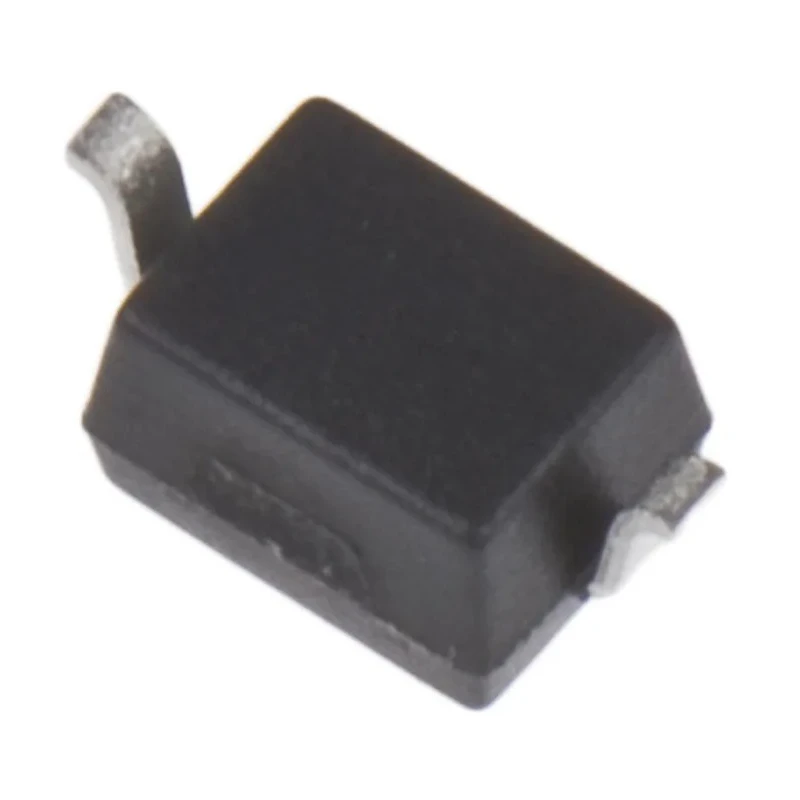

DiodesZetex 40 V 1 A Surface Mount Schottky Diode 2-Pin SOD-323 ZHCS400TA

Free Delivery in India | Lowest Global Shipping Charges

DiodesZetex 40 V 1 A Surface Mount Schottky Diode 2-Pin SOD-323 ZHCS400TA

Name: DiodesZetex 40 V 1 A Surface Mount Schottky Diode 2-Pin SOD-323 ZHCS400TA
Brand: DiodesZetex
SKU: 145193
Price: 20.22 USD
Availability: InStock



Category Schottky Diodes & Rectifiers Brand DiodesZetex Condition New

Specifications

Country of Origin	China
Brand	DiodesZetex
Height	1.05mm
Length	1.8mm
Model	ZHCS400TA
Width	1.45mm
Mount Type	Surface
Series	ZHCS400X
Maximum Operating Temperature	150°C
Package Type	SOD-323
Minimum Operating Temperature	-55°C
Standards/Approvals	FBI
Pin Count	2
Automotive Standard	AEC-Q101
Maximum Continuous Forward Current If	1A
Peak Reverse Repetitive Voltage Vrrm	40V
Diode Configuration	Single
Rectifier Type	Schottky
Peak Reverse Current Ir	40μA
Peak Non-Repetitive Forward Surge Current Ifsm	6.75A
Maximum Forward Voltage Vf	500mV

Key Features

This diode is designed for surface mount applications in compact SOD-323 package.
It features low forward voltage drop of 500 mV for high efficiency.
Operating temperature ranges from -55°C to 150°C for robust thermal performance.
Peak non-repetitive forward surge current of 6.75 A ensures high transient survivability.
Complies with automotive standard AEC-Q101 for reliable automotive use.
Pin count of 2, facilitating straightforward PCB layout.
Peak reverse current of 40 μA minimizes leakage in reverse bias.
Rectifier type is Schottky, suitable for fast switching applications.

Product Description

DiodesZetex ZHCS400TA is a high-performance Schottky diode designed for surface mount technology applications. Featuring a compact 2-pin SOD-323 package, this device supports a maximum continuous forward current of 1 A and a peak reverse repetitive voltage of 40 V. Its low forward voltage drop of 500 mV contributes to efficient power management and reduced heat dissipation during operation.

With an operating temperature range spanning from -55°C to 150°C, this diode ensures reliable performance in demanding industrial, automotive, and electronic systems. It also supports a peak non-repetitive forward surge current of 6.75 A, making it resilient to transient surges and spikes often encountered in power electronics.

The ZHCS400TA meets the automotive quality standard AEC-Q101, underscoring its suitability for automotive and high-reliability applications. Its compact dimensions - height of 1.05 mm, length of 1.8 mm, and width of 1.45 mm - facilitate space-saving PCB designs, especially in densely packed electronic assemblies.

Typical industrial applications include power supply designs, voltage clamping, RF systems, and DC/DC converter circuits where fast switching and low power loss are critical. This diode's 2-pin configuration and Schottky barrier technology also make it an excellent choice for energy-efficient rectification tasks in commercial, laboratory, and manufacturing environments.

This diode is designed for surface mount applications in compact SOD-323 package. It features low forward voltage drop of 500 mV for high efficiency. Operating temperature ranges from -55°C to 150°C for robust thermal performance.

Peak non-repetitive forward surge current of 6.75 A ensures high transient survivability. Complies with automotive standard AEC-Q101 for reliable automotive use. Pin count of 2, facilitating straightforward PCB layout. Height 1.05 mm, length 1.8 mm, and width 1.45 mm provide a compact footprint.

Peak reverse current of 40 μA minimizes leakage in reverse bias. Rectifier type is Schottky, suitable for fast switching applications. Country of origin is China. Explore more Schottky diodes and rectifiers at EnvMart to find the perfect component for your semiconductor and power management projects.
