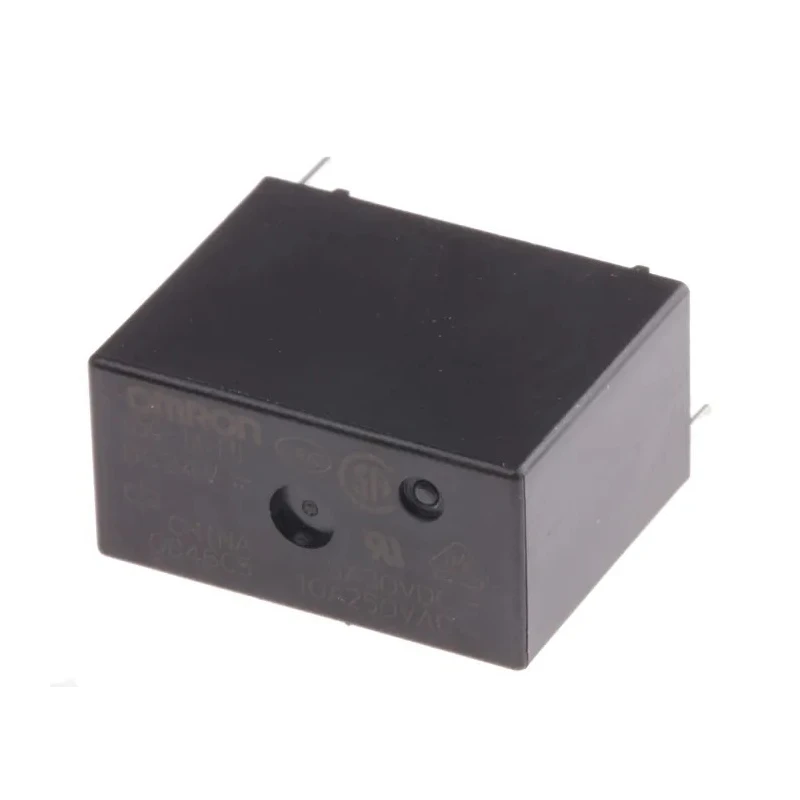

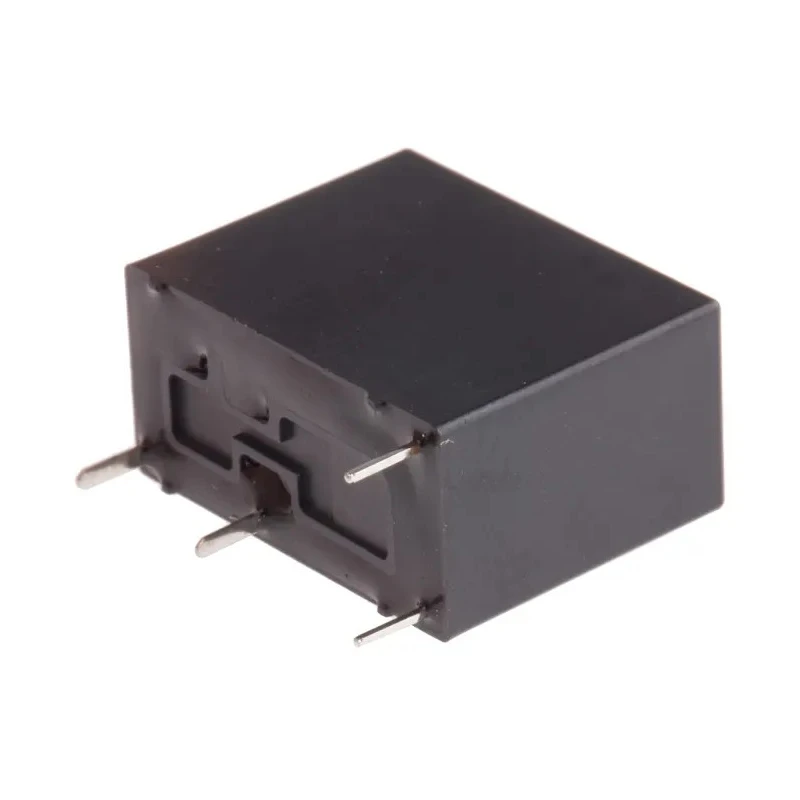

Omron Panel Power Relay 24V dc Coil 10A Switching Current SPST G5Q-1A-EU DC24 (TY)

The Omron G5Q-1A-EU DC24 (TY) Panel Power Relay offers a reliable and compact solution for electrical switching in industrial and commercial applications. Designed for panel mount with through-hole terminal connections, this relay supports a coil voltage of 24V DC coupled with a switching current of 10A, making it suitable for controlling moderate power loads.

Its single pole single throw (SPST) contact configuration provides straightforward switching functionality, while the silver alloy contacts ensure longevity and low resistance under switching loads. The relay is engineered with a coil resistance of 2.9kΩ and consumes just 200mW coil power, optimizing efficiency for control circuits.

With a robust switching AC voltage rating up to 400V AC and switching power capacity of 2.5 kVA, this relay can handle demanding electrical environments. It accommodates a wide operating temperature range from -40°C to 85°C, making it resilient against harsh environmental conditions.

The G5Q-EU series benefits from high isolation between coil and contacts, capable of withstanding impulse voltages up to 8,000V. Its tracking resistance rating (CTI > 250) further enhances insulation properties, reducing risk of electrical tracking and breakdown.

Certified by CE, UL, RoHS, IEC, and EN standards, the relay ensures international quality and performance compliance. This makes it an excellent choice for HVAC systems, industrial automation, and electrical control panels where precise and robust relay performance is required.

Single Pole Single Throw (SPST) contact configuration ensures precise switching. Compact panel mount design with through-hole terminals for easy installation. Low coil power consumption at 200mW with coil resistance of 2.9kΩ.

Capable of switching up to 10 A current and 400 V AC voltage. Silver alloy contacts provide durability and reliable conduction. Operates reliably between -40°C and 85°C temperature range. High isolation with impulse voltage withstand of 8,000 V between coil and contacts.

Tracking resistance with Comparative Tracking Index (CTI) > 250 to resist electrical tracking. Complies with CE, UL, RoHS, IEC, and EN safety standards. Ideal for HVAC, industrial automation, and panel control applications.
