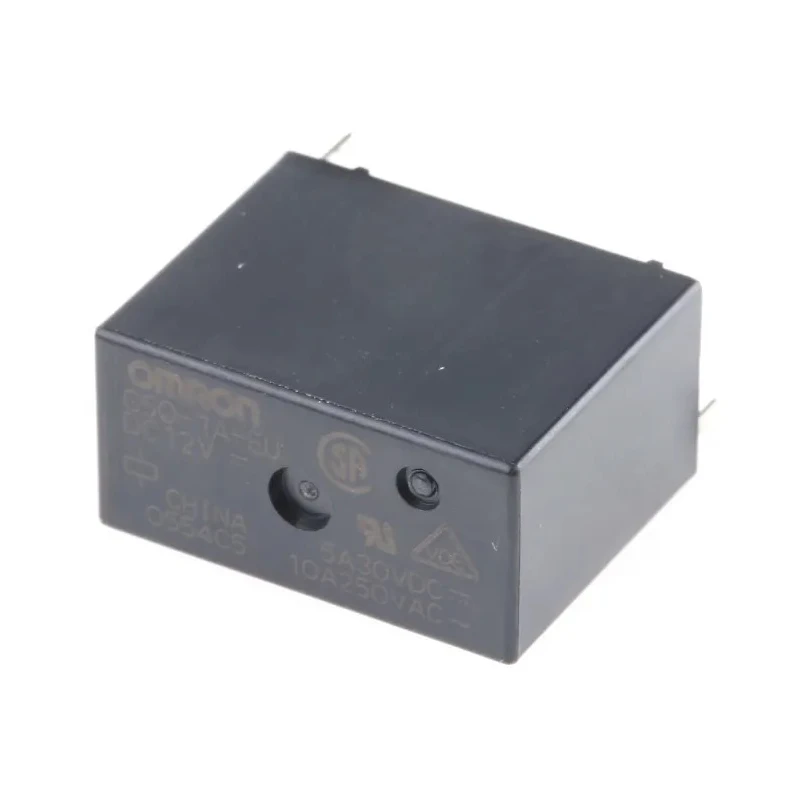

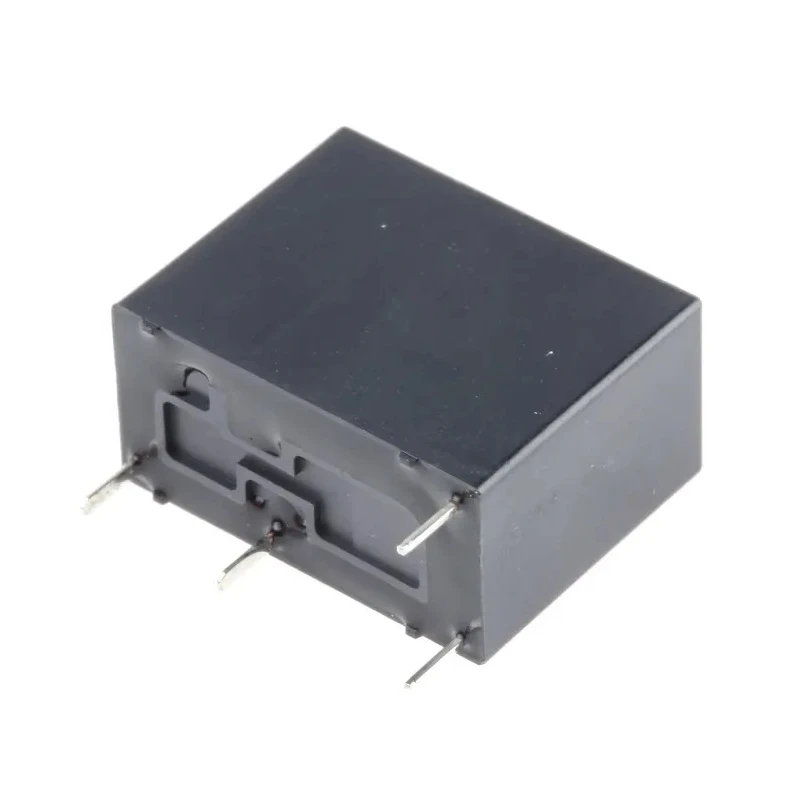

Omron Panel Power Relay 12V DC Coil 10A Switching Current SPST G5Q-1A-EU DC12 (TY)

Omron G5Q-1A-EU DC12 (TY) panel power relay is a compact, high-performance relay designed for industrial, HVAC, electrical control, and automation applications.

It features a 12V DC coil voltage and supports a switching current of 10 amperes with a single pole single throw (SPST) contact arrangement. This relay is panel mountable with through-hole terminals providing secure and reliable mounting within electrical panels.

The coil resistance is 720 ohms, drawing low coil power consumption of 200 milliwatts, making it energy efficient. Its operational temperature range from -40°C to 85°C ensures stable function even in challenging environmental conditions. The relay's physical dimensions (20.3 x 10.3 x 16.2 mm) are designed for space-saving integration.

Contacts made of a silver alloy provide excellent electrical conductivity and durability, suitable for switching AC voltages up to 400V, and switching power capacity of 2.5 kVA, making it suitable for a broad range of power relay tasks.

The relay is built with high isolation between coil and contacts, capable of withstanding impulse voltages of up to 8,000V, enhancing system safety and reliability. It complies with international standards including CE, EN, IEC, RoHS, and UL, ensuring quality and environmental compliance.

This Omron panel power relay is widely applicable in industrial automation, control panels, HVAC systems, and electrical switching tasks requiring a reliable and efficient relay solution.

This relay features a single pole single throw (SPST) contact configuration. Designed for panel mounting with through-hole terminal type for ease of installation. The coil resistance of 720 ohms ensures low power consumption of 200mW.

Operating temperature ranges from -40°C to 85°C supporting reliable performance. Compact dimensions: length 20.3 mm, width 10.3 mm, height 16.2 mm optimize space efficiency. Contacts are made from silver alloy, offering durability and excellent conductivity.

With a switching AC voltage rating of 400V and switching power up to 2.5 kVA. Complies with CE, EN, IEC, RoHS, and UL standards for safety and quality assurance. High isolation between coil and contacts withstands impulse voltage of 8,000V.
