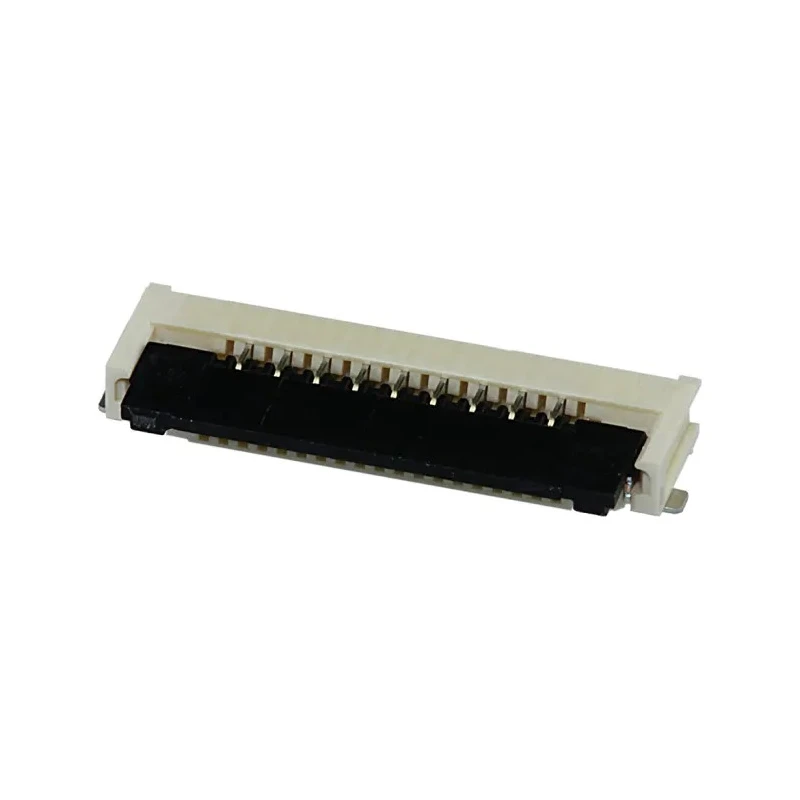

Molex 1 mm Pitch 9 Way Right Angle Male FPC Connector Surface Mount 500mA 50V 200528-0090
Specifications
| Country of Origin | Japan |
|---|---|
| Voltage | 50, 50V ac |
| Brand | Molex |
| Orientation | Right Angle |
| Current | 500mA |
| Mount Type | Surface |
| Housing Material | Liquid Crystal Polymer |
| Contact Material | Phosphor Bronze |
| Series | 200528 |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Sub Type | Easy-On FFC/FPC Connector |
| Minimum Operating Temperature | -40°C |
| Number of Rows | 1 |
| Pitch | 1mm |
| Contact Plating | Gold over Nickel |
| Number of Contacts | 9 |
| Contact Gender | Male |
| Connector Gender | Male |
| Insertion Force | ZIF |
| Contact Position | Bottom |
Key Features
- Features a right angle male design for space-saving PCB layouts.
- 1 mm pitch ensures compatibility with various FPC and FFC components.
- Gold plating over nickel contacts provides excellent conductivity.
- Liquid crystal polymer housing offers durability and high-temperature resistance.
- Supports current up to 500 mA and voltage up to 50 V AC.
- Insertion force is Zero Insertion Force (ZIF) for easy assembly.
- Operates reliably from -40°C to a maximum of 105°C.
- Locking mechanism ensures secure and stable connections.
Product Description
Molex 200528-0090 is a high-quality 9-contact Right Angle Male FPC Connector with 1 mm pitch, designed for surface mount technology. It supports a current rating of 500 mA and voltage rating of 50 V AC, offering reliable connectivity for electronic devices.
The connector features a gold plating over nickel contacts to ensure superb electrical conductivity and corrosion resistance. The housing is made from liquid crystal polymer, providing excellent durability and resistance to high temperatures up to 105°C, making it suitable for demanding environments.
This Easy-On Series connector incorporates a Zero Insertion Force (ZIF) mechanism to facilitate easy installation and removal without damaging contacts. Its compact right angle design allows efficient space utilization on PCBs.
Applications include automotive infotainment systems, display audio devices, car navigation units, consumer flat panel TVs, and personal navigation equipment. The 1 mm pitch allows compatibility with a wide range of FPC and FFC components used in these sectors.
Right angle male design enables installation in confined spaces. Surface mount technology optimizes PCB assembly processes. Gold plated contacts enhance conductivity and protection against wear. Durable liquid crystal polymer housing sustains high temperature and mechanical stresses.
Locking mechanism secures cable connections for stable operation. Supports continuous operation from -40°C up to 105°C. This product is manufactured in Japan and adheres to strict quality standards, serving industries requiring durable, efficient, and precise electronic interconnections.
Explore more high-quality connectors and electronic components on EnvMart to enhance your industrial and commercial projects.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports a current rating of 500 mA and a voltage rating of 50 V AC.
The connector features a pitch of 1 mm, ensuring compatibility with various FPC and FFC components.
It is designed for surface mounting, optimizing PCB assembly processes.
The housing is made from liquid crystal polymer, while the contacts are phosphor bronze with gold over nickel plating for enhanced conductivity.
It operates reliably within a temperature range of -40°C to a maximum of 105°C.
This connector has a total of 9 contacts arranged in a single row.
It features a Zero Insertion Force (ZIF) mechanism, allowing for easy installation and removal without damaging the contacts.
It is suitable for applications in automotive infotainment systems, display audio devices, car navigation units, consumer flat panel TVs, and personal navigation equipment.
This model has a right angle orientation, which facilitates installation in confined spaces.
It is manufactured in Japan, adhering to strict quality standards.
The connector uses a solder termination type.
This connector is part of the Easy-On series, specifically designed for FFC/FPC connections.
