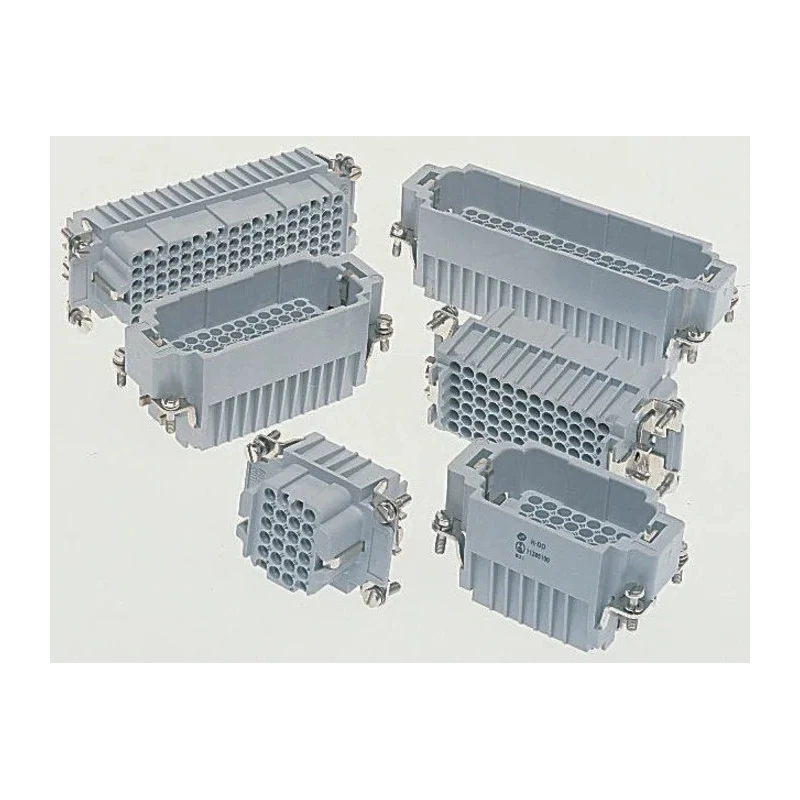

EPIC Heavy Duty Power Connector Insert 8.5A 600V Cable Mount Male 72 Contacts H-DD Series 11285200

Name: EPIC Heavy Duty Power Connector Insert 8.5A 600V Cable Mount Male 72 Contacts H-DD Series 11285200
Brand: EPIC
SKU: 118528
Price: 20.67 USD
Availability: InStock



Category Heavy Duty Power Connector Insert Brand EPIC Condition New

Specifications

Country of Origin	Germany
Voltage	600V
Brand	EPIC
Orientation	Straight
Model	11285200
IP Rating	IP65
Mount Type	Cable
Contact Material	Copper Alloy
Current Rating	8.5A
Series	H-DD
Sub Type	Connector
Number of Rows	4
For Use With	Heavy Duty Power Connector
Pole Format	72+E
Contact Plating	Silver
Number of Contacts	72
Connector Gender	Male
Minimum Wire Size mm²	0.14mm²
Maximum Wire Size mm²	2.5mm²

Key Features

Rated for a current of 8.5 amperes and voltage up to 600 volts.
Male connector type with cable mount configuration.
High contact density with 72 power and control contacts arranged in 4 rows.
Contact material is copper alloy with silver plating for enhanced conductivity and corrosion resistance.
IP65 rated for dust and water protection, suitable for industrial environments.
Compatible with heavy duty power connector systems and designed to meet VDE and other technical standards.
Suitable for use in low voltage switchgear, machine tools, automation, and professional sound and lighting applications.
Connector orientation is straight with crimp termination using an 8-point indent crimp tool.

Product Description

EPIC 11285200 Heavy Duty Power Connector Insert H-DD Series Male is a high-quality connector insert designed for demanding industrial applications. With a current rating of 8.5A and voltage capacity of 600V, this cable mount connector provides reliable power and control connections. The 72 contacts are arranged in a compact 4-row configuration, allowing high-density wiring in a compact shell size.

The connector contacts are made of copper alloy with a silver plating finish, ensuring excellent conductivity and durability. It is IP65 rated, offering dust-tight and protection against water jets, making it ideal for use in harsh industrial environments.

This product is engineered for low voltage switchgear, machine tools, automation technology, and professional sound and lighting industries where reliable and densely packed power connections are essential. The straight orientation and crimp termination method using an 8-point indent crimp tool allow for secure and effective wire termination.

Connector inserts are interchangeable with other H-DD series plugs and sockets, and the design includes a separate earth connection integrated through the metal body shell for safety.

The product complies with VDE standards 0110//72, 0110b, 79, and VDE 0627//86, and carries approvals from SEV, UL, and CSA. It is manufactured in Germany, reflecting high standards of quality and reliability.

Rated current: 8.5 amperes and voltage: 600 volts for industrial power applications. 72 contacts arranged in 4 rows for high contact density and versatility. Silver-plated copper alloy contacts enhance conductivity and corrosion resistance.

IP65 rating ensures protection against dust and water jets. Cable mount type with male gender and straight orientation. Compatible with H-DD series heavy duty power connectors and modules. Designed for use in low voltage switchgear, automation, machine tools, and professional lighting.
