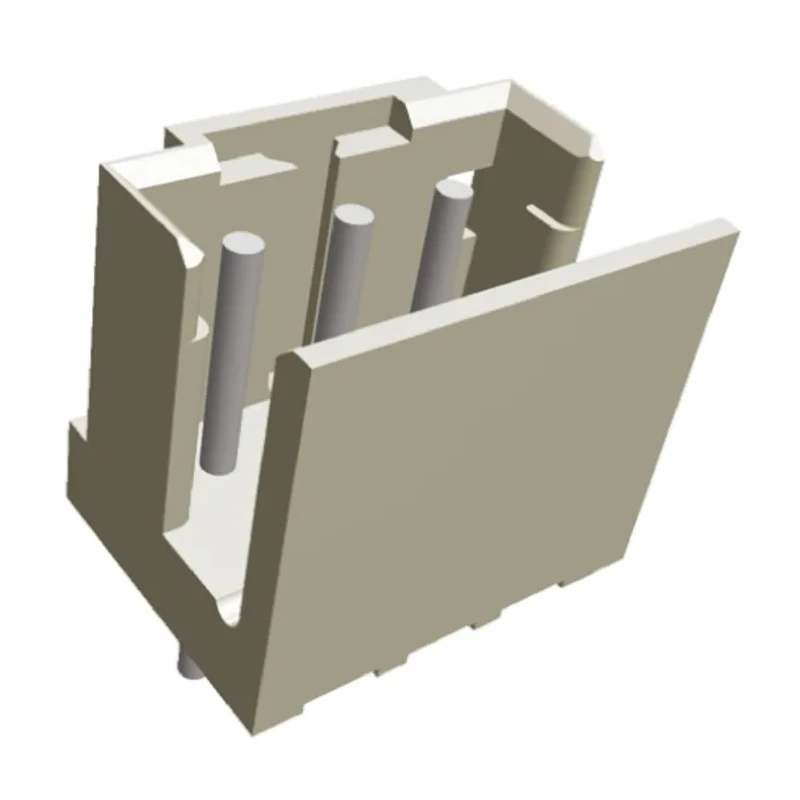

TE Connectivity AMP CT Series Straight Through Hole PCB Header, 3 Contacts, 2 mm Pitch, 1 Row, Shrouded 292132-3
Specifications
| Country of Origin | China |
|---|---|
| Voltage | 125V |
| Brand | TE Connectivity |
| Orientation | Straight |
| Current | 2A |
| Model | 292132-3 |
| Mount Type | Through Hole |
| Housing Material | Nylon |
| Contact Material | Brass |
| Series | AMP CT |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -30°C |
| Number of Rows | 1 |
| Pitch | 2mm |
| Contact Plating | Tin |
| Number of Contacts | 3 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Wire-to-Board |
Key Features
- Miniature design optimized for compact PCB applications.
- Fully shrouded housing protects contacts from damage during mating and unmating.
- Polarization and mating retention features ensure secure and accurate connection.
- Kinked solder legs provide secure self-retention on PCB surfaces.
- Suitable for use in business equipment, industrial machines, PCs, printers, C-TV, audio, and air conditioning systems.
- Wire-to-board connector system using through-hole mounting method.
- Contact material is brass with tin plating for reliable conductivity and corrosion resistance.
- Operational temperature range from -30°C to 105°C.
Product Description
TE Connectivity 292132-3 is a high-quality AMP CT series straight through hole PCB header designed for electronic and industrial applications. It features a 3-contact configuration, 2 mm pitch, and 1 row format, with a fully shrouded nylon housing to protect the contacts from scooping and damage during connector mating and unmating.
This connector includes polarization and mating retention features to ensure a secure and accurate fit with mating cable connectors. The kinked solder legs not only facilitate soldering but also provide self-retention on PCBs, improving manufacturing efficiency.
Made with brass contacts plated in tin, this header ensures excellent electrical performance and corrosion resistance suitable for wire-to-board systems. It supports a voltage rating of 125 V and a current rating of 2 A, operating reliably within a temperature range of -30°C to 105°C.
The AMP CT 2 mm miniature interconnection system including this header is widely used in diverse applications such as business equipment, industrial machinery, PCs, printers, consumer TV, audio devices, and air conditioning units. Its robust design and proven wire harness compatibility make it a trusted choice in various electronic assemblies.
Miniature design optimized for compact PCB applications. Fully shrouded housing protects contacts from damage during mating and unmating. Polarization and mating retention features ensure secure and accurate connection. Kinked solder legs provide secure self-retention on PCB surfaces.
Suitable for use in business equipment, industrial machines, PCs, printers, C-TV, audio, and air conditioning systems. Wire-to-board connector system using through-hole mounting method. Contact material is brass with tin plating for reliable conductivity and corrosion resistance.
Operational temperature range from -30°C to 105°C. Voltage rating of 125 V and current capacity of 2 A for general electronic applications.
Enhance your electronic designs with TE Connectivity's proven AMP CT PCB Headers, offering durability and ease of integration. Explore more PCB connector solutions and components in the Electronics & Electricals category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The voltage rating of this PCB header is 125 V.
This header has a current rating of 2 A.
The pitch size of the contacts is 2 mm.
The operational temperature range is from -30°C to 105°C.
This model features 3 contacts.
It uses a through-hole mounting method.
The contacts are made of brass with tin plating, and the housing is made of nylon.
It includes polarization and mating retention features for a secure and accurate connection.
It is suitable for use in business equipment, industrial machines, PCs, printers, consumer TVs, audio devices, and air conditioning systems.
The orientation of this header is straight.
This header is part of a wire-to-board connector system.
The kinked solder legs provide secure self-retention on PCB surfaces, improving manufacturing efficiency.
