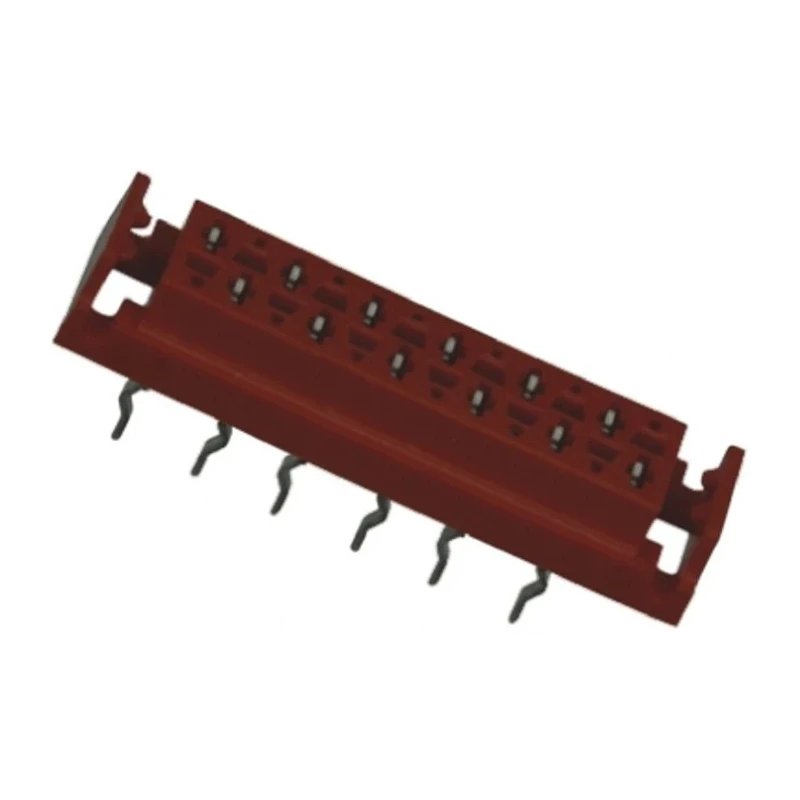

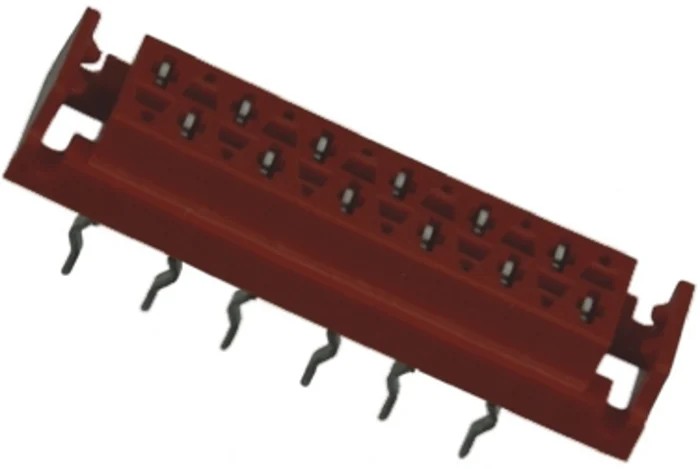

TE Connectivity Micro-MaTch Series Straight Through Hole Female-On-Board PCB Socket, 16-Contact 2 Row 2.54 mm 1-338068-6
Specifications
| Country of Origin | Germany |
|---|---|
| Voltage | 100V |
| Brand | TE Connectivity |
| Orientation | Straight |
| Current | 1.5A |
| Mount Type | Through Hole |
| Housing Material | Liquid Crystal Polymer |
| Contact Material | Bronze |
| Series | Micro-MaTch |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Sub Type | Female-On-Board |
| Minimum Operating Temperature | -40°C |
| Number of Rows | 2 |
| Pitch | 2.54mm |
| Contact Plating | Tin |
| Number of Contacts | 16 |
| Contact Gender | Female |
| Connector System | Board-to-Board |
Key Features
- The socket supports a current rating of 1.5A and a voltage rating of 100V.
- It has a straight orientation designed for through-hole mounting on PCBs.
- The housing is made from liquid crystal polymer for durability.
- Contact material is bronze with tin plating ensuring reliable electrical conductivity.
- Operates in temperature ranges from -40°C to 125°C, suitable for various industrial conditions.
- Features a kinked leg design for secure retention on the PCB.
- The contact spring system prevents fretting corrosion ensuring long-term reliability.
- Designed for board-to-board connection in compact spaces with a gas-tight connection.
Product Description
TE Connectivity 1-338068-6 Micro-MaTch Series PCB Socket is a female-on-board connector designed for straight through-hole mounting on PCB assemblies. It features 16 contacts arranged in 2 rows with a 2.54 mm pitch, making it suitable for compact electronic configurations.
The connector supports a current carrying capacity of 1.5A and a voltage rating of 100V, enabling its use in a variety of low-power electronic applications. The housing is constructed from liquid crystal polymer, providing high durability and thermal resistance.
Contacts are made of bronze and are tin plated to prevent corrosion and ensure consistent electrical performance. The contact system uses a spring mechanism to prevent fretting corrosion and maintain a gas-tight connection even under vibration and thermal expansion.
This PCB socket operates reliably within a temperature range of -40° to 125°C. It is designed with kinked legs to securely retain the connector to the PCB, ensuring mechanical stability in industrial and commercial applications.
Typical applications include use in production and material handling equipment, robotics, control units, automotive electronics like car radios and dashboard systems, navigation systems, base stations, audio equipment, and set-top boxes. This connector supports board-to-board mating and offers versions with locking latches for secure connections.
The socket’s compact, space-saving design suits high-density PCB layouts. Fully tin plated contacts enhance corrosion resistance and electrical integrity. The spring contact system resists fretting corrosion and maintains reliable connections.
Kinked legs ensure secure retention to the PCB for robust mechanical stability. Operates across a wide temperature range for industrial applications. Explore the comprehensive range of TE Connectivity connectors for your electronics projects and industrial needs on EnvMart.
Explore more products in our PCB Sockets category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The socket supports a current rating of 1.5A and a voltage rating of 100V.
This model features a 2.54 mm pitch and has 16 contacts arranged in 2 rows.
The housing is constructed from liquid crystal polymer, which provides high durability and thermal resistance.
It operates reliably within a temperature range of -40°C to 125°C.
The contact system uses a spring mechanism to prevent fretting corrosion and maintain a gas-tight connection even under vibration and thermal expansion.
This socket is designed for through-hole mounting on PCB assemblies.
The contacts are made of bronze and are tin plated to prevent corrosion and ensure consistent electrical performance.
Typical applications include production and material handling equipment, robotics, automotive electronics, and audio equipment.
It features kinked legs that ensure secure retention to the PCB, providing robust mechanical stability.
This socket supports a board-to-board mating connector system.
The country of origin for this socket is Germany.
The termination type for this model is solder.
