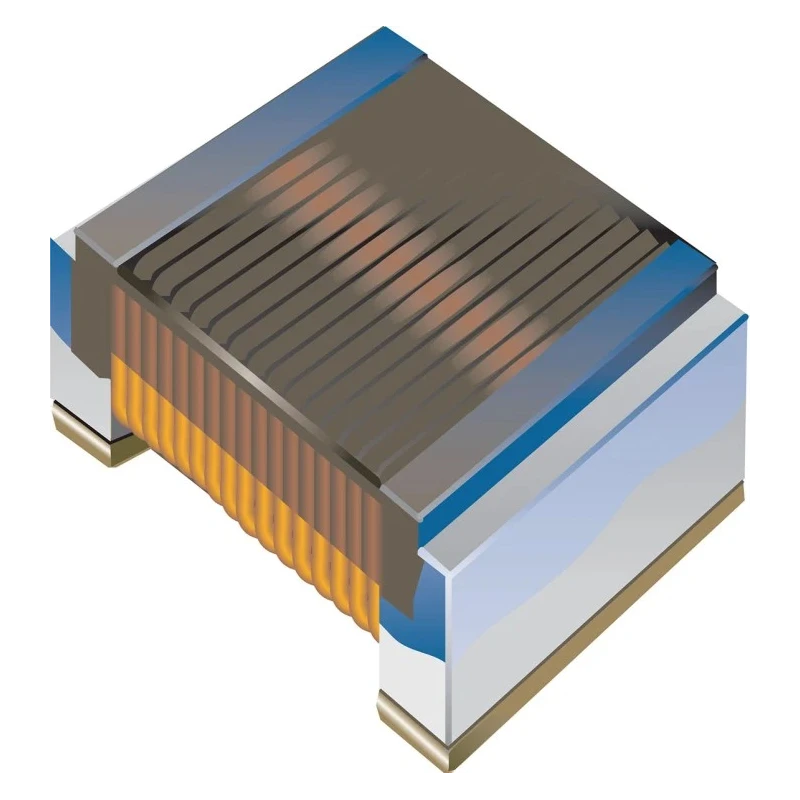

Bourns 0603 Unshielded Wirewound Surface Mount Inductor with Ceramic Core 24 nH ±5% 700 mA Idc Q35 CW161009A
Specifications
| Country of Origin | Malaysia |
|---|---|
| Brand | Bourns |
| Height | 0.9mm |
| Length | 1.65mm |
| Model | CW161009A |
| Depth | 1.15mm |
| Packaging | Tape & Reel |
| Series | CW161009A |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -40°C |
| Core Material | Ceramic |
| Inductance | 24nH |
| Standards/Approvals | RoHS |
| Package/Case | 0603 |
| Maximum DC Current | 700mA |
| Maximum DC Resistance | 140mΩ |
| Inductance Tolerance | ±5 % |
| Termination Style | Surface Mount |
| Maximum Self Resonant Frequency | 2.65GHz |
| Minimum Quality Factor | 35 |
| Inductor Construction | Wirewound |
| Automotive Standard | AEC-Q200 |
Key Features
- The ceramic core ensures stable electrical characteristics at various temperatures.
- Compact 0603 package size with 1.65mm length and 0.9mm height.
- High self-resonant frequency of 2.65 GHz supports high-frequency circuits.
- Compliance with AEC-Q200 automotive standard for reliability.
- RoHS compliant and halogen free materials used in construction.
- Suitable for surface mount applications with wirewound inductor construction.
- Maximum DC resistance is 140 mΩ ensuring low power loss.
- Operates reliably between -40°C to 125°C temperature range.
Product Description
Bourns CW161009A is a 0603 unshielded wirewound surface mount inductor featuring a ceramic core that delivers a precise inductance of 24 nH with a tolerance of ±5%. The inductor supports a maximum DC current of 700 mA and offers a high self-resonant frequency of 2.65 GHz, making it suitable for high-frequency electronic circuit designs.
The compact 0603 package measures 1.65mm in length, 0.9mm in height, and 1.15mm in depth, enabling installation in space-constrained applications. Its wirewound construction and ceramic core provide excellent stability and low power loss, which is further ensured by the maximum DC resistance rating of 140 mΩ.
This component conforms to the AEC-Q200 automotive standard, guaranteeing robustness and reliability in automotive electronics. It exhibits a minimum quality factor of 35, enhancing performance in RF and filtering circuits. The product is RoHS compliant, halogen free, and designed for surface mount termination style.
Operating temperature ranges from -40°C to 125°C, allowing use in various industrial and commercial environments. The Bourns CW161009A inductor is an ideal choice for manufacturers in telecommunications, consumer electronics, automotive, and power supply sectors requiring quality passive components with precise electrical characteristics.
The ceramic core provides stable electrical characteristics under thermal stress. Compact 0603 package size supports high-density circuit design. High self-resonant frequency allows use in RF applications. Compliance with AEC-Q200 automotive standard ensures reliability.
Low DC resistance minimizes power losses in circuits. Wide operating temperature range suits diverse applications. Wirewound construction offers durability and consistent performance. RoHS and halogen free compliance support environmental standards.
Explore the Surface Mount Inductors category at EnvMart for related Bourns components and other high-quality passive electronic components used in industrial, automotive, telecommunications, and electronic manufacturing applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model features an inductance of 24 nH with a tolerance of ±5%.
It supports a maximum DC current of 700 mA.
The inductor measures 1.65 mm in length, 0.9 mm in height, and 1.15 mm in depth.
It has a high self-resonant frequency of 2.65 GHz, suitable for high-frequency applications.
It operates reliably within a temperature range of -40°C to 125°C.
This unit features a wirewound construction with a ceramic core, providing stable electrical characteristics.
Yes, it complies with the AEC-Q200 automotive standard and is RoHS compliant.
The maximum DC resistance is rated at 140 mΩ, ensuring low power loss.
It exhibits a minimum quality factor of 35, enhancing performance in RF and filtering circuits.
This inductor is designed for surface mount termination style.
The country of origin for this model is Malaysia.
It is packaged in tape and reel for convenient handling and assembly.
