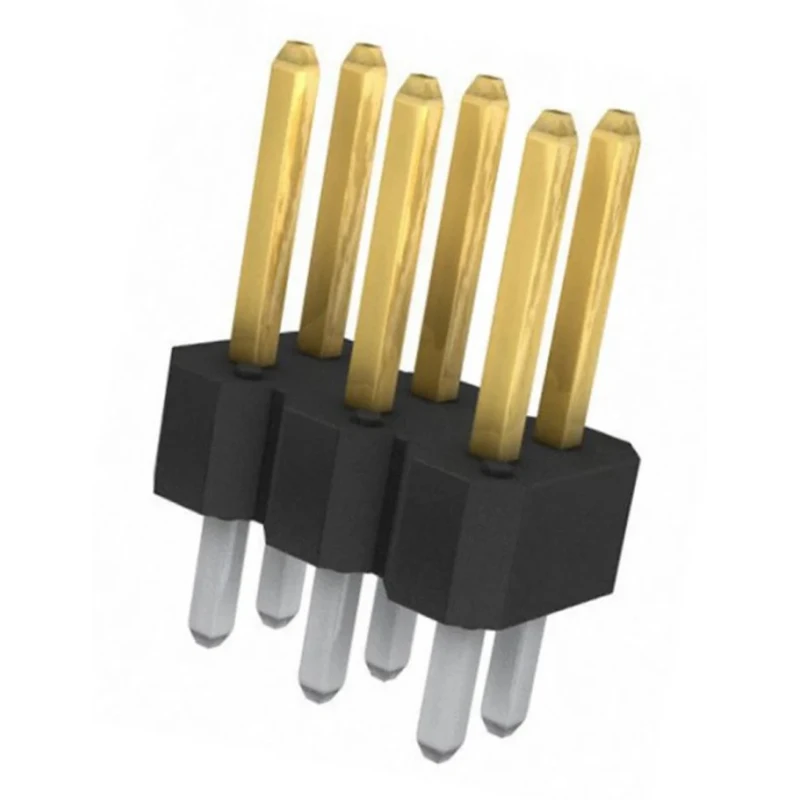

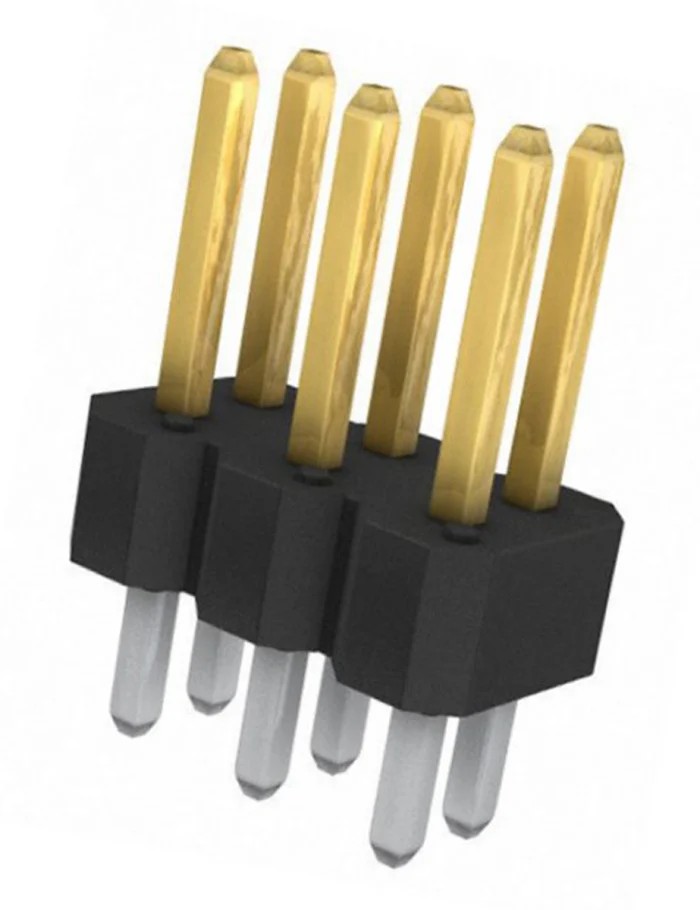

Amphenol Communications Solutions Bergstik Series Straight Through Hole Pin Header, 6 Contacts, 2.54 mm 77313-118-06LF

Amphenol Communications Solutions 77313-118-06LF Bergstik Series pin header is a versatile and economical PCB connector component designed for use in electronic assemblies requiring board-to-board or wire-to-board connections. This connector features a 2 row, 6 contact male pin header layout with a standard 2.54 mm pitch that is widely compatible with many electronic devices and custom configurations.

The pin header contacts are crafted from phosphor bronze with gold plating, providing excellent electrical conductivity and corrosion resistance. The housing is made from high temperature thermoplastic compatible with reflow soldering processes, rated at UL 94 V-0 flammability, ensuring safety and durability in demanding operating environments.

With a current rating of 3 amps and voltage rating of 1.5 kV, this component supports reliable and stable electrical performance in industrial, laboratory, and commercial electronic applications. It has a tail pin length of 3.05 mm for secure solder connections on the PCB, along with a mating pin length of 5.84 mm to ensure sound mechanical engagement with complementary connectors such as Dubox, Quickie IDC, and PV series crimp housings.

The unshrouded design allows the header strips to be cut to length, enabling flexible customization of connector size and layout to suit specific assembly requirements. Operating temperature range from -65°C up to 125°C further supports usage in harsh environmental conditions.

The connector complies with CHINA RoHS, EU RoHS, and REACH/SvHC standards, confirming its suitability for eco-conscious electronic manufacturing. Gold-plated phosphor bronze contacts ensure long-lasting conductivity. Thermoplastic housing is reflow solder compatible and UL 94 V-0 rated.

Rated 3A current and 1.5kV voltage for robust electrical performance. Two rows and 6 contacts with 2.54 mm pitch for standard PCB interfaces. Unshrouded design allows cutting to length for application flexibility. Wide operating temperature range from -65°C to 125°C.

Compatible with various female connectors including Dubox and Quickie IDC series. Meets key environmental standards: CHINA RoHS, EU RoHS, REACH/SvHC.

This Bergstik Series pin header is ideal for industrial electronics manufacturing, laboratory instrumentation, communications equipment, and other sectors requiring reliable PCB connectors. Browse our PCB Headers category for additional Amphenol Communications Solutions products and related high-quality connectors on EnvMart.
