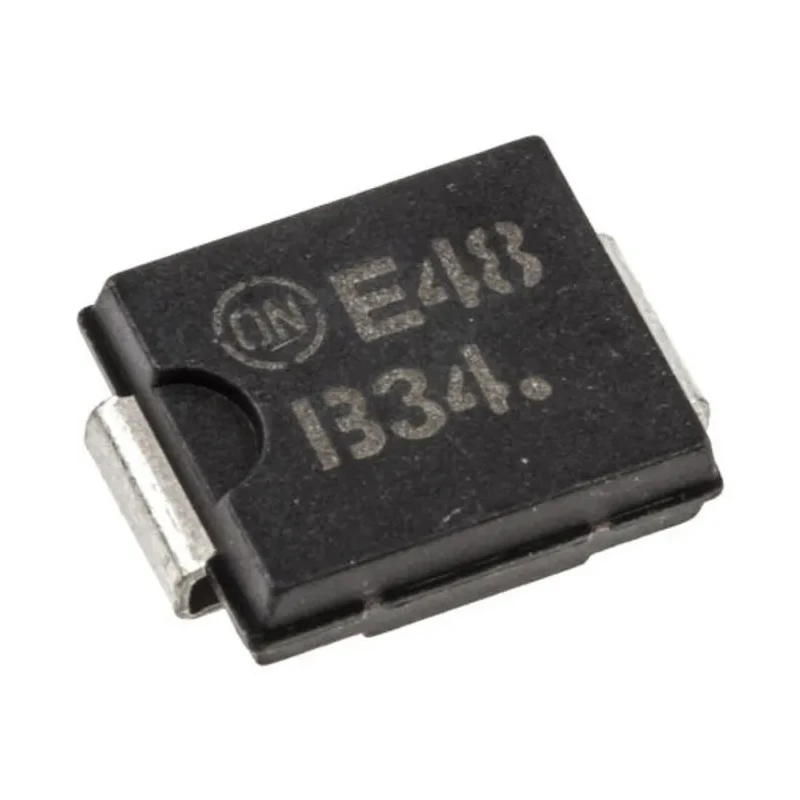

onsemi Schottky Diode 40 V 4 A Surface Mount DO-214AB 2-Pin MBRS340T3G
Specifications
| Country of Origin | India |
|---|---|
| Brand | onsemi |
| Height | 2.41mm |
| Length | 7.11mm |
| Model | MBRS340T3G |
| Width | 6.1mm |
| Mount Type | Surface |
| Maximum Operating Temperature | 150°C |
| Package Type | DO-214AB (SMC) |
| Minimum Operating Temperature | -65°C |
| Pin Count | 2 |
| Automotive Standard | AEC-Q101 |
| Maximum Continuous Forward Current If | 4A |
| Peak Reverse Repetitive Voltage Vrrm | 40V |
| Diode Configuration | Single |
| Rectifier Type | Schottky |
| Peak Reverse Current Ir | 20mA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 80A |
| Maximum Forward Voltage Vf | 500mV |
| onsemi 40V 4A, Schottky Diode, 2-Pin DO-214AB MBRS340T3GBrand | ON Semiconductor |
Key Features
- Features a stable oxide passivated junction for reliable performance.
- Offers low forward voltage drop, improving power efficiency.
- Withstands reverse avalanche energy transients for durability.
- Incorporates guard ring for stress protection and enhanced reliability.
- Automotive grade compliant with AEC-Q101 standard.
- Suitable for low voltage, high frequency rectification applications.
- Ideal for freewheeling diode and polarity protection functions.
- Compact rectangular package enables automated handling and space-saving design.
Product Description
onsemi MBRS340T3G Schottky Diode is a high-performance power rectifier designed for industrial and electronic applications requiring efficient low-voltage rectification. This diode is packaged in a compact surface mount DO-214AB (SMC) form factor with J-bend leads and a corrosion-resistant molded epoxy case, measuring approximately 7.11 mm length, 6.1 mm width, and 2.41 mm height.
The device supports a maximum continuous forward current of 4 A and peak reverse repetitive voltage of 40 V, making it suitable for high frequency and low voltage power conversion circuits. It exhibits a low forward voltage drop of 500 mV, effectively reducing power loss and heat generation in the circuit. With a peak non-repetitive forward surge current of 80 A and a peak reverse current of 20 mA, the MBRS340T3G diode is robust under transient conditions.
Designed with a stable oxide passivated junction and guard ring construction, it assures enhanced avalanche energy transient resistance and stress protection, boosting device reliability in demanding applications. Compliant with the automotive standard AEC-Q101, it is qualified for automotive electronics as well as industrial and commercial electronic systems.
This diode is ideal for use as a freewheeling diode, polarity protection diode, and other rectification roles where size and weight are critical constraints. Its rectangular DO-214AB package enables automated handling and efficient PCB assembly.
Low forward voltage drop for improved efficiency. Stable oxide passivated junction for reliable operation. Guard ring provides avalanche energy and stress protection. Survives transient surge currents up to 80 A. Wide operating junction temperature range from -65°C to +150°C.
Compact 2-pin DO-214AB surface mount package. Automotive standard qualified (AEC-Q101). Corrosion resistant molded epoxy case.
This Schottky diode is extensively used in industrial power supplies, automotive electronics, telecommunications, consumer electronics, and other applications demanding efficient, compact, and durable diodes.
Explore more power semiconductor solutions like Schottky diodes and rectifiers at EnvMart to enhance your industrial, laboratory, or commercial electronic system designs.
Explore more products in our Schottky Diodes & Rectifiers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current of the MBRS340T3G Schottky diode is 4 A.
This model has a peak reverse repetitive voltage rating of 40 V.
The maximum forward voltage drop for this diode is 500 mV.
The dimensions of the DO-214AB package are approximately 7.11 mm in length, 6.1 mm in width, and 2.41 mm in height.
The peak non-repetitive forward surge current for this diode is 80 A.
The operating temperature range for the MBRS340T3G is from -65°C to +150°C.
Yes, this diode is compliant with the automotive standard AEC-Q101.
The MBRS340T3G is a Schottky rectifier type diode.
The peak reverse current for this model is 20 mA.
This diode is suitable for low voltage, high frequency rectification applications, including freewheeling diode and polarity protection functions.
It features a stable oxide passivated junction and a guard ring for stress protection and enhanced reliability.
The MBRS340T3G has a pin count of 2.
