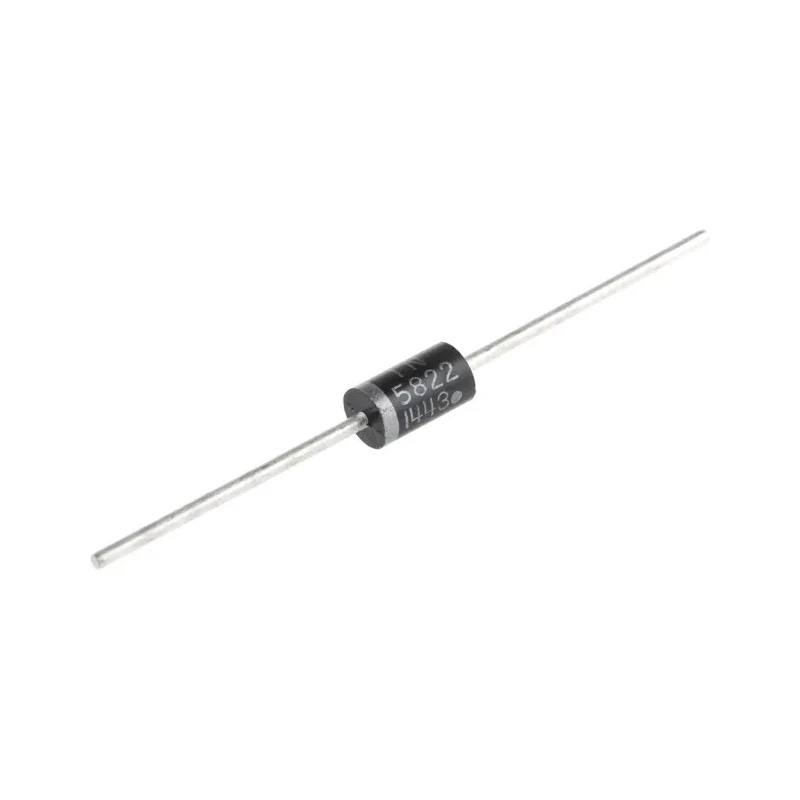

onsemi Schottky Diode 40 V 3 A 2-Pin Through Hole DO-201AD Package 1N5822RLG
Specifications
| Country of Origin | India |
|---|---|
| Diameter | 5.3mm |
| Brand | onsemi |
| Height | 5.3mm |
| Length | 9.5mm |
| Model | 1N5822RLG |
| Width | 5.3mm |
| Mount Type | Through Hole |
| Series | 1N5822 |
| Maximum Operating Temperature | 125°C |
| Package Type | DO-201AD |
| Minimum Operating Temperature | -65°C |
| Pin Count | 2 |
| Maximum Continuous Forward Current If | 3A |
| Peak Reverse Repetitive Voltage Vrrm | 40V |
| Diode Configuration | Single |
| Rectifier Type | Schottky |
| Peak Reverse Current Ir | 2mA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 80A |
| Maximum Forward Voltage Vf | 950mV |
| Peak Reverse Recovery Time trr | 1.6ns |
Key Features
- Operates at a maximum continuous forward current of 3 amperes.
- Peak reverse repetitive voltage rating is 40 volts.
- Features a compact 2-pin DO-201AD package suitable for through hole mounting.
- Maximum forward voltage drop is 950 millivolts, optimizing power efficiency.
- Capable of handling peak non-repetitive forward surge current up to 80 amperes.
- Designed with a peak reverse recovery time of 1.6 nanoseconds for high-speed switching applications.
- Durable and lightweight construction with epoxy-moulded case and 11.7 mg package weight.
- Operating temperature range from -65°C to 125°C for reliable industrial performance.
Product Description
onsemi 1N5822RLG Schottky Diode is a discrete semiconductor device rated for 40 V and 3 A in a 2-pin through hole DO-201AD package. It implements the Schottky barrier principle to achieve low forward voltage drop and minimal reverse leakage current, making it ideal for low voltage, high frequency rectification tasks.
The diode supports a peak reverse repetitive voltage of 40 V and a maximum continuous forward current of 3 A, with a peak non-repetitive forward surge current of 80 A. Its rapid switching capability is evident from the 1.6 ns peak reverse recovery time.
Mechanically, it has a length of 9.5 mm, diameter and width of 5.3 mm, and height of 5.3 mm, housed within a robust epoxy moulded casing. This design ensures durability, light weight (11.7 mg), and suitability for automated assembly.
The operating temperature range from -65°C to 125°C allows usage in various industrial and commercial environments. This diode is suitable for applications such as freewheeling diodes, polarity protection, and power rectification in electronics, power supply units, automotive, and general electronic manufacturing.
Operates at a maximum continuous forward current of 3 amperes. Peak reverse repetitive voltage rating is 40 volts. Compact 2-pin through hole DO-201AD package for easy integration. Low forward voltage drop of 950 millivolts improves power efficiency.
High surge current capability of 80 amperes enhances reliability during transient events. Fast switching with 1.6 nanosecond reverse recovery time benefits high-frequency circuits. Durable epoxy moulded case protects internal components and simplifies handling.
Wide operating temperature range supports diverse industrial applications. Lightweight construction suits automated board assembly and compact designs. Conforms to onsemi quality standards ensuring consistent performance.
This product is categorized under Schottky Diodes & Rectifiers ideal for semiconductor electronic components in industrial, automotive, and power management uses. Explore more semiconductor solutions on EnvMart for your electronics projects and production lines.
Explore more products in our Schottky Diodes & Rectifiers category.
