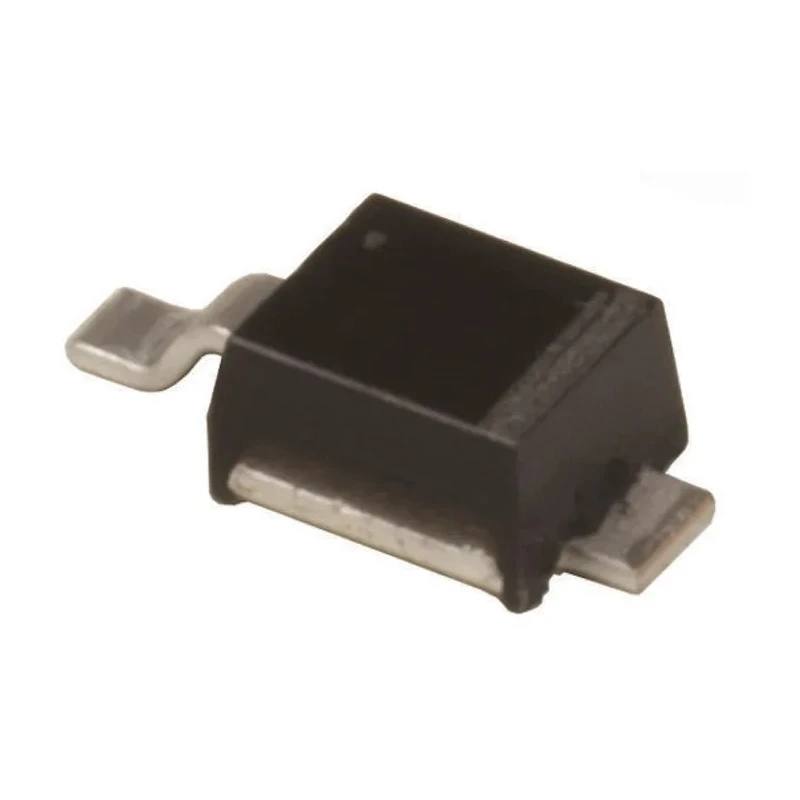

onsemi Schottky Diode 30 V 1 A Surface Mount POWERMITE 2-Pin MBRM130LT1G

The onsemi MBRM130LT1G is a surface mount Schottky diode designed for high-efficiency rectification and protection in electronic circuits. Rated for a maximum continuous forward current of 1 A and a peak reverse repetitive voltage of 30 V, this diode supports low voltage and high-frequency switching applications effectively.

Utilizing the Schottky barrier principle, it provides a minimized forward voltage drop of 0.5 V which improves energy efficiency and reduces heat dissipation. It is configured as a single diode with 2 pins in a compact POWERMITE package, having precise dimensions of 2.18 mm length, 2.05 mm width, and 1.15 mm height, making it ideal for dense PCB layouts and automated board assembly operations.

The diode possesses excellent thermal performance with an operating temperature range from -55°C to 125°C, allowing use in automotive, industrial, and commercial electronics environments where reliable operation under varying conditions is essential. Its transient surge capability is robust with a peak non-repetitive forward surge current of 50 A, providing resilience against voltage spikes and transient disturbances.

This device meets the automotive industry’s stringent AEC-Q101 qualification ensuring durability and suitability for automotive system designs. Its epoxy moulded case ensures mechanical protection and electrical insulation while maintaining a lightweight of just 11.7 mg, which aids in automated pick-and-place mounting during manufacturing.

Compliance with RoHS standards reflects adherence to environmental and safety regulations by being lead-free and halogen-free. This Schottky diode is ideal for applications including low voltage rectifiers, freewheeling diodes in switching power supplies, polarity protection, and high-speed switching circuits in a wide range of industrial, automotive, and consumer electronics equipment.

Designed for low voltage, high-frequency rectification applications. Employs Schottky barrier principle for low forward voltage drop. Compact POWERMITE package with dimensions of 2.18mm length, 2.05mm width, and 1.15mm height.

Wide operating temperature range from -55°C to 125°C ensures reliability in harsh environments. Features peak non-repetitive surge current rating of 50 A for transient conditions. Automotive grade compliant with AEC-Q101 standard.

Manufactured with epoxy moulded lightweight 11.7 mg package suitable for automated assembly. RoHS compliant, lead-free design suitable for environmentally-friendly electronics. Explore more semiconductor diodes and power electronic components in the Electronics & Electricals category at EnvMart for your industrial and commercial project requirements.
