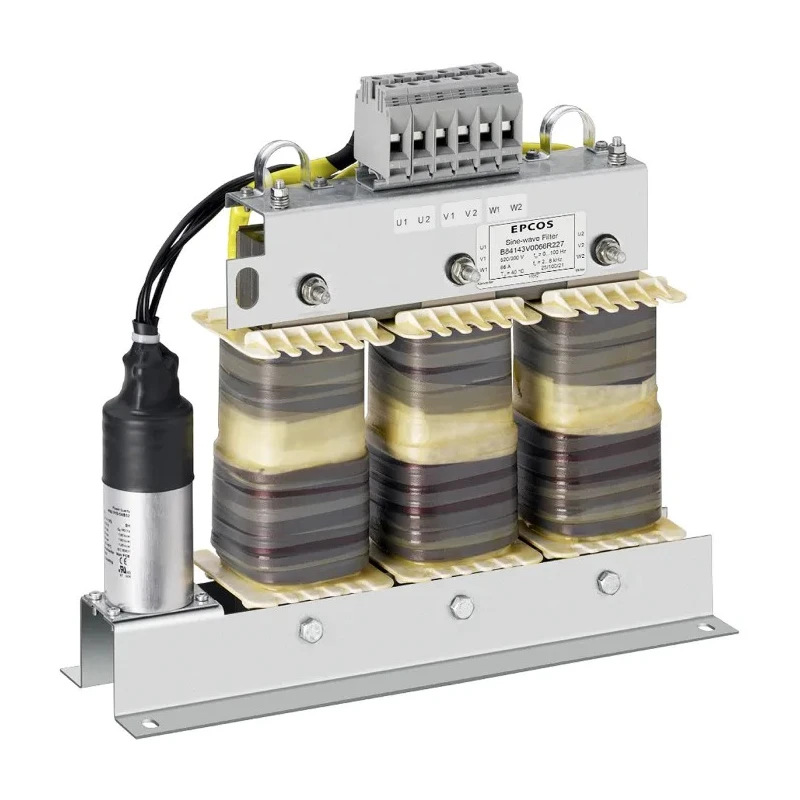

TDK Sine Wave Output Filter 520V AC 66A Terminal Block Chassis Mount Hungary B84143V0066R227

TDK B84143V0066R227 Sine Wave Output Filter provides reliable electromagnetic compatibility (EMC) filtering for 3-phase frequency converter systems. Operating at a maximum of 520V AC and a current rating of 66A, this filter helps reduce motor noise and eddy current losses while ensuring system stability and protection.

This filter features a terminal block termination style and a compact chassis mount design measuring 400mm in length, 350mm in height, and 176mm in depth. It is designed for natural cooling under full load and offers IP20 protection level, including finger-safe terminal blocks for operator safety. Copper busbar terminals are used in higher amperage versions to ensure durable electrical connections.

Certified to meet industry standards including CSA 22.2 No.8, EN 60939, and UL 1283, this product is manufactured in Hungary, guaranteeing quality and reliability. It is optimized for use with long motor cables and is suitable for applications such as HVAC motor drives, traction and conveyor systems, pumps, and elevators.

The filter reduces voltage ripple and dv/dt effects, providing low ripple sinusoidal phase-to-phase voltage output which enhances motor performance and longevity. To maintain optimal filter performance, it is advised that wiring length between the filter and inverter does not exceed 10 meters.

The filter utilizes terminal block connections for ease of wiring. Compact chassis mount design supports versatile installation environments. Reduces motor noise and eddy current losses for smooth operation. IP20 protection and finger-safe design improve operational safety.

Certified to international safety and performance standards. Optimized for full load operation with natural cooling. Suitable for industrial applications including HVAC, traction, pumps, and conveyors. Manufactured in Hungary ensuring high-quality production standards.

Recommended wiring length is less than 10 meters between inverter and filter. Explore the comprehensive range of EMC and sine wave filters at EnvMart for professional industrial and electronic applications.
