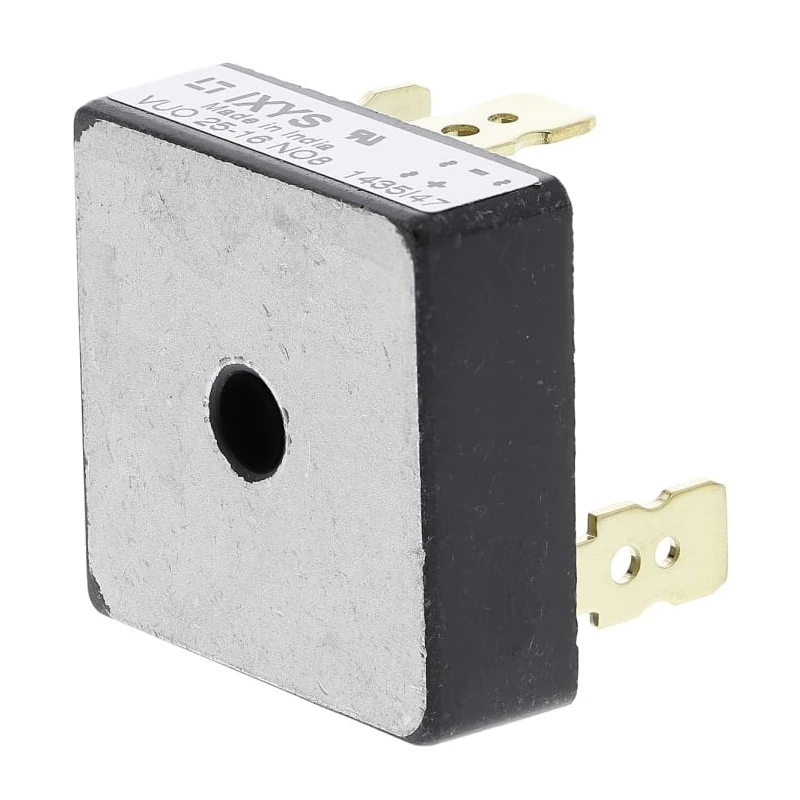

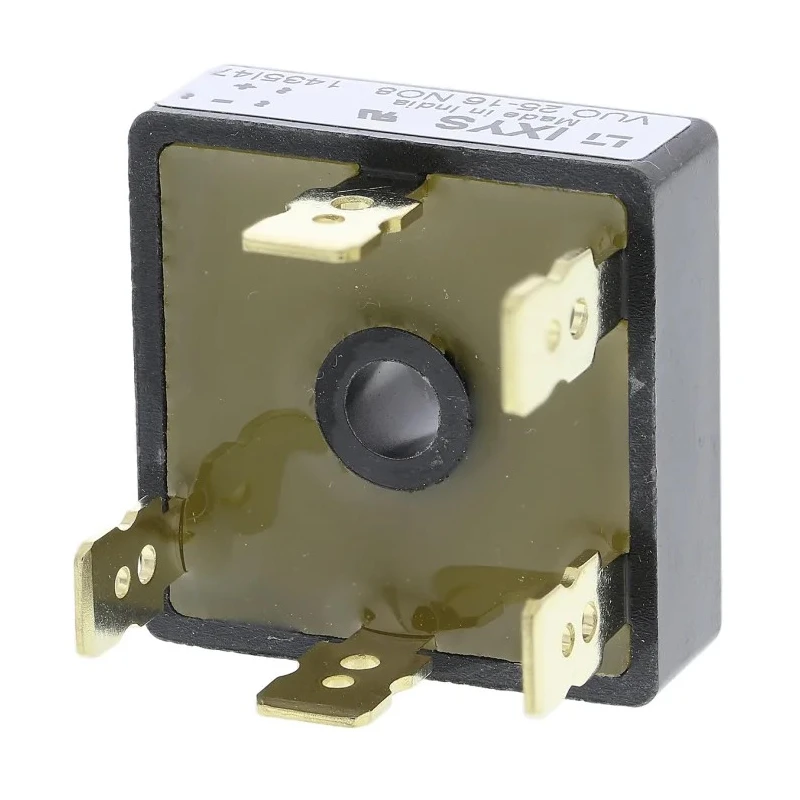

IXYS Bridge Rectifier Module 1600 V 400 A 5-Pin Single VUO25-16NO8

Free Delivery in India | Lowest Global Shipping Charges

IXYS Bridge Rectifier Module 1600 V 400 A 5-Pin Single VUO25-16NO8

Name: IXYS Bridge Rectifier Module 1600 V 400 A 5-Pin Single VUO25-16NO8
Brand: IXYS
SKU: 138562
Price: 24.97 USD
Availability: InStock



Category Bridge Rectifier Module Brand IXYS Condition New

Specifications

Country of Origin	India
Brand	IXYS
Height	10mm
Length	28.5mm
Model	VUO25-16NO8
Width	28.5mm
Mount Type	Screw
Series	VUO25
Configuration	Single
Maximum Operating Temperature	150°C
Package Type	FO-BB
Minimum Operating Temperature	-40°C
Number of Phases	3
Pin Count	5
Peak Reverse Repetitive Voltage Vrrm	1600V
Peak Reverse Current Ir	300μA
Peak Non-Repetitive Forward Surge Current Ifsm	400A
Forward Current If	25A
Peak Forward Voltage Vf	2.2V
Vishay Bridge Rectifier, 1600 V 500 A, 5-Pin SingleBrand	Vishay
IXYS Bridge Rectifier Module, 1200 V 400 A, 5-Pin SingleBrand	IXYS

Key Features

Supports peak reverse repetitive voltage of 1600 V for high voltage applications.
Rated forward current of 25 A with peak surge current up to 400 A.
Designed for three-phase alternating current conversion to direct current.
Mount type is screw for secure and stable installation.
Compact package with dimensions 28.5 mm length, 28.5 mm width, and 10 mm height.
Operates reliably within temperature range of -40°C to 150°C.
Features low forward voltage drop of 2.2 V and very low leakage current.
Constructed with push-on terminals for easy connectivity.

Product Description

The IXYS VUO25-16NO8 Bridge Rectifier Module is a high-performance semiconductor device designed for efficient conversion of alternating current (AC) to direct current (DC) in three-phase systems.

This module supports a peak reverse repetitive voltage (VRRM) of 1600 V and a typical forward current (IF) rating of 25 A, with peak non-repetitive forward surge current capability reaching 400 A, making it suitable for demanding power electronics applications.

Designed with a 5-pin single configuration and screw mount type, it allows for easy integration and secure installation within industrial and electronic power circuitry. The module is encased in a FO-BB package with compact dimensions measuring 28.5 mm in length, 28.5 mm in width, and 10 mm in height, ensuring space-efficient deployment.

Operating reliably across a wide temperature range from -40°C to 150°C, the device incorporates push-on terminals enabling convenient connectivity. Its very low leakage current and forward voltage drop of 2.2 V improve energy efficiency and thermal performance during operation.

This bridge rectifier is ideal for use in power supply units, motor control circuits, industrial automation, and semiconductor power conversion systems, providing robust and precise rectification consistent with three-phase AC to DC conversion requirements.

Supports peak reverse repetitive voltage of 1600 V for high voltage applications. Rated forward current of 25 A with peak surge current up to 400 A. Designed for three-phase alternating current conversion to direct current.

Mount type is screw for secure and stable installation. Compact package with dimensions 28.5 mm length, 28.5 mm width, and 10 mm height. Operates reliably within temperature range of -40°C to 150°C. Features low forward voltage drop of 2.2 V and very low leakage current.

Constructed with push-on terminals for easy connectivity. Suitable for industrial, electronic, power, and semiconductor applications. Encapsulated in FO-BB package providing robust thermal and mechanical properties. Discover the IXYS bridge rectifier series on EnvMart for reliable electronic component solutions tailored to your industrial and electronic design needs.
