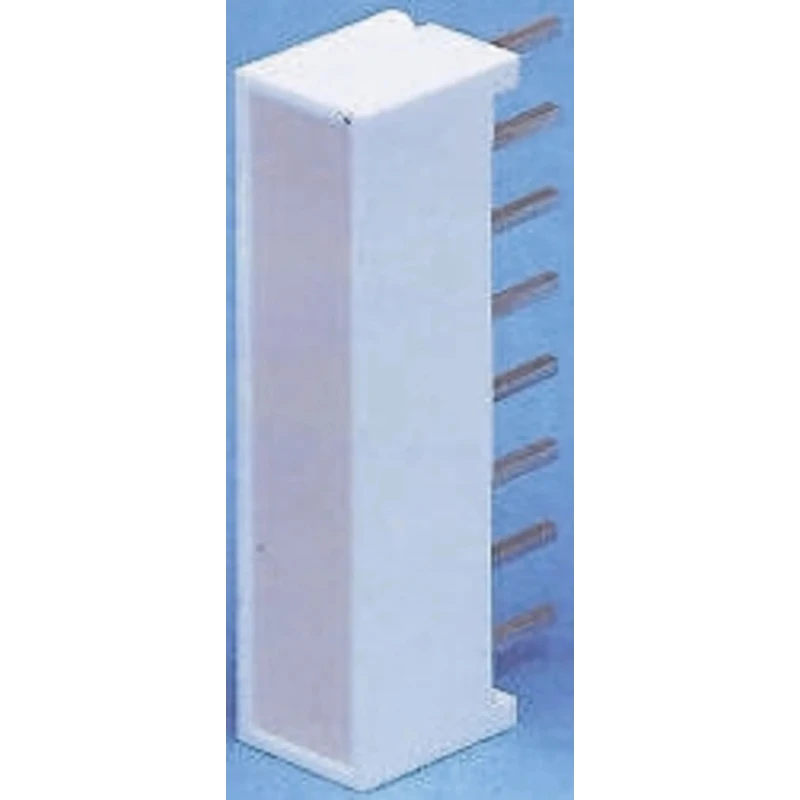

Broadcom Light Bar LED Display Red 45mcd Through Hole Mount HLMP-2350
Specifications
| Country of Origin | India |
|---|---|
| Display Type | Light Bar |
| Brand | Broadcom |
| Model | HLMP-2350 |
| Mount Type | Through Hole |
| Maximum Operating Temperature | 85°C |
| Minimum Operating Temperature | -40°C |
| Number Of Segments | 1 |
| External Width | 20.3mm |
| External Depth | 6.2mm |
| External Height | 5mm |
| Power Dissipation | 37mW |
| Luminous Intensity | 45mcd |
| Standards/Approvals | RoHS |
| LED Colour | Red |
| Dominant Wavelength | 626nm |
| Colour of Face | White |
| Forward Voltage | 2V |
| Forward Current | 25mA |
Key Features
- This LED display offers a luminous intensity of 45 millicandela for bright indication.
- It has a single light bar segment with a dominant wavelength of 626nm in red color.
- The device is designed for through hole mounting for easy circuit integration.
- Operating temperature ranges from -40°C to 85°C ensuring reliable performance.
- The display has dimensions of 20.3mm width, 5mm height, and 6.2mm depth for compact installations.
- Its power dissipation is 37mW, operating at a forward voltage of 2V and forward current of 25mA.
- The face of the LED is white, enhancing light visibility and contrast.
- The product complies with RoHS standards, ensuring environmental safety.
Product Description
Broadcom HLMP-2350 Light Bar LED Display is a high-quality electronic component designed for indication and display purposes in industrial and commercial applications. This model features a single red LED segment that emits a luminous intensity of 45 millicandela, making it highly visible for status indicators and panel displays.
The device utilizes through hole mounting, allowing for secure and reliable placement on printed circuit boards. Its compact physical dimensions of 20.3mm width, 5mm height, and 6.2mm depth allow for flexible integration even in limited space environments.
The LED's dominant wavelength is 626nm, producing a vivid red color with enhanced contrast thanks to the white face color. Operating specifications include a forward voltage of 2V, forward current of 25mA, and power dissipation of 37mW. It is designed to perform efficiently within a broad temperature range from -40°C to 85°C.
The HLMP-2350 complies with RoHS standards, confirming its adherence to environmental and safety regulations. Its reliable rectangular light-emitting surface provides uniform illumination and excellent on-off contrast, suitable for telecommunications indicators, front panel status indicators, and LED bar graphs.
When handling this LED display, anti-static precautions are recommended to prevent device damage. The product is supplied in tubes ready for insertion into automated production machinery, assisting in efficient manufacturing processes.
This LED display provides a bright and uniform light bar segment for clear visual indication. Operating temperature range from -40°C to 85°C ensures suitability for various industrial environments. Its through hole mount type enables robust and secure PCB mounting.
The device features 20.3mm width, 5mm height, and 6.2mm depth dimensions. Complies with RoHS directives for environmentally responsible manufacturing. Power dissipation is 37mW with a forward voltage of 2V at 25mA forward current.
Red LED color with 626nm wavelength provides vivid display output. Supplied in tubes for easy handling during production assembly. Ideal for use in telecommunications, industrial control panels, and bar graphs. Explore a wide range of LED Display products and related components at EnvMart to find perfect solutions for your electronic design and industrial projects.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The HLMP-2350 LED display has a luminous intensity of 45 millicandela, providing bright indication for various applications.
The dominant wavelength of the red LED in this model is 626nm, which produces a vivid red color.
This model has dimensions of 20.3mm in width, 5mm in height, and 6.2mm in depth, allowing for compact installations.
The operating temperature range for the HLMP-2350 is from -40°C to 85°C, ensuring reliable performance in various environments.
This LED display utilizes through hole mounting, which allows for secure integration onto printed circuit boards.
The HLMP-2350 operates at a forward voltage of 2V and a forward current of 25mA.
The power dissipation for this model is 37mW, which is essential for its operation.
The face of the HLMP-2350 LED display is white, enhancing light visibility and contrast.
This LED display complies with RoHS standards, ensuring it meets environmental safety regulations.
The product is supplied in tubes, which facilitates easy handling during automated production assembly.
When handling the HLMP-2350, it is recommended to take anti-static precautions to prevent device damage.
