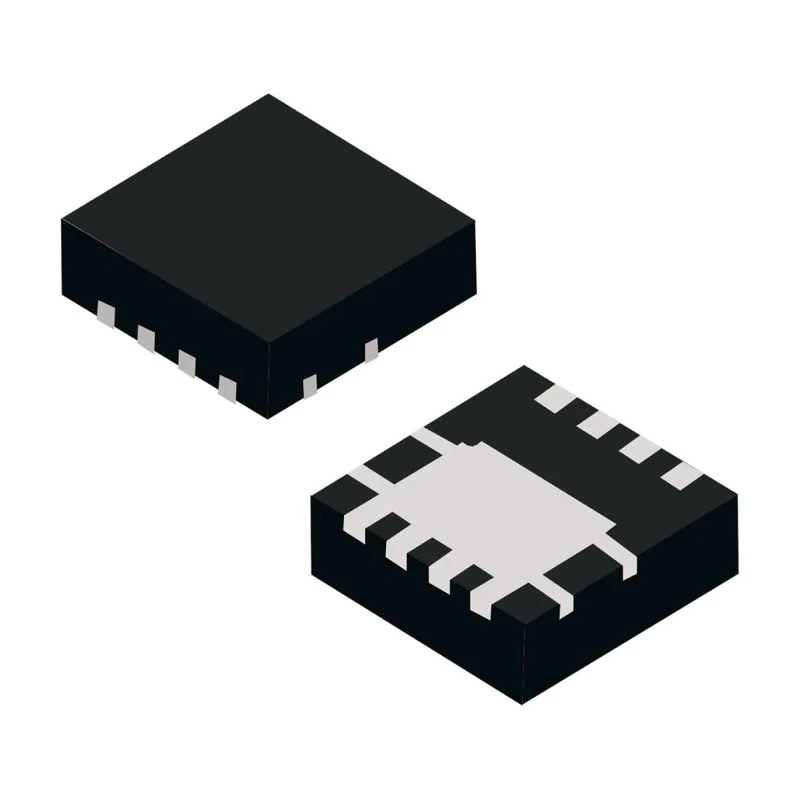

DiodesZetex N-Channel MOSFET, 60 A, 60 V Enhancement Mode, 8-Pin PowerDI3333 Package DMT6008LFG-7
Specifications
| Country of Origin | India |
|---|---|
| Brand | DiodesZetex |
| Height | 0.8mm |
| Length | 3.35mm |
| Model | DMT6008LFG-7 |
| Width | 3.35mm |
| Mount Type | Surface |
| Series | DMT |
| Maximum Operating Temperature | 150°C |
| Package Type | PowerDI3333 |
| Minimum Operating Temperature | -55°C |
| Pin Count | 8 |
| Automotive Standard | AEC-Q101 |
| Channel Type | N |
| Maximum Continuous Drain Current Id | 60A |
| Maximum Drain Source Voltage Vds | 60V |
| Maximum Drain Source Resistance Rds | 11.5mΩ |
| Channel Mode | Enhancement |
| Maximum Power Dissipation Pd | 41W |
| Typical Gate Charge Qg @ Vgs | 50.4nC |
| Maximum Gate Source Voltage Vgs | -12, +12V |
| Forward Voltage Vf | 0.9V |
Key Features
- The MOSFET operates in enhancement mode for efficient switching performance.
- Maximum power dissipation rating is 41 W ensuring reliable thermal handling.
- Low maximum drain-source resistance of 11.5 mΩ optimizes conduction losses.
- Typical gate charge is 50.4 nC at gate-source voltage of 5 V.
- Supports a wide operating temperature range from -55°C to 150°C.
- Forward voltage of 0.9 V provides efficient operation under load conditions.
- Automotive standard compliant to AEC-Q101 ensures ruggedness and quality.
- Compact dimensions with 3.35 mm length, 3.35 mm width, and 0.8 mm height enable high-density PCB layouts.
Product Description
DiodesZetex DMT6008LFG-7 is a high-performance N-Channel MOSFET designed for demanding electronic applications requiring efficient power switching and durability. It provides a maximum continuous drain current of 60 A and operates at up to 60 V drain-source voltage in a compact 8-pin PowerDI3333 surface mount package.
This MOSFET operates in enhancement mode, which is ideal for high-efficiency power management and switching circuits. With a maximum power dissipation of 41 W, it offers solid thermal management suitable for industrial, automotive, and power electronics applications.
The device features a low maximum drain-source resistance (Rds) of 11.5 mΩ, minimizing conduction losses and improving energy efficiency during operation. Its typical gate charge of 50.4 nC at 5 V gate voltage supports fast switching performance, making it suitable for switching regulators and motor drives.
Designed to meet automotive standard AEC-Q101, this component guarantees high reliability under harsh environmental conditions. It supports an operating temperature range from -55°C to 150°C, enabling use in automotive, industrial machinery, and rugged electronic devices.
Physical dimensions of 3.35 mm by 3.35 mm by 0.8 mm height allow compact integration on high-density printed circuit boards, promoting efficient use of PCB space while maintaining performance.
The MOSFET operates with an enhancement mode channel. It has an 8-pin PowerDI3333 package suitable for surface mounting. Low forward voltage of 0.9 V improves power efficiency in circuits. Maximum gate-source voltage rating of -12 V to +12 V ensures operational safety.
Compliant with automotive industry standards for improved reliability.
This DiodesZetex DMT6008LFG-7 MOSFET is a robust solution ideal for use in industrial, automotive, power supply, and electronic control systems. EnvMart offers this component as part of its extensive catalog of semiconductor devices, supporting professional electronic manufacturing and development.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous drain current for this model is 60 A.
It has a maximum drain-source voltage rating of 60 V.
The maximum power dissipation rating is 41 W, ensuring reliable thermal handling.
The typical gate charge at a gate-source voltage of 5 V is 50.4 nC.
The maximum drain-source resistance (Rds) is 11.5 mΩ, which helps optimize conduction losses.
This model has dimensions of 3.35 mm in length, 3.35 mm in width, and 0.8 mm in height.
It supports an operating temperature range from -55°C to 150°C.
This MOSFET comes in an 8-pin PowerDI3333 package suitable for surface mounting.
Yes, it is compliant with the automotive standard AEC-Q101, ensuring ruggedness and quality.
The forward voltage is 0.9 V, which provides efficient operation under load conditions.
The maximum gate-source voltage rating is -12 V to +12 V, ensuring operational safety.
It has an N-channel configuration and operates in enhancement mode.
