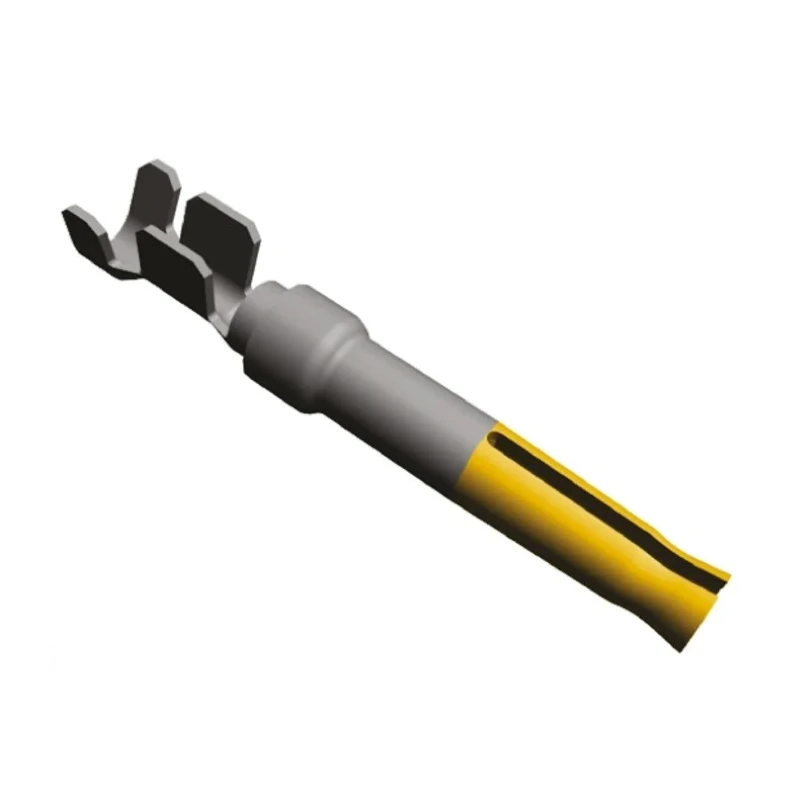

TE Connectivity AMPLIMITE HDP-20 Series Size 20 Female Crimp D-Sub Connector Contact Gold over Nickel Socket 24 AWG 1658538-2

TE Connectivity 1658538-2 is a Female Crimp D-Sub Connector Contact from the AMPLIMITE HDP-20 Series, engineered to provide robust and reliable connections in electronic devices and systems. The contact features gold over nickel plating which enhances corrosion resistance and ensures longevity in challenging environments. Designed specifically for size 20 connectors, this socket contact supports wire sizes ranging from 28 to 24 AWG, covering 0.08mm² to 0.2mm² cross-sectional area suitable for signal and low-power applications.

The contact material used is phosphor bronze, known for its excellent conductivity and mechanical resilience. With a maximum current rating of 1.2 Amperes and a low contact resistance of 15 milliohms, it ensures efficient and stable electrical conduction. Its compact length of 14.35mm allows for dense packing in connectors where space optimization is critical.

The contact termination is via a crimp method, providing a secure mechanical and electrical connection to the wire. These contacts are made to integrate seamlessly within the AMPLIMITE HDP-20 connector system and are compatible with designated crimp and insertion/extraction tools. Typical industrial applications include computing, telecommunications, instrumentation, and control systems where precise and durable connector interfaces are required.

TE Connectivity’s AMPLIMITE HDP-20 Series contacts are suitable for use in electronic equipment manufacturing, industrial controls, aerospace, and automotive sectors, ensuring consistent performance even under vibration and temperature cycling.

Connector contact designed for AMPLIMITE HDP-20 Series connectors. Gold over nickel plating for corrosion resistance and enhanced durability. Phosphor bronze material ensures excellent conductivity and mechanical strength.

Supports wire sizes 28 AWG to 24 AWG with secure crimp termination. Rated for a maximum current of 1.2 Amperes suitable for signal applications. Low contact resistance minimizes signal loss and improves reliability. Compact 14.35mm length fits dense connector assemblies.

Compatible with TE Connectivity crimp and insertion/extraction tools. Ideal for electronics manufacturing, industrial, aerospace, and automotive use cases. Explore the extensive range of TE Connectivity products at EnvMart to find reliable connectors and accessories for your industrial and electronic component needs.
