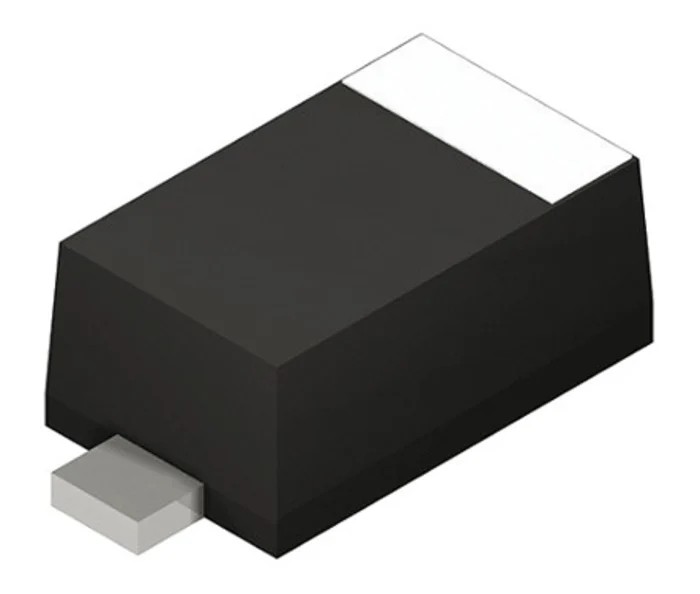

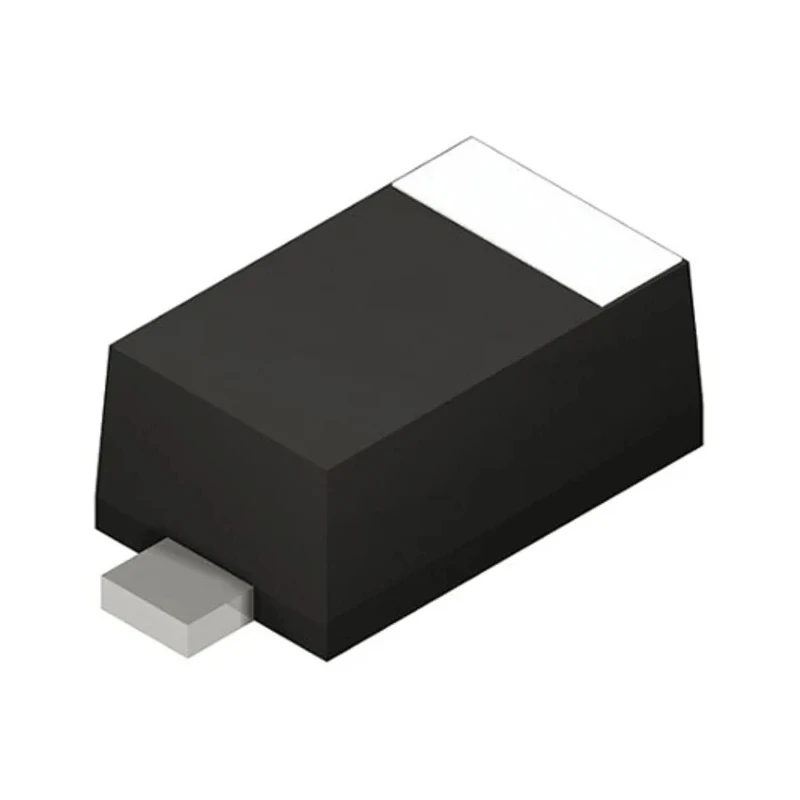

DiodesZetex 30 V 2 A Schottky Diode Single Rectifier 2-Pin Surface Mount SOD-123 MBR230S1F-7
Specifications
| Country of Origin | India |
|---|---|
| Brand | DiodesZetex |
| Height | 1.15mm |
| Length | 2.8mm |
| Model | MBR230S1F-7 |
| Width | 1.9mm |
| Mount Type | Surface |
| Maximum Operating Temperature | 125°C |
| Package Type | SOD-123 |
| Minimum Operating Temperature | -55°C |
| Standards/Approvals | FBI |
| Pin Count | 2 |
| Automotive Standard | AEC-Q101 |
| Maximum Continuous Forward Current If | 2A |
| Peak Reverse Repetitive Voltage Vrrm | 30V |
| Diode Configuration | Single |
| Rectifier Type | Schottky |
| Peak Reverse Current Ir | 1mA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 30A |
| Maximum Forward Voltage Vf | 420mV |
Key Features
- This diode features a Schottky barrier for low forward voltage drop.
- It has a maximum continuous forward current of 2 A for robust power handling.
- The device is supplied in a compact 2-pin SOD-123 surface mount package.
- It offers wide operating temperature range from -55°C to 125°C for durability.
- Peak reverse repetitive voltage is rated at 30 V for reliable performance.
- Designed to meet automotive standard AEC-Q101 for stringent quality.
- Peak non-repetitive forward surge current is specified at 30 A.
- Pin count of 2 enables easy PCB integration in electronic circuits.
Product Description
DiodesZetex MBR230S1F-7 is a high-performance Schottky diode suitable for surface mount applications requiring efficient rectification with low forward voltage drop and fast switching capabilities.
This 2-pin diode in SOD-123 package supports a maximum continuous forward current of 2 A and a peak reverse repetitive voltage of 30 V, making it ideal for power conversion circuits and protection circuits in industrial and automotive environments.
With a compact size measuring 2.8 mm length, 1.9 mm width, and 1.15 mm height, it enables space-saving designs on printed circuit boards.
The diode operates reliably over a wide temperature range from -55°C minimum to 125°C maximum and complies with automotive standard AEC-Q101, assuring high quality and durability under harsh conditions.
Its low forward voltage drop (420 mV) reduces power loss, improving overall system efficiency. The device also withstands peak non-repetitive forward surge currents up to 30 A for transient robustness.
This diode features a Schottky barrier for low forward voltage drop. It has a maximum continuous forward current of 2 A for robust power handling. The device is supplied in a compact 2-pin SOD-123 surface mount package. It offers wide operating temperature range from -55°C to 125°C for durability.
Peak reverse repetitive voltage is rated at 30 V for reliable performance. Designed to meet automotive standard AEC-Q101 for stringent quality. Dimensions are compact with length 2.8 mm, width 1.9 mm, and height 1.15 mm.
Peak non-repetitive forward surge current is specified at 30 A. Pin count of 2 enables easy PCB integration in electronic circuits.
This Schottky diode is commonly used in industrial electronics, automotive power supplies, power management modules, and protection circuits requiring high reliability and efficiency.
Explore more semiconductor and diode products at EnvMart for advanced electronics component solutions.
Explore more products in our Schottky Diodes & Rectifiers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current of this model is 2 A.
The peak reverse repetitive voltage is rated at 30 V.
It operates over a wide temperature range from -55°C to 125°C.
This diode measures 2.8 mm in length, 1.9 mm in width, and 1.15 mm in height.
It comes in a compact 2-pin SOD-123 surface mount package.
The peak non-repetitive forward surge current is specified at 30 A.
It is designed to meet the automotive standard AEC-Q101.
The maximum forward voltage drop is 420 mV.
This model features a single diode configuration.
The Schottky barrier allows for low forward voltage drop, enhancing efficiency in rectification applications.
The peak reverse current is specified at 1 mA.
It is commonly used in industrial electronics, automotive power supplies, and protection circuits requiring high reliability.
