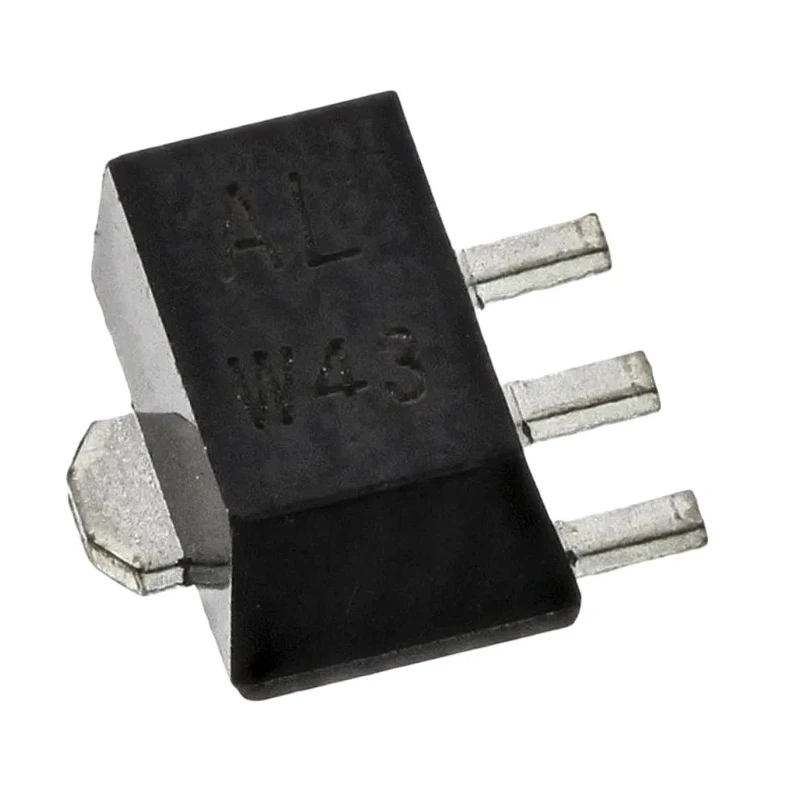

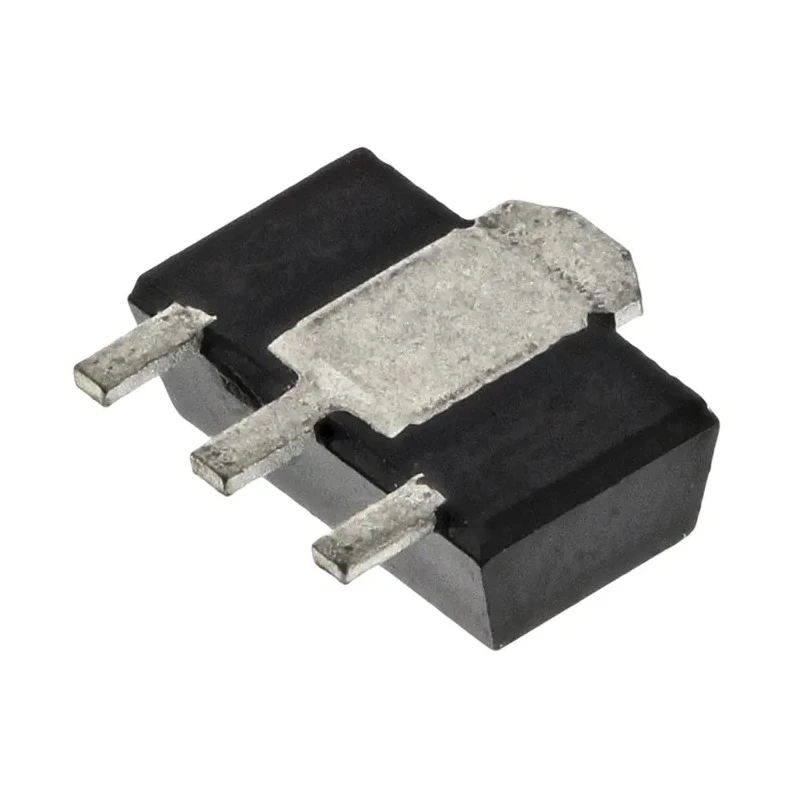

Nexperia PNP Transistor -1 A, -80 V, 4-Pin Surface Mount UPAK Package BCX53-16,115

Nexperia BCX53-16,115 is a high-quality PNP bipolar transistor designed for general purpose applications requiring dependable switching and amplification. This transistor supports a maximum collector current of -1 ampere and withstands collector-emitter voltages up to -80 volts. Packaged in a compact 4-Pin UPAK surface mount format, it simplifies circuit board assembly while ensuring excellent electrical performance.

The device features a robust maximum power dissipation rating of 1.3 watts, allowing it to handle moderate power loads reliably. Its DC current gain minimum of 40 ensures consistent transistor operation in amplification circuits. The transistor is qualified to operate within an extended temperature range from -55°C to +150°C, making it suitable for use in demanding industrial, automotive, and electronic environments.

Furthermore, the BCX53-16,115 meets the RoHS standards assuring it is environmentally compliant, and it possesses the automotive industry’s AEC-Q101 certification, verifying its reliability in automotive electronic systems. The maximum transition frequency of 145 MHz also enables use in high-speed switching and amplification circuits.

This transistor is ideal for applications in industrial electronics, automotive systems, power supplies, and consumer electronics requiring efficient and reliable transistor components. Its surface mount UPAK packaging allows for space-saving and automated manufacturing on PCBs.

Designed for general purpose bipolar transistor applications. Maximum DC collector current of -1 ampere ensures robust performance. Collector-emitter voltage rated at -80 volts for voltage resilience. Compact UPAK 4-pin surface mount package for PCB assembly efficiency.

High maximum power dissipation of 1.3 watts for reliable operation. Minimum DC current gain (hFE) of 40 ensures amplification stability. Wide operating temperature range from -55°C to +150°C for harsh environments. Compliance with RoHS directives guarantees environmental safety.

Automotive standard AEC-Q101 certified for automotive applications. Maximum transition frequency of 145 MHz for high-speed circuits. Explore more semiconductor components from Nexperia on EnvMart for reliable industrial and automotive electronic solutions.
