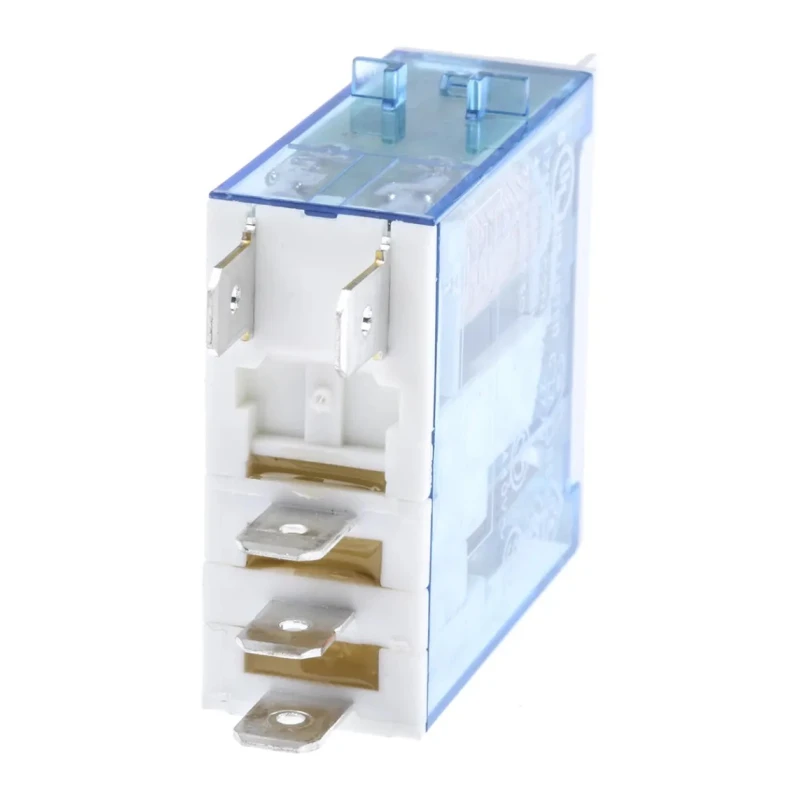

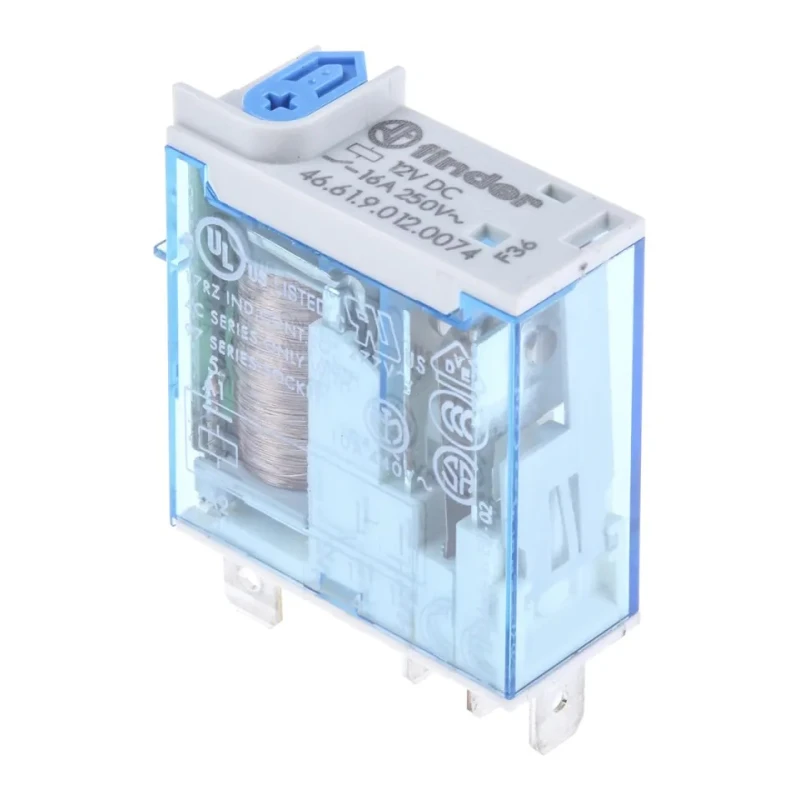

Finder PCB Power Relay 12V DC Coil 16A Switching Current SPDT 46.61.9.012.0074
Specifications
| Country of Origin | Italy |
|---|---|
| Brand | Finder |
| Height | 32.8mm |
| Length | 29mm |
| Width | 12.4mm |
| Mount Type | PCB |
| Contact Material | Silver Alloy |
| Series | 46 |
| Maximum Operating Temperature | 70°C |
| Contact Configuration | SPDT |
| Minimum Operating Temperature | -40°C |
| Switching Current | 16A |
| Terminal type | Quick Connect |
| Standards/Approvals | VDE, RoHS, RINA, EN, EAC, cURus, CSA, CE, CCC |
| Coil Resistance | 300Ω |
| Coil Voltage | 12V dc |
| Switching DC Voltage | 16V dc |
| Switching AC Voltage | 250V ac |
| Coil Power | 500mW |
| Finder Relay, 12V dc Coil, 25A Switching Current, SPDTBrand | Finder |
Key Features
- Quick connect terminal type allows easy installation and replacement.
- High voltage isolation of 6kV between coil and contacts ensures operational safety.
- Maximum switching voltage of 250V AC supports a variety of electrical applications.
- Compact dimensions of 12.4 mm width, 32.8 mm height, and 29 mm length save PCB space.
- Silver alloy contact material offers reliable and durable conductivity.
- Operates reliably in temperature range from -40°C to 70°C.
- Supports switching power up to 4 kVA for demanding applications.
- Ideal for automation controls in blinds, grilles, shutters, lifts, and hoists.
Product Description
Finder 46.61.9.012.0074 is a PCB-mount power relay featuring a 12V DC coil voltage and a 16A switching current with a Single Pole Double Throw (SPDT) contact configuration. This compact relay measures 12.4 mm in width, 32.8 mm in height, and 29 mm in length, making it ideal for space-constrained PCB applications.
The relay offers a maximum switching voltage of 250V AC and a switching power rating of 4 kVA, enabling dependable operation in various industrial and automation contexts. Its silver alloy contacts ensure reliable electrical conductivity and durability over prolonged use.
With a coil resistance of 300 Ω and coil power consumption of 500 mW, the device provides efficient electromagnetic switching while maintaining a high isolation voltage of 6 kV between coil and contacts, enhancing operator safety and system integrity.
Designed to function within a broad temperature range of -40°C to +70°C, this relay suits harsh environments, including marine applications and shipyard machinery control. It is widely used in automation systems such as blinds, grilles, shutters, lift systems, hoists, road and tunnel lighting, cranes, bottling plants, and electrical distribution control circuits.
Quick connect terminal type allows easy installation and replacement. High voltage isolation of 6kV between coil and contacts ensures operational safety. Maximum switching voltage of 250V AC supports a variety of electrical applications.
Compact dimensions streamline PCB design with minimal space usage. Durable silver alloy contact material enhances reliability over extended use. Wide operating temperature range suits industrial and marine environments. Switching power of up to 4 kVA for heavy-duty control applications.
Approvals: VDE, RoHS, RINA, EN, EAC, cURus, CSA, CE, CCC, and UL recognition. Applications include automation of blinds, lifts, shipyard equipment, cranes, and electrical control systems.
This relay offers a robust and efficient solution for electrical and automation control circuits requiring reliable switching performance. Browse additional Finder Power Relays and components on EnvMart for your industrial system needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The switching current rating of this power relay is 16A.
The maximum switching voltage for this model is 250V AC.
The coil voltage of the Finder PCB Power Relay is 12V DC.
This relay has dimensions of 12.4 mm in width, 32.8 mm in height, and 29 mm in length.
The contact configuration of this relay is Single Pole Double Throw (SPDT).
The operating temperature range for this relay is from -40°C to +70°C.
This relay uses a quick connect terminal type for easy installation and replacement.
The coil resistance of this power relay is 300Ω.
The contacts of this relay are made of silver alloy, which enhances conductivity and reliability.
The coil power consumption of this relay is 500 mW.
This power relay has several approvals including VDE, RoHS, RINA, EN, EAC, cURus, CSA, CE, CCC, and UL recognition.
This relay can be used in automation controls for blinds, lifts, hoists, and electrical distribution control circuits.
