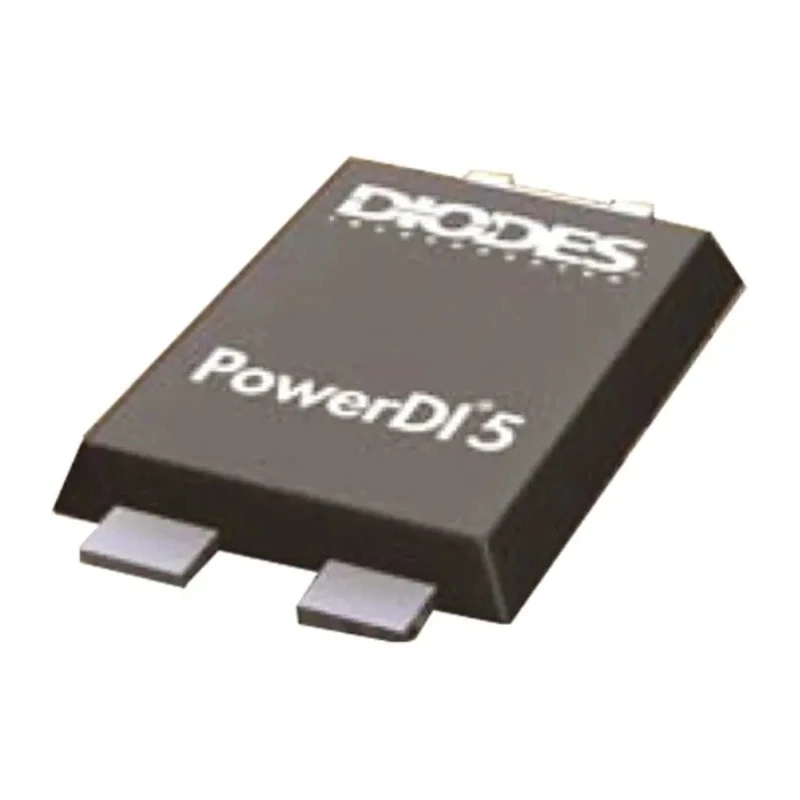

DiodesZetex 100 V 12 A General Purpose Schottky Barrier Diode 3-Pin PowerDI5 SBR12U100P5-13
Specifications
| Country of Origin | India |
|---|---|
| Brand | DiodesZetex |
| Height | 1.15mm |
| Length | 5.45mm |
| Model | SBR12U100P5-13 |
| Width | 4.05mm |
| Mount Type | Surface |
| Series | 12 A SCR |
| Maximum Operating Temperature | 150°C |
| Package Type | PowerDI5 |
| Minimum Operating Temperature | -65°C |
| Standards/Approvals | FBI |
| Pin Count | 3 |
| Automotive Standard | AEC |
| Maximum Continuous Forward Current If | 12A |
| Peak Reverse Repetitive Voltage Vrrm | 100V |
| Diode Configuration | Single |
| Rectifier Type | General Purpose |
| Peak Reverse Current Ir | 40mA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 250A |
| Maximum Forward Voltage Vf | 710mV |
Key Features
- Provides low forward voltage drop of 710 mV for efficient rectification.
- Supports peak non-repetitive forward surge current of 250 A for transient conditions.
- Operates reliably between -65°C and 150°C ambient temperature.
- Meets automotive AEC standards ensuring quality and reliability.
- Ideal for use in power conversion and rectification circuits in industrial and automotive applications.
- Single diode configuration ensures straightforward integration in assemblies.
- Peak reverse current limited to 40 mA enhancing device stability.
Product Description
DiodesZetex SBR12U100P5-13 is a high-reliability Schottky Barrier Diode designed for general purpose rectification applications operating at 100 V peak reverse voltage and capable of handling 12 A continuous forward current. Packaged in a 3-pin PowerDI5 surface mount package, this diode offers excellent thermal stability and low forward voltage drop of approximately 710 mV, making it suitable for high efficiency power circuits.
This diode supports a peak non-repetitive forward surge current of 250 A, allowing robust handling of transient pulses. It operates effectively over a wide temperature range from -65°C to 150°C, which makes it ideal for harsh industrial and automotive environments, especially as it conforms to automotive AEC standards.
The compact footprint with dimensions 5.45 mm by 4.05 mm by 1.15 mm facilitates dense PCB layouts. Its single diode configuration simplifies circuit design and integration while providing reliable rectification with a peak reverse current of just 40 mA, which enhances overall device stability.
Applications include power supply rectifiers, freewheeling diodes in industrial controls, and automotive electronics. The Schottky barrier structure ensures low forward voltage and fast switching, increasing efficiency in power conversion and inverter circuits.
Low forward voltage drop ensures high efficiency. High surge capability for transient current handling. Wide operating temperature range for industrial reliability. Compact surface mount package for dense electronic assemblies.
Automotive standard compliance for enhanced quality assurance. Stable performance with low leakage current. Simple single diode configuration for ease of use. Suitable for power rectification and switching applications. Explore more Schottky Barrier Diodes and rectifiers on EnvMart for your electronic semiconductor needs.
Explore more products in our Schottky Diodes & Rectifiers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current for this diode is 12 A.
This model has a peak reverse voltage rating of 100 V.
The forward voltage drop is approximately 710 mV.
It operates reliably between -65°C and 150°C.
The diode supports a peak non-repetitive forward surge current of 250 A.
It is packaged in a 3-pin PowerDI5 surface mount package.
The peak reverse current is limited to 40 mA.
Yes, it conforms to automotive AEC standards, ensuring quality and reliability.
This diode is suitable for power supply rectifiers, freewheeling diodes in industrial controls, and automotive electronics.
The height of this diode is 1.15 mm.
The width is 4.05 mm and the length is 5.45 mm.
It uses a single diode configuration, simplifying circuit design and integration.
