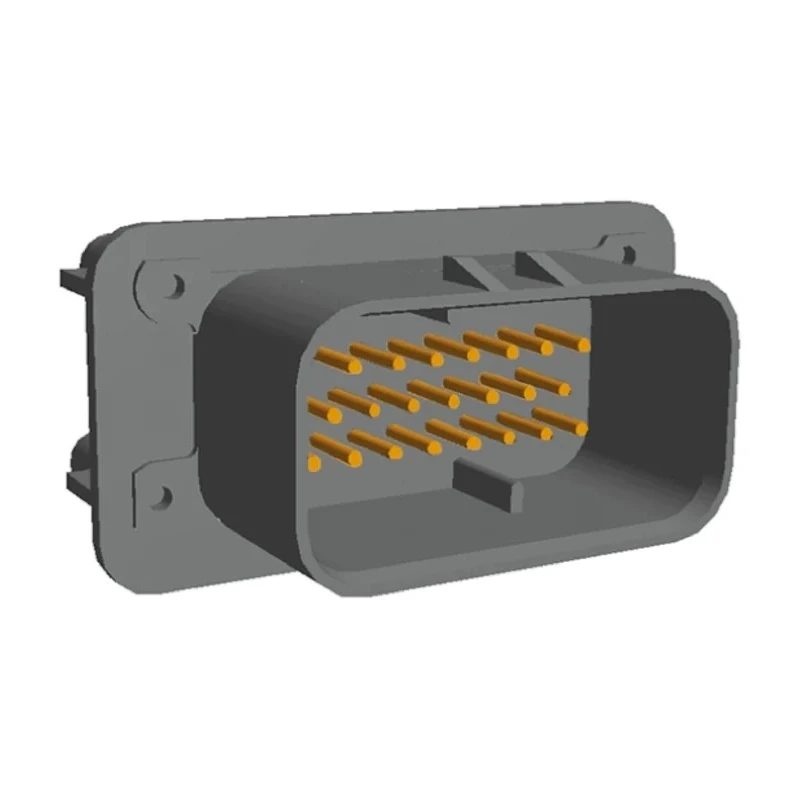

TE Connectivity Ampseal Automotive Connector Male Grey Panel Mount 23 Way Solder Termination 1-776200-4
Specifications
| Country of Origin | India |
|---|---|
| Diameter | 1.3mm |
| Brand | TE Connectivity |
| Colour | Grey |
| Height | 32.1mm |
| Depth | 34.3mm |
| IP Rating | IP6K9K |
| Width | 60.8mm |
| Gender | Male |
| Mount Type | Panel Mount |
| Housing Material | Fibreglass Reinforced Polybutylene Terephthalate |
| Contact Material | Brass |
| Series | Ampseal |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Sub Type | PCB Connector |
| Minimum Operating Temperature | -40°C |
| Number of Rows | 3 |
| Contact Plating | Gold |
| Number of Contacts | 23 |
Key Features
- Offers a reliable panel mount design with 23 contacts for secure connections.
- Constructed with fibreglass reinforced polybutylene terephthalate housing providing durability.
- Features brass contacts plated with gold to ensure excellent conductivity and corrosion resistance.
- Rated with IP6K9K for high protection against dust and water ingress.
- Operates effectively in temperatures ranging from -40°C to 125°C.
- Designed with 3 rows and a 1.3 mm diameter contact size for precision fit.
- Ideal for use in automotive, industrial, and electrical component assemblies.
Product Description
TE Connectivity 1-776200-4 Ampseal Automotive Connector Male is a high-quality grey panel mount connector designed for reliable automotive electrical connections. Featuring a 23-contact configuration with solder termination, this connector is built for durability and superior electrical performance.
The housing is made from fibreglass reinforced polybutylene terephthalate which ensures ruggedness and resistance to harsh environments. The brass contacts are gold-plated to offer enhanced conductivity and long-lasting corrosion resistance.
This panel mount connector has 3 rows of contacts with a diameter of 1.3 mm each, designed to fit precisely in automotive and industrial electrical systems. The connector is rated IP6K9K, providing excellent protection against dust and high-pressure water jets, making it suitable for demanding environments.
Operating temperature ranges from -40°C up to 125°C, enabling reliable performance in extreme conditions. Its dimensions are 60.8 mm width, 32.1 mm height, and 34.3 mm depth, optimizing space while maintaining robust connectivity.
This TE Connectivity product is ideal for applications in automotive manufacturing, electrical assemblies, industrial controls, and other harsh-environment installations requiring reliable connection integrity.
Offers a reliable panel mount design with 23 contacts for secure connections. Constructed with fibreglass reinforced polybutylene terephthalate housing providing durability. Features brass contacts plated with gold to ensure excellent conductivity and corrosion resistance.
Rated with IP6K9K for high protection against dust and water ingress. Operates effectively in temperatures ranging from -40°C to 125°C. Designed with 3 rows and a 1.3 mm diameter contact size for precision fit. Ideal for use in automotive, industrial, and electrical component assemblies.
Explore extended selections of Automotive Connectors and electrical components at EnvMart to find complementary solutions for your industrial and automotive projects.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model features a 23-contact configuration with solder termination, designed for reliable connections in automotive and industrial applications.
The housing is made from fibreglass reinforced polybutylene terephthalate, while the contacts are made of brass and plated with gold for enhanced conductivity and corrosion resistance.
It is rated IP6K9K, providing excellent protection against dust and high-pressure water jets, making it suitable for demanding environments.
The dimensions are 60.8 mm in width, 32.1 mm in height, and 34.3 mm in depth.
It operates effectively in temperatures ranging from -40°C to 125°C, allowing for reliable performance in extreme conditions.
This connector is designed with 3 rows of contacts, each with a diameter of 1.3 mm for a precise fit.
It features a panel mount design, which is suitable for secure installations in various applications.
It is ideal for use in automotive manufacturing, electrical assemblies, industrial controls, and other harsh-environment installations requiring reliable connection integrity.
This connector is male, designed for use in various electrical connections.
The gold plating on the brass contacts ensures excellent conductivity and provides long-lasting corrosion resistance, enhancing the overall performance of the connector.
The country of origin for this connector is India.
Yes, this connector is part of the Ampseal series by TE Connectivity, which is known for its reliable automotive connectors.
