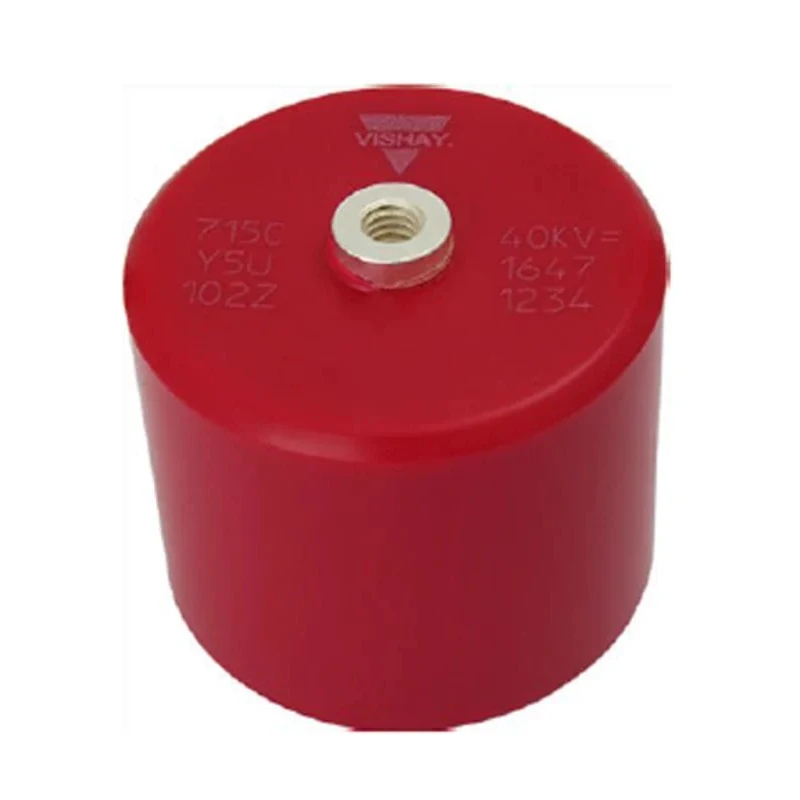

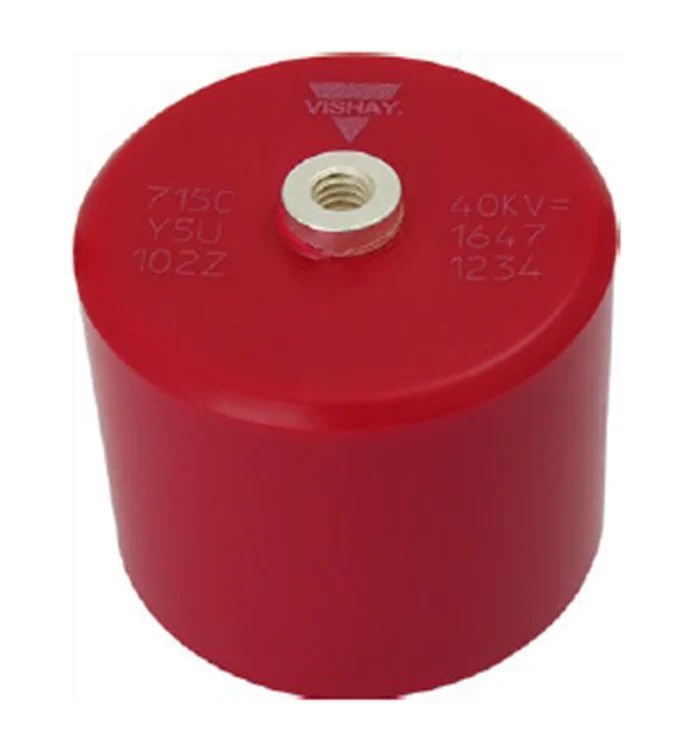

Vishay Single Layer Ceramic Capacitor 10 nF 15kV dc Y5U Dielectric Screw Terminal 85°C Max Op. Temp. 715C15DKS10
Specifications
| Country of Origin | Germany |
|---|---|
| Voltage | 15kV dc |
| Diameter | 45.7mm |
| Brand | Vishay |
| Height | 22.9mm |
| Model | 715C15DKS10 |
| Packaging | Bulk |
| Mount Type | Screw |
| Series | 715C |
| Maximum Operating Temperature | 85°C |
| Tolerance | -20 to 80 % |
| Capacitance | 10nF |
| Minimum Operating Temperature | -30°C |
| Terminal type | Screw |
| Dissipation Factor | 0.02% |
| Standards/Approvals | IEC 61249-2-21, EC, RoHS |
| Package/Case | 0814 |
| Pin Count | 2 |
| Dielectric | Y5U |
| Suppression Class | Class II |
Key Features
- Capacitance of 10 nF suitable for high voltage applications.
- Rated for 15 kV direct current operation ensuring reliability.
- Y5U dielectric providing specified tolerance of -20 to 80%.
- Mount type is screw terminal for secure connections.
- Maximum operating temperature is 85 °C ensuring stable performance.
- Package type is bulk, suitable for production batch usage.
- Complies with IEC 61249-2-21, EC, and RoHS standards.
- Dissipation factor of 0.02% indicating low energy loss.
Product Description
Vishay 715C15DKS10 single layer ceramic capacitor features a capacitance of 10 nF and is rated for 15 kV dc operation. Designed with a Y5U dielectric material, it offers a capacitance tolerance range of -20 to 80% and a dissipation factor of just 0.02%. This capacitor uses screw terminal mounting for durable and reliable connections and is packaged in bulk suitable for production usage.
Its epoxy coated ceramic disc construction provides high insulation resistance and low inductance, making it ideal for high voltage power supplies, x-ray equipment, CO2 lasers, welding equipment, and various industrial applications where high voltage stability is essential.
The capacitor measures 45.7 mm in diameter with a height of 22.9 mm and is rated for maximum operating temperature of 85°C, ensuring dependable performance under rigorous conditions. It complies with IEC 61249-2-21, EC directives, and RoHS standards for quality and safety.
Produced in Germany, the Vishay 715C series is a trusted solution for demanding electronic circuits requiring stable high voltage components. Its screw terminal type facilitates ease of installation and secure electrical contacts.
Capacitance: 10 nF. Voltage rating: 15 kV dc. Dielectric: Y5U. Mount type: Screw terminal. Operating temperature: -30°C to 85°C. Dimensions: 45.7 mm diameter, 22.9 mm height. Compliance: IEC 61249-2-21, EC, RoHS. Dissipation factor: 0.02%.
Manufactured in Germany.
Ideal for industrial, laboratory, electronic manufacturing, and high voltage power applications. Explore more in our Single Layer Ceramic Capacitors collection on EnvMart for compatible parts and accessories.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It has a capacitance of 10 nF, suitable for high voltage applications.
The capacitor is rated for a maximum voltage of 15 kV dc, ensuring reliability in high voltage applications.
It uses a Y5U dielectric, providing a capacitance tolerance range of -20 to 80%.
The maximum operating temperature is 85 °C, allowing stable performance under rigorous conditions.
This model has a diameter of 45.7 mm and a height of 22.9 mm.
It features a screw terminal mount type for secure connections.
The dissipation factor is 0.02%, indicating low energy loss during operation.
It is packaged in bulk, making it suitable for production batch usage.
It complies with IEC 61249-2-21, EC directives, and RoHS standards for quality and safety.
The minimum operating temperature is -30 °C, allowing for a wide operational range.
This capacitor is manufactured in Germany, ensuring quality production standards.
