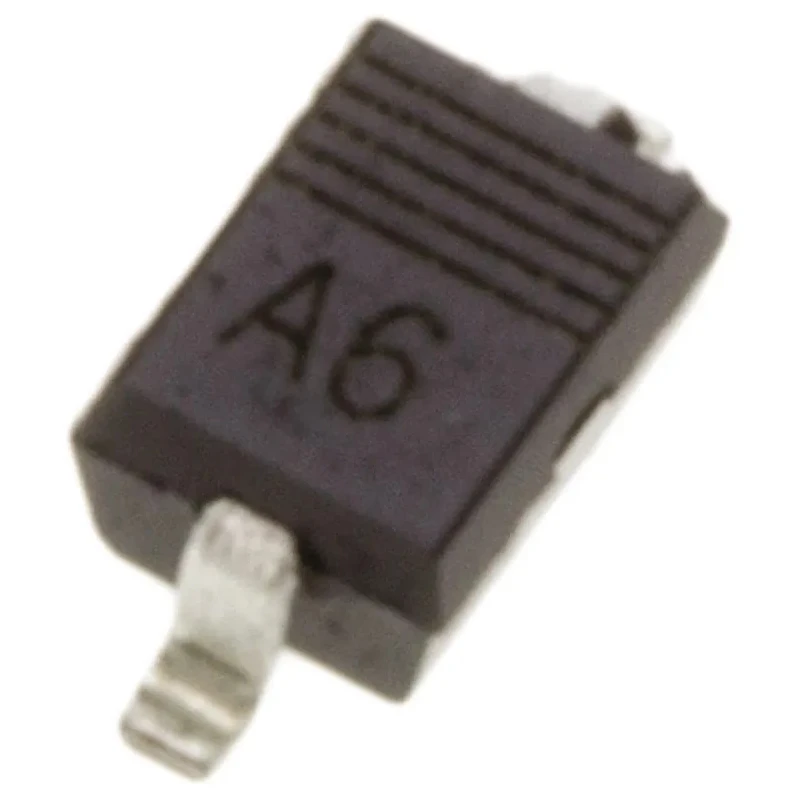

Nexperia 1.12 V Zener Diode Single 300 mW 2% Surface Mount 2-Pin SOD-323 BZX384-B12,115

Name: Nexperia 1.12 V Zener Diode Single 300 mW 2% Surface Mount 2-Pin SOD-323 BZX384-B12,115
Brand: Nexperia
SKU: 260712
Price: 0.06 USD
Availability: InStock



Category Zener Diode Brand Nexperia Condition New

Specifications

Country of Origin	India
Brand	Nexperia
Height	1.1mm
Length	2.7mm
Model	BZX384-B12,115
Mount Type	Surface
Series	BZX384
Maximum Operating Temperature	150°C
Package Type	SOD-323
Minimum Operating Temperature	-65°C
Pin Count	2
Number of Elements per Chip	1
Automotive Standard	AEC-Q101
Maximum Power Dissipation Pd	300mW
Diode Configuration	Single
Test Current It	5mA
Maximum Reverse Leakage Current	100nA
Nominal Zener Voltage Vz	12V
Zener Type	Voltage Regulator
Maximum Zener Impedance	25Ω
Typical Voltage Temperature Coefficient	8.4mV/°C
Surface Mount case	SOD-323 (SC-76)
onsemi 1, 12 V Zener Diode, Single 200 mW 2 % Surface 2-Pin SOD-323Brand	onsemi

Key Features

It features a 2-pin SOD-323 package suitable for surface mounting.
The diode is designed as a voltage regulator with nominal zener voltage of 12 V.
Maximum power dissipation rating is 300 milliwatts.
Has a maximum reverse leakage current of 100 nA ensuring low leakage.
Temperature operation range is from -65°C to 150°C for reliable performance.
Test current for the diode is specified at 5 mA.
Typical voltage temperature coefficient is 8.4 mV/°C ensuring stable voltage regulation.
Complies with automotive standard AEC-Q101 for automotive electronic applications.

Product Description

Nexperia BZX384-B12,115 is a 1.12 V surface mount Zener Diode with a single diode configuration designed for effective voltage regulation in electronic circuits. This device is rated for a maximum power dissipation of 300 mW and offers a voltage tolerance of ±2%, ensuring precision voltage regulation for sensitive applications.

Packaged in a SOD-323 (SC-76) surface mount case with 2 pins, it is suitable for automated PCB assembly and compact electronics. The diode features low maximum reverse leakage current of 100 nA and a test current of 5 mA, delivering efficient and reliable operation.

Operable in a wide temperature range between -65°C and 150°C, this diode meets the demanding requirements for automotive applications as confirmed by AEC-Q101 compliance. Its typical voltage temperature coefficient of 8.4 mV/°C minimizes variation due to temperature changes, providing stable performance in varying environments.

Single diode configuration for voltage regulation. Nominal zener voltage of 12 V with ±2% tolerance. Surface mount package type SOD-323 supporting compact designs. Maximum power dissipation is 300 mW for moderate power electronic circuits.

Wide operating temperature range from -65°C to 150°C. Automotive standard AEC-Q101 compliant. Low leakage current of 100 nA ensures minimal power loss. Compact dimensions: 2.7 mm length and 1.1 mm height. Ideal for industrial, automotive, telecommunications, and general electronics voltage regulation and protection tasks.
