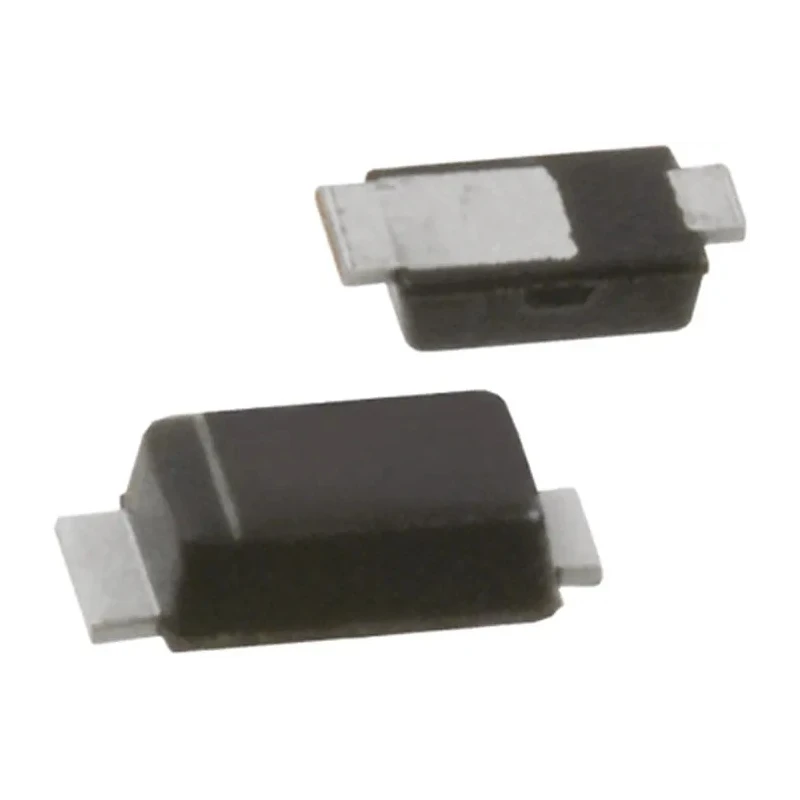

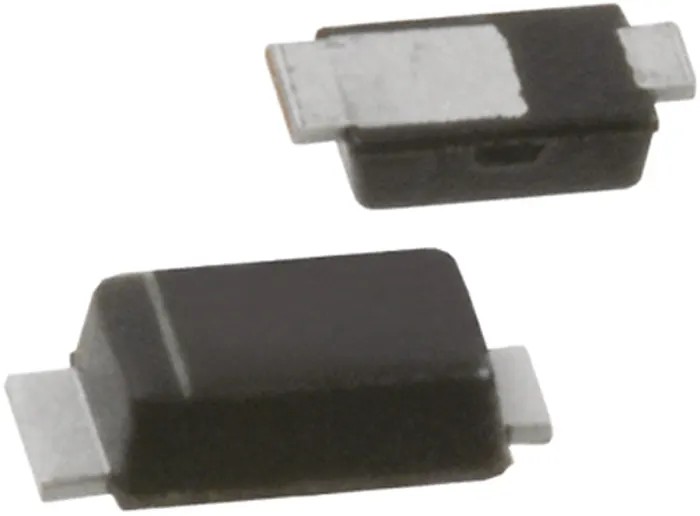

DiodesZetex Schottky Diode 20 V 1 A 2-Pin PowerDI323 PD3S120L-7
Specifications
| Country of Origin | India |
|---|---|
| Brand | DiodesZetex |
| Height | 1.95mm |
| Length | 1.95mm |
| Model | PD3S120L-7 |
| Width | 1.3mm |
| Mount Type | Surface |
| Series | PD3S120L |
| Maximum Operating Temperature | 125°C |
| Package Type | PowerDI323 |
| Minimum Operating Temperature | -65°C |
| Standards/Approvals | FBI |
| Pin Count | 2 |
| Automotive Standard | AEC-Q101 |
| Maximum Continuous Forward Current If | 1A |
| Peak Reverse Repetitive Voltage Vrrm | 20V |
| Diode Configuration | Single |
| Rectifier Type | Schottky |
| Peak Reverse Current Ir | 30mA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 33A |
| Maximum Forward Voltage Vf | 420mV |
Key Features
- This diode has a low forward voltage of 420 mV for efficient performance.
- It supports a peak non-repetitive forward surge current of 33 A for transient conditions.
- The diode operates reliably within a temperature range of -65°C to 125°C.
- Featured with automotive standard AEC-Q101 certification ensuring quality and reliability.
- Compact dimensions of 1.95 mm length, 1.3 mm width, and 1.95 mm height suit surface mount technology.
- Single diode configuration with 2 pins for easy PCB integration.
- Designed as a Super Barrier Rectifier for enhanced thermal stability and reliability.
- Surface mount type with PowerDI323 package for space-efficient circuit design.
Product Description
DiodesZetex PD3S120L-7 Schottky Diode 2-Pin PowerDI323 is a high performance semiconductor device designed for efficient rectification in electronic circuits.
Offering a maximum continuous forward current of 1 A and a peak reverse repetitive voltage of 20 V, this diode ensures excellent conduction with minimal losses, characterized by a low forward voltage drop of 420 mV.
The device provides robustness with a peak non-repetitive forward surge current rating of 33 A, accommodating short transient overloads. It operates reliably under extreme temperature conditions from -65°C up to 125°C, making it suitable for a wide range of industrial and automotive applications.
Compliant with automotive standard AEC-Q101, the diode meets stringent quality and reliability benchmarks required for automotive electronics and industrial equipment.
The compact PowerDI323 package with dimensions 1.95 mm (length) x 1.3 mm (width) x 1.95 mm (height) supports surface mount technology for modern PCB designs, enabling space-saving and automated assembly.
Ideal for use in power supplies, switching circuits, voltage clamping, and protection circuits, the PD3S120L-7 provides improved forward voltage and thermal stability compared to traditional Schottky diodes, classified as Super Barrier Rectifiers.
This diode has a low forward voltage for efficient current conduction. Compact 2-pin surface mount package for easy integration into circuit boards. Wide operating temperature range supports robust industrial applications.
Compliance with automotive standards ensures suitability for automotive electronics. High peak surge current rating allows handling of transient overloads. Single diode configuration ideal for rectification tasks. PowerDI323 package enhances thermal performance and reliability.
Designed for use in power, protection, and switching circuits within electronics manufacturing and automotive sectors. Explore more Schottky Diodes & Rectifiers in the Semiconductor category at EnvMart.
Explore more products in our Schottky Diodes & Rectifiers category.
