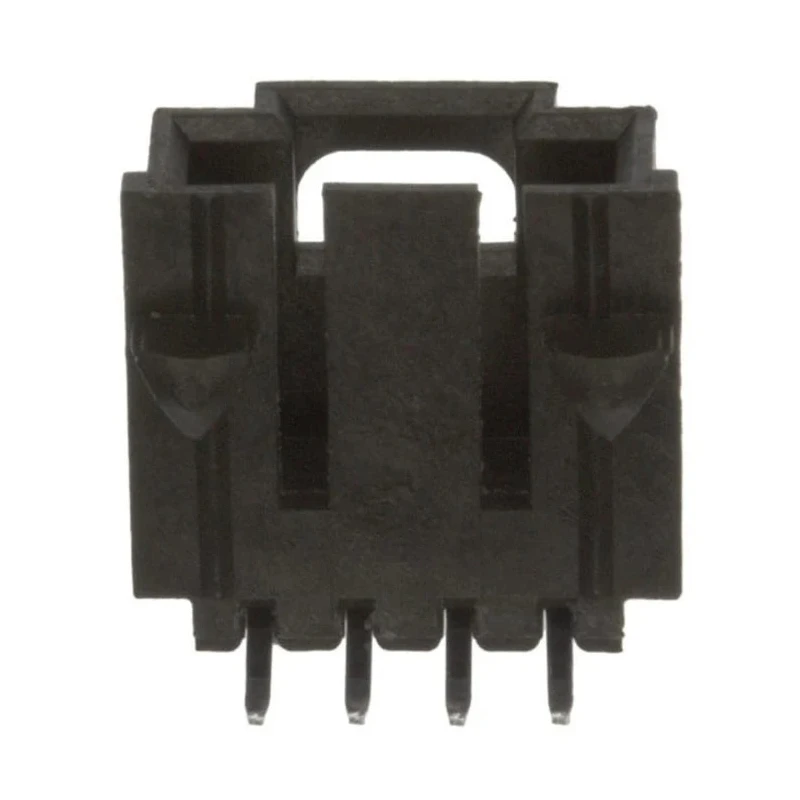

Molex SL Series Right Angle Through Hole PCB Header 4 Contacts 2.54 mm Pitch 1 Row Shrouded 705550003

Molex 705550003 SL Series Right Angle Through Hole PCB Header offers a compact and reliable solution for wire-to-board connections in electronics. Featuring 4 contacts spaced at a 2.54 mm pitch in a single row, this shrouded male connector ensures secure and precise mating. Its right angle orientation facilitates optimal PCB layout and space management.

Constructed with a high temperature thermoplastic housing, this header withstands demanding thermal environments. The brass and phosphor bronze contact materials with tin plating deliver robust electrical conductivity and corrosion resistance. It supports a current rating of 3A and operates within a temperature range of -40°C to 105°C, making it suitable for industrial, commercial, and laboratory electronics applications.

The through hole mount type provides firm mechanical stability on the printed circuit board. The contact design includes a 3.3 mm tail pin length and 6.1 mm mating pin length to ensure secure connections with minimal signal loss. The product meets rigorous CSA LR19980 and UL E29179 approvals, reinforcing its compliance with international safety and quality standards.

This PCB header is ideal for use in electronic modules, communication devices, instrumentation, and control systems requiring durable and dependable connector solutions. Packaged and shipped with care, it facilitates ease of installation and long service life.

High temperature thermoplastic housing ensures durability under harsh conditions. Rated for 3A current with brass and phosphor bronze contacts plated with tin for excellent conductivity. Through hole mount type enables strong mechanical and electrical connection to PCBs.

Operating temperature ranges from -40°C to 105°C for versatile applications. Male contact gender with 3.3mm tail pin length and 6.1mm mating pin length for secure engagement. Complies with CSA LR19980 and UL E29179 standards for safety and performance.

Voltage rating of 250V suitable for various electronic circuits. Designed and manufactured in the United States ensuring high quality. Explore more from Molex and related PCB Headers in the Electronics Components category on EnvMart for your industrial and commercial project needs.
