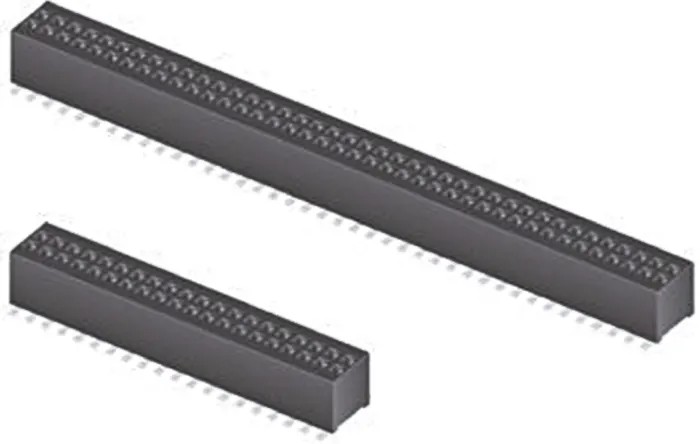

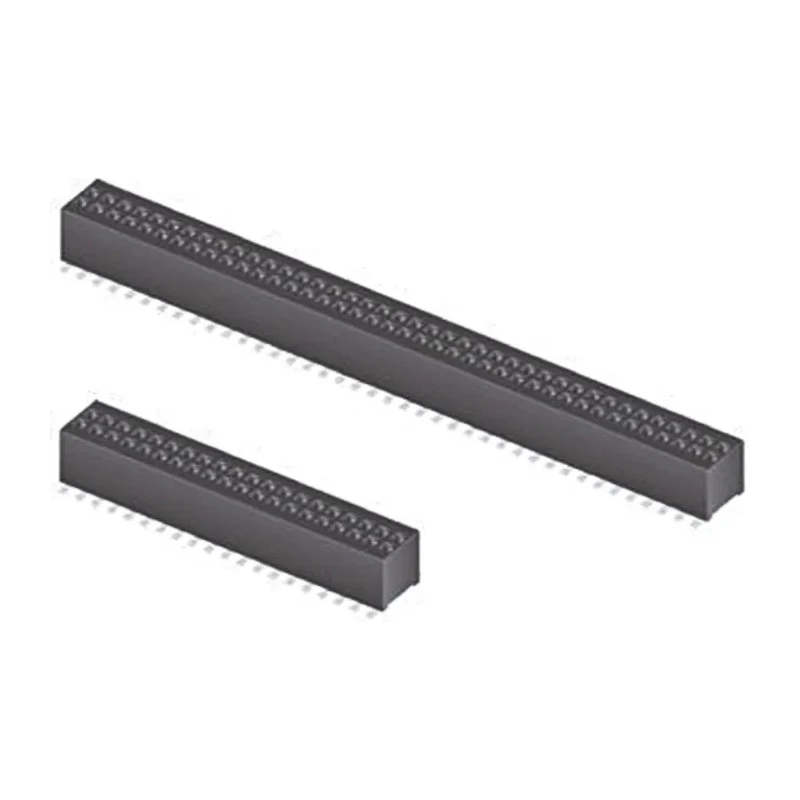

Samtec MLE Series Straight Surface PCB Socket 18-Contact 2 Row 1 mm Pitch Solder MLE-109-01-G-DV-A
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 310V |
| Brand | Samtec |
| Orientation | Straight |
| Current | 2.9A |
| Model | MLE-109-01-G-DV-A |
| Mount Type | Surface |
| Housing Material | Liquid Crystal Polymer |
| Contact Material | Beryllium Copper Alloy |
| Series | MLE |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Sub Type | Socket Strip |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 2 |
| Pitch | 1mm |
| Standards/Approvals | RoHS |
| Contact Plating | Gold |
| Number of Contacts | 18 |
| Connector System | Board-to-Board |
Key Features
- The socket supports a board-to-board connector system.
- The housing is made from liquid crystal polymer, ensuring durability and heat resistance.
- Contacts are made from beryllium copper alloy with gold plating for excellent conductivity and corrosion resistance.
- The socket operates reliably from -55°C to 125°C temperature range.
- It handles up to 2.9A current at a voltage rating of 310V.
- The orientation is straight and designed for surface mounting on PCBs.
- The MLE series provides cost-effective single beam socket strips suitable for pass-through applications.
- Packaging options include tape and reel for automated assembly processes.
Product Description
The Samtec MLE Series Straight Surface PCB Socket model MLE-109-01-G-DV-A is an 18-contact, 2 row socket strip with a 1 mm pitch designed specifically for solder termination in board-to-board connector systems. Manufactured with a housing material of liquid crystal polymer, this socket ensures high durability and thermal stability suitable for harsh operating environments.
The contact material is a beryllium copper alloy plated with gold, providing excellent electrical conductivity and reliable corrosion resistance over extensive use. Rated for a current of 2.9A and voltage of 310V, this socket supports demanding electronic applications.
Operating reliably within a temperature range of -55°C to 125°C, the MLE-109-01-G-DV-A socket is suitable for industrial, electronic manufacturing, communication equipment, and other applications requiring reliable PCB interconnection.
The orientation is straight and mounting type is surface mount, simplifying assembly on printed circuit boards. The design features a cost-effective Tiger Beam contact system ideal for pass-through applications and supports optional tape and reel packaging for automated manufacturing processes.
This series is widely accepted for cost-effective single beam socket strips available up to 100 positions, meeting various industrial and electronic component requirements with compliance to RoHS standards.
The socket supports a board-to-board connector system. Housing is liquid crystal polymer for durability. Contacts are beryllium copper alloy with gold plating. Rated for 2.9A current and 310V voltage. Operating temperature range from -55°C to 125°C.
Surface mount and straight orientation suitable for PCB applications. Cost-effective Tiger Beam contact system for pass-through applications. Available with optional tape and reel packaging.
The Samtec MLE Series PCB Sockets cater to electronics manufacturing and industrial applications. Browse more PCB connectors and sockets on EnvMart for assembly and electronic system needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This socket has a current rating of 2.9A.
It is rated for a voltage of 310V.
The MLE-109-01-G-DV-A socket operates reliably within a temperature range of -55°C to 125°C.
The housing is made from liquid crystal polymer, and the contacts are made from beryllium copper alloy with gold plating.
This model features solder termination for secure connections.
It is designed for surface mounting on printed circuit boards (PCBs).
This socket has 18 contacts arranged in 2 rows with a 1 mm pitch.
It supports a board-to-board connector system.
Yes, it complies with RoHS standards.
The orientation of this socket is straight.
It is available with optional tape and reel packaging for automated assembly processes.
It is suitable for industrial, electronic manufacturing, and communication equipment applications.
