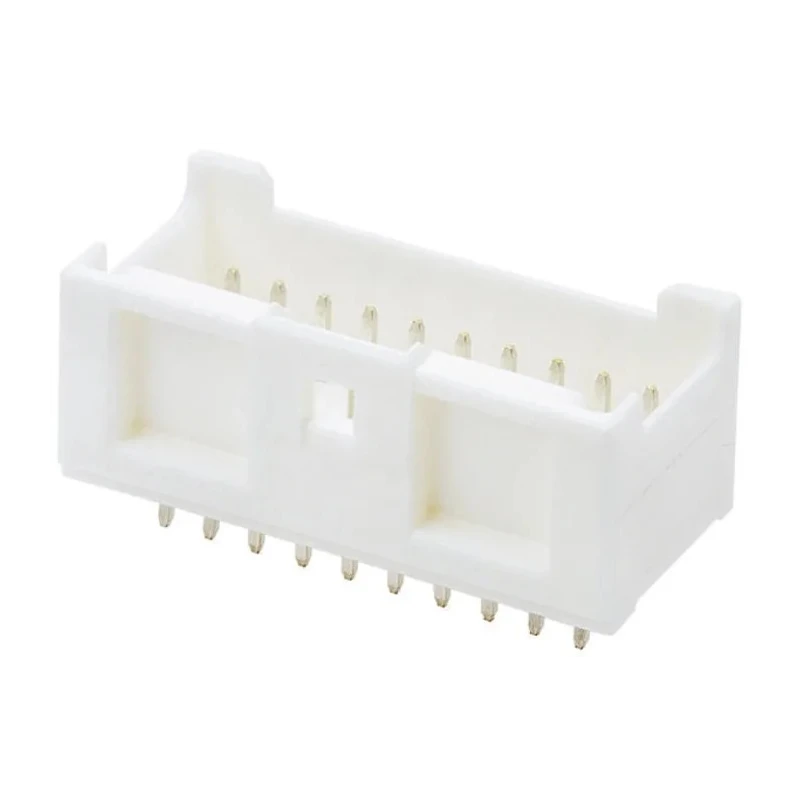

Molex MicroClasp Series Straight Surface PCB Header, 16 Contacts, 2 mm Pitch, 2 Row, Shrouded 55917-1610

The Molex 55917-1610 MicroClasp Series Straight Surface PCB Header is a high-quality, double-row vertical header designed for wire-to-board connections at a 2.00 mm pitch. Featuring 16 brass contacts plated with tin housed within a robust polyester shrouded body, it ensures secure mating with a unique inner positive lock mechanism that gives an audible click on engagement.

This connector supports a continuous current of 3 A and a voltage rating of 250 V, making it suitable for demanding electrical applications. It operates reliably in temperature ranges from -40°C up to 105°C, accommodating a wide variety of industrial, laboratory, manufacturing, and electronic assembly environments.

The low insertion force and two-point contact design guarantee ease of assembly and enhanced contact reliability while the housing lance system reduces PCB space requirements. Tail pins length of 3.2 mm and mating pins of 2 mm allow for precise solder termination on the PCB, ensuring mechanical strength and electrical integrity.

Applications include telecommunications equipment, industrial control systems, power supplies, and compact electronic modules where space and reliability are critical. The shrouded 2-row configuration provides additional mechanical protection and prevents misalignment during mating cycles.

Shrouded double row vertical header design with 16 contacts at 2 mm pitch. Durable polyester housing and brass contacts with tin plating. Inner positive lock with audible click for secure connection. Supports up to 3 A current and 250 V voltage rating.

Operating temperature range from -40°C to 105°C suitable for industrial applications. Low insertion force terminal design for easy assembly. Wire-to-board connector system designed for compact electronic devices.

Choose Molex MicroClasp Series PCB Headers for reliable, space-saving connections in demanding electronic and industrial applications. Browse our wide selection of connectors at EnvMart for your next project.
