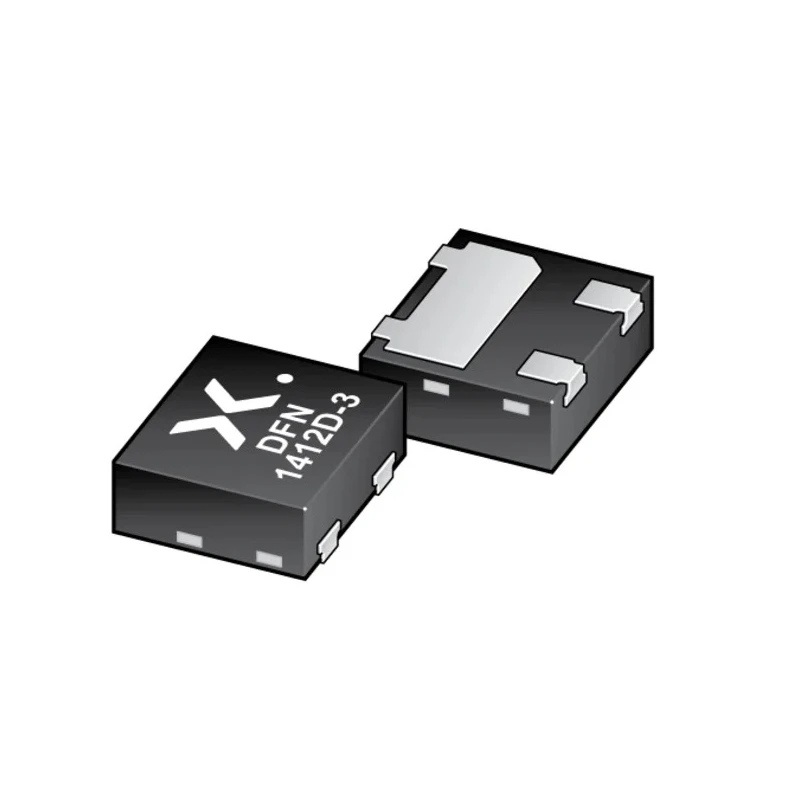

Nexperia 30 V 200 mA Schottky Barrier Diode DFN1412D-3 Package BAT54QC-QZ
Specifications
| Country of Origin | India |
|---|---|
| Brand | Nexperia |
| Model | BAT54QC-QZ |
| Mount Type | Surface |
| Series | BAT54QC-Q |
| Maximum Operating Temperature | 150°C |
| Package Type | DFN1412D-3 |
| Minimum Operating Temperature | -55°C |
| Standards/Approvals | RoHS |
| Automotive Standard | AEC-Q101 |
| Maximum Continuous Forward Current If | 200mA |
| Peak Reverse Repetitive Voltage Vrrm | 30V |
| Diode Configuration | Single |
| Rectifier Type | Schottky |
| Peak Non-Repetitive Forward Surge Current Ifsm | 200mA |
| Maximum Forward Voltage Vf | 380mV |
Key Features
- Ultra small DFN1412D-3 leadless surface-mount plastic package optimized for compact PCB design.
- Low forward voltage drop of 380 mV ensures efficient power conversion and low losses.
- Maximum continuous forward current is 200 mA, suitable for low current applications.
- Peak reverse repetitive voltage of 30 V supports robust voltage blocking capability.
- Operating temperature range of -55°C to 150°C allows usage in automotive and industrial environments.
- Qualified according to AEC-Q101 automotive standard ensuring high reliability and quality.
- Low package height of 0.5 mm facilitates slim device assembly and automatic optical inspection compatibility.
- Suitable for automatic optical inspection (AOI) of solder joints for consistent quality control.
Product Description
Nexperia BAT54QC-QZ Schottky Barrier Diode is encapsulated in an ultra small DFN1412D-3 plastic surface-mounted device (SMD) package designed for compact and efficient power management circuits. It features a maximum continuous forward current of 200 mA and a peak reverse voltage rating of 30 V, making it ideal for low voltage, low current applications in automotive and industrial electronics.
The diode exhibits a low forward voltage of 380 mV, which reduces power losses and improves circuit efficiency. It operates reliably across a wide temperature range from -55°C to 150°C, meeting the rigorous requirements for automotive-grade components by being qualified to AEC-Q101 standards.
The leadless package design includes side-wettable flanks and a low profile of 0.5 mm, making it suitable for high-density PCB layouts and automated assembly processes including automatic optical inspection (AOI) for solder joint verification. Its Schottky diode construction supports fast switching speeds and low capacitance, critical for high-frequency electronic circuits.
This component finds industrial use in power supply protection, rectification, voltage clamping, and signal sensing circuits within automotive electronics, power management systems, and general industrial modules. The package supports assembly efficiency and space savings in compact electronic designs.
Ultra small DFN1412D-3 leadless SMD plastic package with side-wettable flanks. Low forward voltage of 380 mV reduces power loss and heat. Maximum continuous forward current of 200 mA suitable for low current applications.
Peak reverse voltage of 30 V ensures robust diode protection. Wide operating temperature range: -55°C to 150°C for harsh environments. Qualified to automotive AEC-Q101 standard for reliable automotive use. Compatible with automatic optical inspection (AOI) processes for quality assurance.
Schottky diode design offers fast switching and low capacitance.
This Nexperia Schottky Diode enhances efficiency and reliability in industrial, automotive, and power management electronics. Explore a broad range of semiconductor and diode solutions on EnvMart for your technical and industrial needs.
Explore more products in our Schottky Diodes & Rectifiers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current for the BAT54QC-QZ Schottky diode is 200 mA, making it suitable for low current applications.
This model has a peak reverse repetitive voltage rating of 30 V, providing robust voltage blocking capability.
The forward voltage drop for this Schottky diode is 380 mV, which helps reduce power losses in circuits.
The operating temperature range for the BAT54QC-QZ is from -55°C to 150°C, suitable for automotive and industrial environments.
It is encapsulated in an ultra small DFN1412D-3 leadless surface-mount plastic package, optimized for compact PCB design.
Yes, this diode is qualified according to the AEC-Q101 automotive standard, ensuring high reliability and quality for automotive use.
Yes, the design of this model is compatible with automatic optical inspection (AOI) processes for quality assurance in solder joint verification.
The diode configuration for this model is a single Schottky diode, suitable for various applications in power management.
The DFN1412D-3 package features a low profile height of 0.5 mm, facilitating slim device assembly.
The maximum non-repetitive forward surge current for the BAT54QC-QZ is 200 mA.
This diode complies with RoHS standards, ensuring it meets environmental regulations for hazardous substances.
This Schottky diode is suitable for applications such as power supply protection, rectification, voltage clamping, and signal sensing in automotive and industrial electronics.
