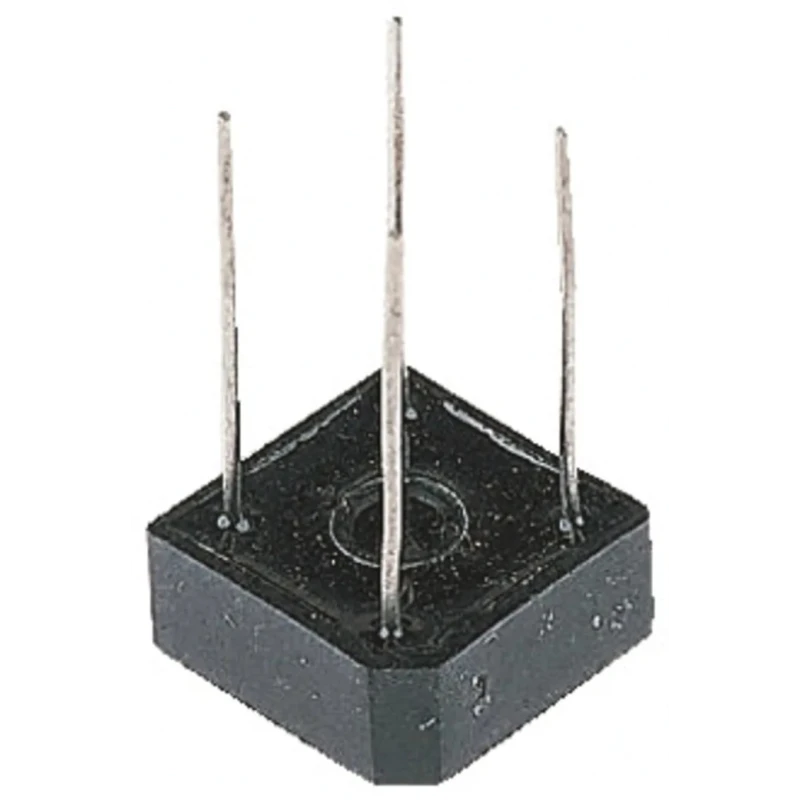

Vishay Bridge Rectifier, 400 V 137 A, 4-Pin Single Phase Through Hole D-72 Package VS-KBPC604
Specifications
| Country of Origin | India |
|---|---|
| Brand | Vishay |
| Height | 5.33mm |
| Length | 15.75mm |
| Model | VS-KBPC604 |
| Width | 15.75mm |
| Mount Type | Through Hole |
| Series | VS-KBPC6 |
| Configuration | Single |
| Maximum Operating Temperature | 150°C |
| Package Type | D-72 |
| Minimum Operating Temperature | -40°C |
| Number of Phases | 1 |
| Pin Count | 4 |
| Peak Reverse Repetitive Voltage Vrrm | 400V |
| Peak Reverse Current Ir | 10mA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 137A |
| Forward Current If | 6A |
| Peak Forward Voltage Vf | 1.2V |
Key Features
- Single-phase 4-pin configuration suitable for through hole PCB mounting.
- Compact D-72 package measuring 15.75 mm length, width, and 5.33 mm height.
- High surge current capability with 137 A peak non-repetitive forward surge current.
- Wide operating temperature range from -40°C to 150°C ensures reliability.
- Features low peak forward voltage of 1.2 V and peak reverse current of 10 mA for efficient performance.
- Designed with wire lead structure for enhanced PCB and chassis mounting flexibility.
- VS-KBPC6 series bridge rectifier optimized for power electronic applications.
Product Description
Vishay VS-KBPC604 Bridge Rectifier is a high power single-phase semiconductor device designed for converting alternating current (AC) into direct current (DC) through full-wave rectification. It features a 400 V peak reverse repetitive voltage and a forward continuous current rating of 6 A, making it suitable for a variety of industrial electronic applications. The device comes in a compact D-72 package with a 4-pin configuration and is mountable via through-hole technology. Its wire lead construction facilitates easy printed circuit board (PCB) or chassis mounting.
With a peak non-repetitive forward surge current of 137 A, the VS-KBPC604 handles transient overload conditions effectively. The device operates reliably over a wide temperature range from -40°C up to 150°C, which supports harsh environmental conditions. Its low peak forward voltage drop of 1.2 V and a minimal peak reverse current of 10 mA contribute to efficient power conversion and reduced thermal dissipation.
This bridge rectifier is part of the VS-KBPC6 series from Vishay Semiconductor, known for compact construction, high reliability, and superior thermal performance. The robust design enables use in power supply circuits, battery chargers, and general-purpose rectification for consumer, industrial, and laboratory electrical equipment.
Single-phase operation with 4-pin through hole mounting. Compact D-72 package enhances PCB integration without occupying excessive space. High surge current capability ensures durability in demanding conditions. Wide thermal operating range supports various industrial applications.
Wire lead design facilitates flexible mounting options.
Vishay's advanced semiconductor technology ensures long service life and stable electrical characteristics, ideal for industrial, manufacturing, and electronic design projects. Explore Vishay Bridge Rectifiers to support efficient power conversion needs in your applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The peak reverse repetitive voltage rating is 400 V.
It has a forward current rating of 6 A.
The peak non-repetitive forward surge current is 137 A.
The D-72 package measures 15.75 mm in length and width, and 5.33 mm in height.
It operates reliably over a temperature range from -40°C to 150°C.
This model features a through-hole mounting configuration with a 4-pin design.
The peak forward voltage drop is 1.2 V.
The peak reverse current is specified at 10 mA.
It is part of the VS-KBPC6 series from Vishay.
This bridge rectifier is suitable for power supply circuits, battery chargers, and general-purpose rectification in various industrial applications.
The country of origin for this model is India.
It has a single-phase configuration.
