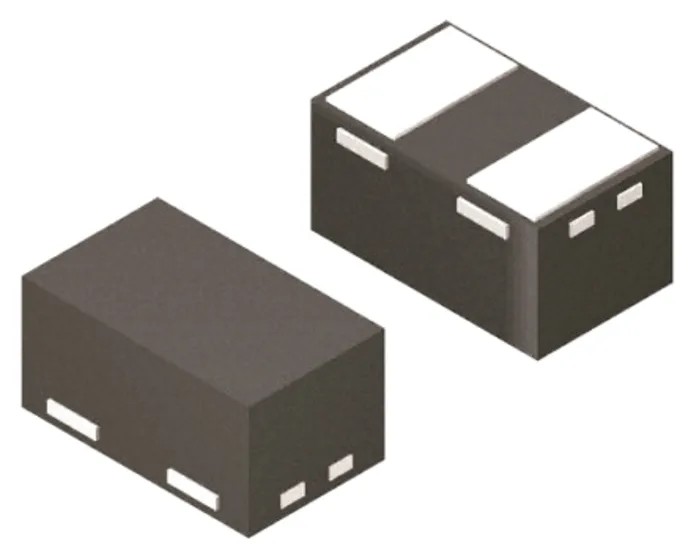

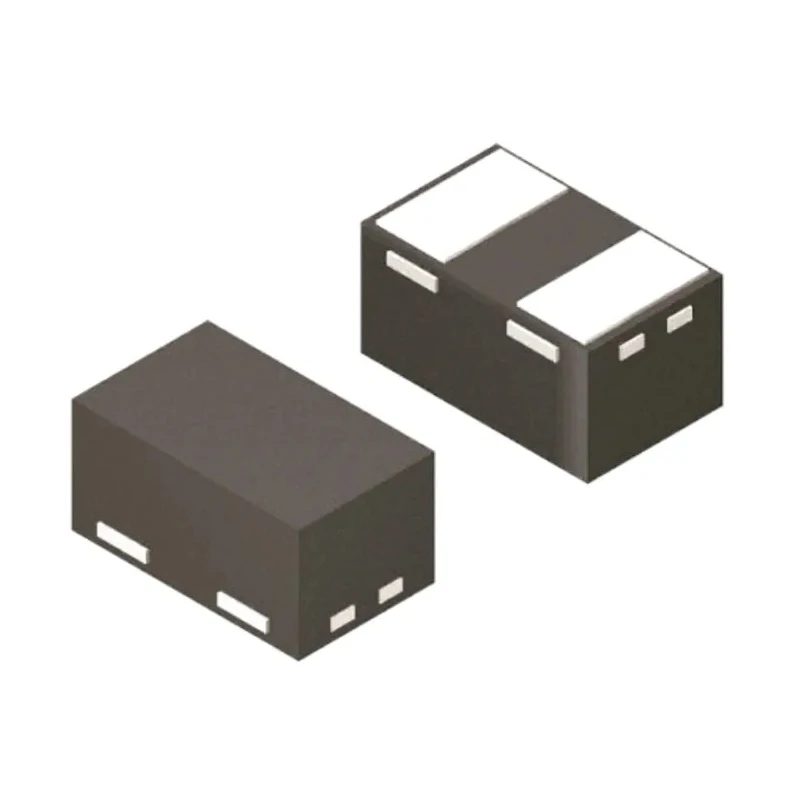

Nexperia 1-Element Uni-Directional ESD Protection Diode, Surface Mount SOD-882 Package PESD3V3U1UL,315

Free Delivery in India | Lowest Global Shipping Charges

Nexperia 1-Element Uni-Directional ESD Protection Diode, Surface Mount SOD-882 Package PESD3V3U1UL,315

Name: Nexperia 1-Element Uni-Directional ESD Protection Diode, Surface Mount SOD-882 Package PESD3V3U1UL,315
Brand: Nexperia
SKU: 133188
Price: 0.09 USD
Availability: InStock



Category ESD Protection Diode Brand Nexperia Condition New

Specifications

Country of Origin	China
Brand	Nexperia
Height	0.5mm
Length	1.02mm
Model	PESD3V3U1UL,315
Width	0.62mm
Mount Type	Surface
Maximum Operating Temperature	150°C
Package Type	SOD-882
Minimum Operating Temperature	-55°C
Pin Count	2
Number of Elements per Chip	1
Automotive Standard	AEC-Q101
Diode Configuration	Single
Direction Type	Uni-Directional
Minimum Breakdown Voltage Vbr	4.5V
Maximum Reverse Stand-off Voltage Vwm	3.3V
Test Current It	5mA
Maximum Reverse Leakage Current	100nA

Key Features

The diode features ultra low capacitance ensuring minimal signal distortion.
Designed to protect one data line from excessive voltage transient events.
Offers a minimum breakdown voltage of 4.5 V and maximum reverse stand-off voltage of 3.3 V.
Suitable for operation from -55°C to 150°C, ensuring wide temperature resilience.
Complies with automotive standard AEC-Q101 and industry standards including IEC 61000-4-2 Level 4 ESD protection.
Maximum reverse leakage current is 100 nA, ensuring high efficiency.
Compact dimensions of 1.02 mm length, 0.62 mm width, and 0.5 mm height enable space saving designs.
Package type is SOD-882 with surface mount mount type for easy PCB assembly.

Product Description

Nexperia PESD3V3U1UL,315 Uni-Directional ESD Protection Diode is designed for industrial and electronic equipment requiring robust electrostatic discharge protection. This single-element diode offers ultra low capacitance in a compact 2-pin SOD-882 surface mount package, ideal for protecting one data line from voltage transients that may damage sensitive components.

Its minimum breakdown voltage of 4.5 V and maximum reverse stand-off voltage of 3.3 V ensure efficient clamping of ESD events. The diode supports continuous operating temperatures from -55°C to 150°C, suitable for automotive, industrial, and consumer electronics environments. Certified to automotive standard AEC-Q101 and tested to class 3 human body model and IEC 61000-4-2 level 4, it ensures compliance with rigorous quality and performance standards.

The maximum reverse leakage current of 100 nA helps maintain system efficiency. The compact SOD-882 package allows for high-density PCB layouts without compromising reliability. The package height is 0.5 mm, length 1.02 mm, and width 0.62 mm.

This diode is manufactured in China, meeting stringent quality control for dependable long-term operation. Ultra-low capacitance for minimal signal interference. Single element uni-directional diode protecting one data line.

Compliance with IEC 61000-4-2, MIL-STD-883, and automotive AEC-Q101 standards. Compact SOD-882 surface mount package. Wide operating temperature range from -55°C to 150°C. Low reverse leakage current of 100 nA. Test current rated at 5 mA.

Ideal for industrial, automotive, telecommunications, and consumer electronic applications.

This Nexperia diode is a reliable choice for engineers seeking effective ESD protection components. Explore the complete range of semiconductor protection devices at EnvMart for your industrial and electronic needs.
