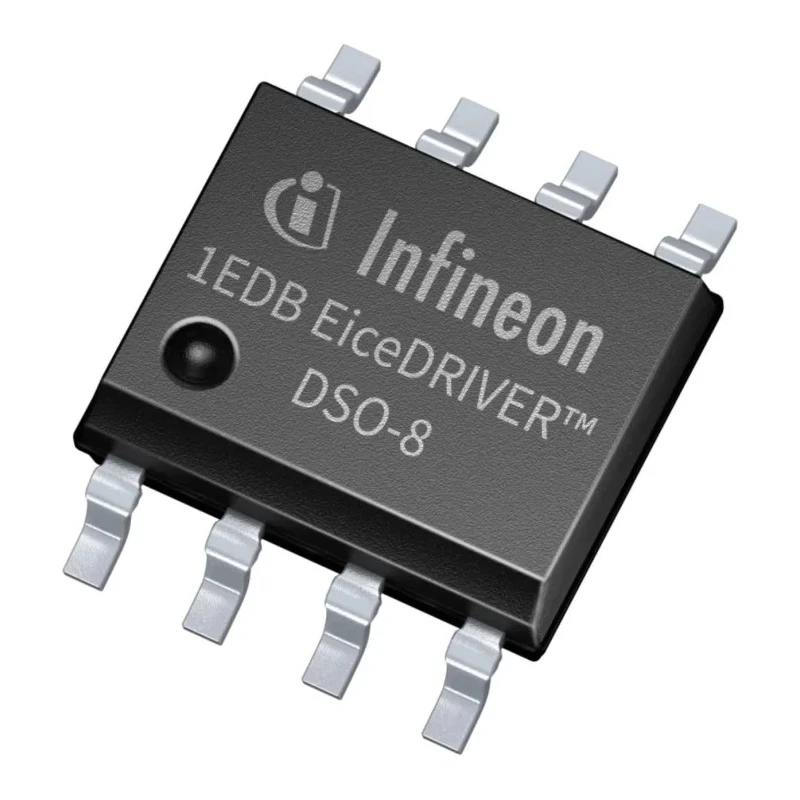

Infineon MOSFET Gate Driver 8-Pin PG-DSO-8 Surface Mount 15V 5.6A Output Current 1EDB8275FXUMA1
Specifications
| Country of Origin | India |
|---|---|
| Brand | Infineon |
| Height | 1.75mm |
| Length | 5mm |
| Model | 1EDB8275FXUMA1 |
| Width | 4mm |
| Mount Type | Surface |
| Series | 1EDB8275F |
| Output Current | 5.6A |
| Maximum Operating Temperature | 125°C |
| Package Type | PG-DSO-8 |
| Minimum Operating Temperature | -40°C |
| Number of outputs | 2 |
| Rise Time | 8.3ns |
| Pin Count | 8 |
| Minimum Supply Voltage | 15V |
| Number of Drivers | 1 |
| Fall Time | 9ns |
| Driver Type | MOSFET |
Key Features
- Delivers a high 5.6 ampere output current for rapid switching of MOSFET gates.
- Operates from 3 V up to a maximum supply voltage of 15 V for flexible low-voltage applications.
- Fast switching with an 8.3 ns rise time and 9 ns fall time reduces power losses and device stress.
- Single driver offers two outputs for simplified gate control and improved efficiency.
- Compact 8-pin PG-DSO-8 surface-mount package suitable for dense PCB layouts.
- Wide operating temperature range from -40°C to +125°C for harsh environments.
- Ideal for motor drive inverter buffering, DC-DC converters, switch-mode power supplies, and synchronous rectifier circuits.
Product Description
The Infineon 1EDB8275FXUMA1 is a MOSFET Gate Driver designed to provide a compact, efficient interface for controlling power MOSFETs in low voltage systems. Featuring a robust 5.6 ampere output current and operating at supply voltages from 3 V to 15 V, it facilitates rapid switching with minimal power loss due to its fast rise and fall times of 8.3 ns and 9 ns respectively. The device is supplied in a compact 8-pin PG-DSO-8 surface mount package measuring 5 mm length, 4 mm width, and 1.75 mm height, which supports dense assembly on PCBs.
This single driver unit includes two outputs to simplify gate control in switching applications. Its wide operating temperature range from -40°C to 125°C makes it suitable for demanding industrial, automotive, and commercial environments. Key applications include motor drive inverter gate buffering, efficient gate control in DC-DC converters, switching power supplies, and synchronous rectifiers.
The device operates without the need for automotive standards compliance and lacks additional certifications, making it versatile for general semiconductor electronic component use. Its surface-mount nature makes it ideal for compact PCB layouts and modern electronics manufacturing processes.
Infineon's 1EDB8275FXUMA1 MOSFET Gate Driver is a reliable choice for engineers needing a high-speed, high-current gate drive solution with an effective size and thermal capability. It supports industrial, automotive component prototyping, power management, and laboratory applications requiring fast switching performance and compact footprint.
Delivers 5.6 A for rapid MOSFET switching performance. Operates over a 3 V to 15 V supply range to support varied system voltages. Fast 8.3 ns rise time and 9 ns fall time reduce switching losses. Single driver with dual outputs simplifies gate drive circuit design.
Compact 8-pin PG-DSO-8 surface-mount package for space-saving PCB integration. Wide ambient operating temperature from -40°C to 125°C for rugged use cases. Applicable in motor drives, DC-DC converters, synchronous rectifiers, and switch-mode power supplies.
Explore more semiconductor gate drivers and power management ICs from Infineon and other leading manufacturers at EnvMart to support your electronics and industrial projects.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It delivers a high output current of 5.6 amperes, facilitating rapid switching of MOSFET gates.
This MOSFET Gate Driver operates from a minimum supply voltage of 3 V up to a maximum of 15 V.
It features a fast rise time of 8.3 ns and a fall time of 9 ns, which helps reduce power losses during operation.
This model includes two outputs, simplifying gate control in switching applications.
It comes in an 8-pin PG-DSO-8 surface mount package, measuring 5 mm in length, 4 mm in width, and 1.75 mm in height.
The device operates within a wide temperature range from -40°C to 125°C, making it suitable for harsh environments.
It is ideal for applications such as motor drive inverter buffering, DC-DC converters, switch-mode power supplies, and synchronous rectifier circuits.
This gate driver has a pin count of 8, which is typical for its compact design.
It is classified as a MOSFET driver, specifically designed for controlling power MOSFETs in low voltage systems.
This device operates without the need for automotive standards compliance, making it versatile for general semiconductor use.
The height of the PG-DSO-8 package is 1.75 mm, allowing for space-saving PCB integration.
The country of origin for this product is India.
