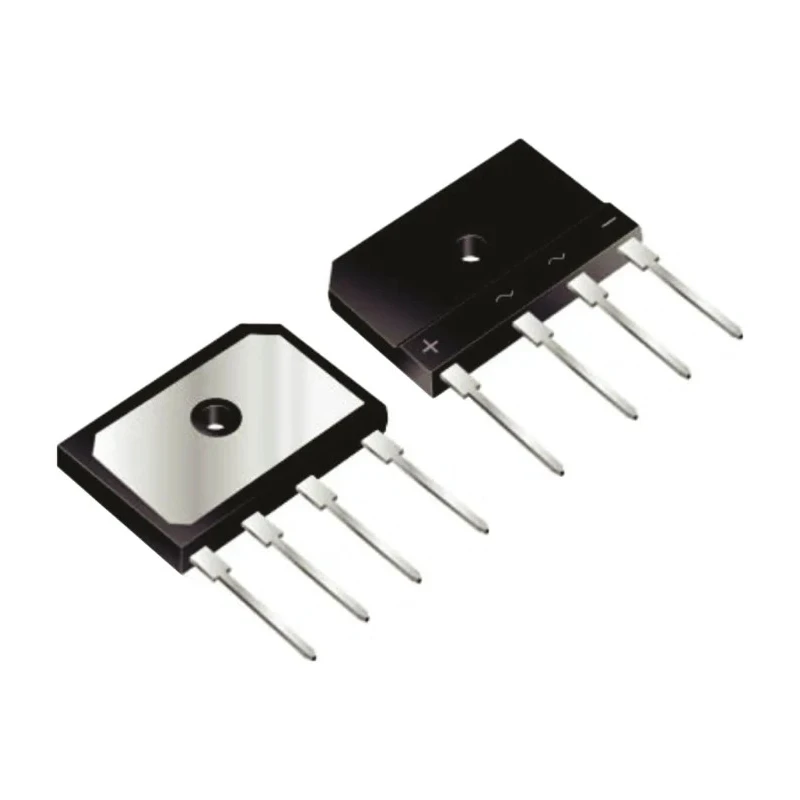

Vishay Bridge Rectifier 600 V 450 A 4-Pin Single PB5006-E3/45
Specifications
| Country of Origin | China |
|---|---|
| Brand | Vishay |
| Height | 20.3mm |
| Length | 30.3mm |
| Model | PB5006-E3/45 |
| Width | 5.1mm |
| Mount Type | Through Hole |
| Series | PB50 |
| Configuration | Single |
| Maximum Operating Temperature | 150°C |
| Package Type | PB |
| Minimum Operating Temperature | -55°C |
| Number of Phases | 1 |
| Pin Count | 4 |
| Peak Reverse Repetitive Voltage Vrrm | 600V |
| Peak Reverse Current Ir | 500μA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 450A |
| Forward Current If | 45A |
| Peak Forward Voltage Vf | 1.1V |
Key Features
- Specifically designed for through-hole PCB mounting applications.
- Features an enhanced isoCink+ high current density single in-line package for superior thermal conductivity.
- Operates reliably between -55°C and 150°C maximum temperature.
- Supports full wave AC to DC rectification with minimal size and high reliability.
- Suitable for linear and switching power supplies, home appliances and white goods.
- Complies with UL 1557 safety standards for electrically isolated semiconductor devices.
- Peak repetitive reverse voltage rated at 600 V ensuring robust performance.
- Maximum peak non-repetitive forward surge current of 450 A.
Product Description
Vishay PB5006-E3/45 bridge rectifier is a high reliability component in the PB series, featuring an enhanced isoCink+™ SIL PCB mounting package that offers exceptional thermal conductivity and high current density suitable for industrial and consumer electronics applications.
This bridge rectifier is intended for single-phase full wave rectification, converting AC input to DC output effectively while maintaining minimal footprint thanks to its compact 4-pin design.
Operating temperature ranges from -55°C minimum to 150°C maximum, making it suitable for rugged environments including switching power supplies, linear supplies, and white goods such as home electrical appliances.
The device supports a forward current of 45 A and a peak reverse repetitive voltage of 600 V, with a peak non-repetitive forward surge current capability of 450 A for transient conditions.
Manufactured to meet safety standards including UL 1557, this bridge rectifier ensures electrically isolated operation, ideal for critical power management circuits. Through hole mount type for reliable PCB assembly. Superior thermal performance for high power applications.
Compact dimensions: 30.3 mm length, 20.3 mm height, 5.1 mm width. Configured as a single 4-pin Bridge Rectifier. Typical uses include power conversion in industrial controls, HVAC systems, manufacturing equipment, and water treatment setups.
Choose Vishay PB5006-E3/45 for efficient, reliable full wave rectification in professional electronics projects.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating temperature for the Vishay PB5006-E3/45 bridge rectifier is 150°C.
This model has a peak reverse repetitive voltage rating of 600 V.
The forward current rating for the Vishay PB5006-E3/45 is 45 A.
The dimensions of the Vishay PB5006-E3/45 are 30.3 mm in length, 20.3 mm in height, and 5.1 mm in width.
The peak non-repetitive forward surge current capability of this rectifier is 450 A.
This bridge rectifier is designed for through-hole PCB mounting.
The Vishay PB5006-E3/45 is configured as a single bridge rectifier.
It is suitable for applications such as linear and switching power supplies, home appliances, and industrial controls.
The package type of the Vishay PB5006-E3/45 is PB, featuring an enhanced isoCink+ design.
This model has a pin count of 4.
The Vishay PB5006-E3/45 complies with UL 1557 safety standards for electrically isolated semiconductor devices.
The minimum operating temperature for the Vishay PB5006-E3/45 is -55°C.
