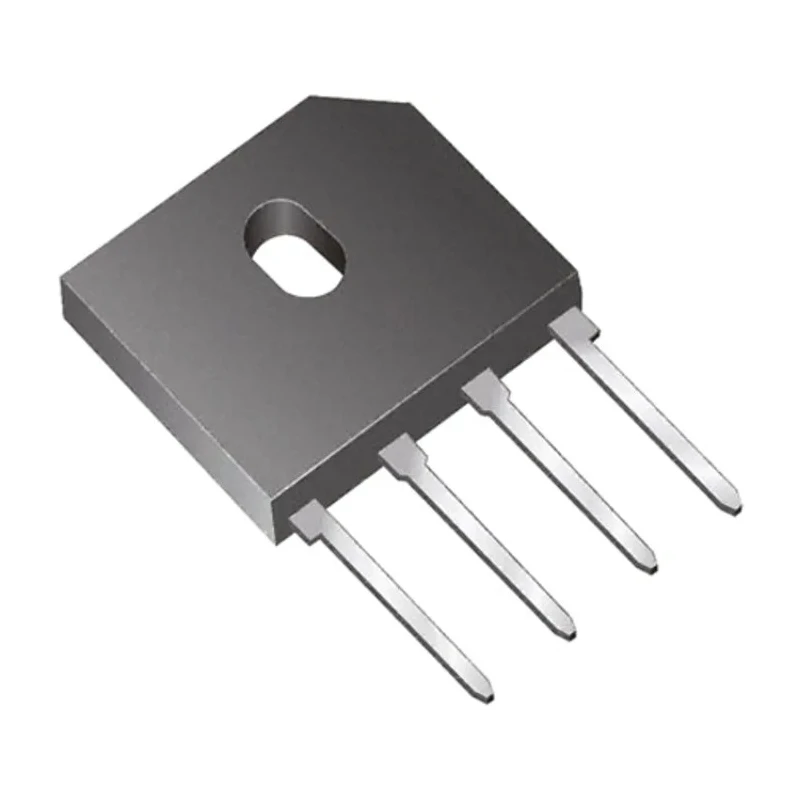

Vishay Bridge Rectifier, 200 V Peak Reverse Voltage, 175 A Peak Surge Current, 4-Pin Single GBU6D-E3/45
Specifications
| Country of Origin | China |
|---|---|
| Brand | Vishay |
| Height | 18.8mm |
| Length | 22.3mm |
| Model | GBU6D-E3/45 |
| Width | 3.56mm |
| Mount Type | Through Hole |
| Series | GBU6 |
| Configuration | Single |
| Maximum Operating Temperature | 150°C |
| Package Type | GBU |
| Minimum Operating Temperature | -55°C |
| Number of Phases | 1 |
| Pin Count | 4 |
| Peak Reverse Repetitive Voltage Vrrm | 200V |
| Peak Reverse Current Ir | 500μA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 175A |
| Forward Current If | 6A |
| Peak Forward Voltage Vf | 1V |
| HY Electronic Corp Bridge Rectifier, 6A, 600V, 4-PinBrand | HY Electronic Corp |
Key Features
- Designed for through-hole mounting with GBU package type.
- Operates between -55°C and 150°C maximum temperature for extended durability.
- Forward current rating of 6 A supports robust electrical applications.
- Glass passivated junction enhances reliability and surge current capability.
- Soldering pins enable easy PCB integration and assembly.
- Compact dimensions of 22.3 mm length, 18.8 mm height, and 3.56 mm width fit space-efficient layouts.
- High case dielectric strength of 1500 Vrms ensures insulation and circuit safety.
- Ideal for full-wave rectification converting AC to DC in industrial and electronic systems.
Product Description
Vishay GBU6D-E3/45 Bridge Rectifier delivers reliable AC to DC conversion for industrial and electronic applications. Featuring a peak reverse voltage of 200 V and peak surge current of 175 A, this device provides high performance in a compact 4-pin single configuration GBU package designed for through-hole PCB mounting.
With a forward current rating of 6 A, it ensures steady current flow for power electronics, while operating temperature supports conditions from -55°C up to 150°C. The glass passivated junction offers enhanced stability and high surge current capability, critical for handling sudden load changes.
Physical dimensions include a length of 22.3 mm, height of 18.8 mm, and width of 3.56 mm, enabling integration into tightly packed PCB designs. The high case dielectric strength of 1500 Vrms ensures electrical insulation and safety under high voltage conditions.
This bridge rectifier effectively converts AC input to a DC output with consistent polarity, suitable for industrial machines, power supplies, and electronic devices requiring full-wave rectification. The soldering pins facilitate secure and reliable PCB assembly.
Manufactured in China, it fits within standard electronic components categories and meets industry reliability expectations without specific certification approvals. Designed for through-hole mounting with GBU package type.
Operates between -55°C and 150°C maximum temperature for extended durability. Forward current rating of 6 A supports robust electrical applications. Glass passivated junction enhances reliability and surge current capability.
Soldering pins enable easy PCB integration and assembly. Compact dimensions of 22.3 mm length, 18.8 mm height, and 3.56 mm width fit space-efficient layouts. High case dielectric strength of 1500 Vrms ensures insulation and circuit safety.
Ideal for full-wave rectification converting AC to DC in industrial and electronic systems. Product manufactured in China with no automotive or special approvals. Explore the extensive range of semiconductor components and Bridge Rectifiers available for industrial electronics and power conversion applications on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The peak reverse voltage of this bridge rectifier is 200 V.
It has a forward current rating of 6 A, supporting robust electrical applications.
The maximum operating temperature for this bridge rectifier is 150°C.
The dimensions are 22.3 mm in length, 18.8 mm in height, and 3.56 mm in width.
The glass passivated junction enhances reliability and surge current capability, making it suitable for handling sudden load changes.
This model has a peak surge current rating of 175 A.
It is designed for through-hole mounting with a GBU package type.
The minimum operating temperature is -55°C.
The high case dielectric strength is 1500 Vrms, ensuring insulation and circuit safety.
It is ideal for full-wave rectification, converting AC to DC in industrial and electronic systems.
The GBU6D-E3/45 has a pin count of 4.
This model features a single configuration type.
