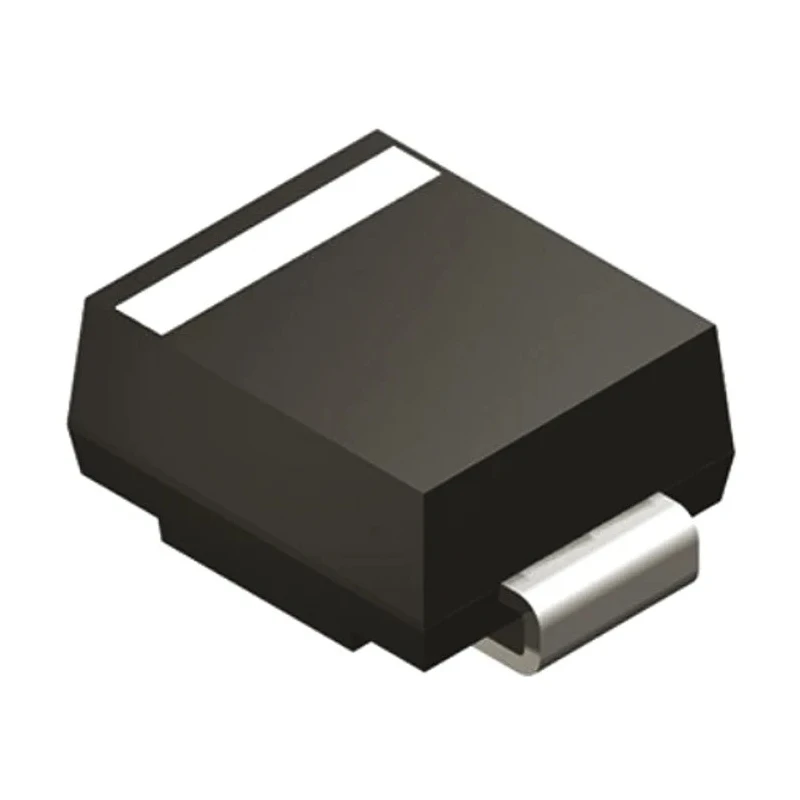

Vishay 1-Element Uni-Directional TVS Diode 600 W, 2-Pin DO-214 P6SMB27A-E3/52
Specifications
| Country of Origin | China |
|---|---|
| Brand | Vishay |
| Height | 2.24mm |
| Length | 4.57mm |
| Model | P6SMB27A-E3/52 |
| Width | 3.94mm |
| Mount Type | Surface |
| Series | P6SMB |
| Maximum Operating Temperature | 150°C |
| Package Type | DO-214 |
| Minimum Operating Temperature | -65°C |
| Pin Count | 2 |
| Number of Elements per Chip | 1 |
| Clamping Voltage VC | 37.5V |
| Automotive Standard | AEC-Q101 |
| Diode Configuration | Single |
| Direction Type | Uni-Directional |
| Minimum Breakdown Voltage Vbr | 25.7V |
| Maximum Reverse Stand-off Voltage Vwm | 23.1V |
| Peak Pulse Power Dissipation Pppm | 600W |
| Test Current It | 1mA |
| Maximum Peak Pulse Current Ippm | 16A |
| Maximum Reverse Leakage Current | 1μA |
Key Features
- Uni-directional diode configuration provides efficient transient voltage suppression.
- Surface mount DO-214 package ensures compact PCB footprint.
- Minimum breakdown voltage rated at 25.7 V for reliable operation.
- Peak pulse power dissipation of 600 W protects sensitive electronics from voltage spikes.
- Clamping voltage of 37.5 V minimizes impact of transient surges.
- Wide operating temperature range from -65°C up to 150°C for robust performance.
- ESD protection compliant with automotive AEC-Q101 standards.
- Compact dimensions measuring 4.57 mm length, 3.94 mm width, and 2.24 mm height.
Product Description
Vishay P6SMB27A-E3/52 is a 1-element uni-directional transient voltage suppressor diode engineered to provide superior protection of electronic circuits against voltage spikes and transient surges. Featuring a robust peak pulse power dissipation rating of 600 W, this diode is housed in a compact 2-pin DO-214 surface mount package, optimizing space on printed circuit boards.
This TVS diode exhibits a minimum breakdown voltage of 25.7 V and a clamping voltage of 37.5 V, ensuring effective suppression of transient voltages to safeguard sensitive components. The device supports an operating temperature range from -65°C to 150°C, making it suitable for harsh and fluctuating environments commonly encountered in automotive and industrial electronics.
With a maximum peak pulse current of 16 A and extremely low reverse leakage current (1 µA), the diode combines high transient current capability with low standby losses. Compliance with the stringent automotive standard AEC-Q101 certifies its reliability for use in critical automotive applications. Its surface mount DO-214 form factor enables straightforward automated assembly processes.
The compact physical dimensions of 4.57 mm length, 3.94 mm width, and 2.24 mm height contribute to efficient board designs without sacrificing performance. The device is ideal for use in power supply circuits, automotive electronics, industrial control systems, and other applications requiring effective transient voltage suppression.
Uni-directional diode configuration for targeted transient voltage protection. Compact surface mount DO-214 package reduces PCB space requirements. Effective suppression with 600 W peak pulse power rating. Wide temperature operation suitable for automotive and industrial environments.
Low reverse leakage current minimizes energy losses in standby mode. Automotive grade AEC-Q101 standard certification ensures high reliability. Supports high transient current spikes up to 16 A peak. Compact size enables versatile integration in complex electronic systems.
Vishay’s P6SMB27A-E3/52 TVS diode offers reliable protection for transient events in demanding industrial, automotive, and electronic component applications. Browse EnvMart's extensive catalog for additional Vishay semiconductor products and related TVS Diode offerings to meet your design requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The peak pulse power dissipation of the Vishay P6SMB27A-E3/52 TVS diode is rated at 600 W, providing effective protection against voltage spikes.
The minimum breakdown voltage for this diode is rated at 25.7 V, ensuring reliable operation during transient events.
This diode has compact dimensions measuring 4.57 mm in length, 3.94 mm in width, and 2.24 mm in height.
The clamping voltage of the Vishay P6SMB27A-E3/52 is 37.5 V, which helps minimize the impact of transient surges.
The maximum peak pulse current for this model is 16 A, allowing it to manage high transient current spikes effectively.
The operating temperature range for the P6SMB27A-E3/52 is from -65°C to 150°C, making it suitable for various environments.
This diode uses a surface mount configuration, specifically in a DO-214 package, which optimizes PCB space.
Yes, the P6SMB27A-E3/52 is compliant with the automotive AEC-Q101 standards, ensuring its reliability in automotive applications.
The maximum reverse leakage current for this model is 1 µA, which helps minimize energy losses in standby mode.
This diode is a single element configuration, designed for uni-directional transient voltage suppression.
The test current for the Vishay P6SMB27A-E3/52 is 1 mA, which is used for evaluating its performance.
The country of origin for the P6SMB27A-E3/52 is China.
