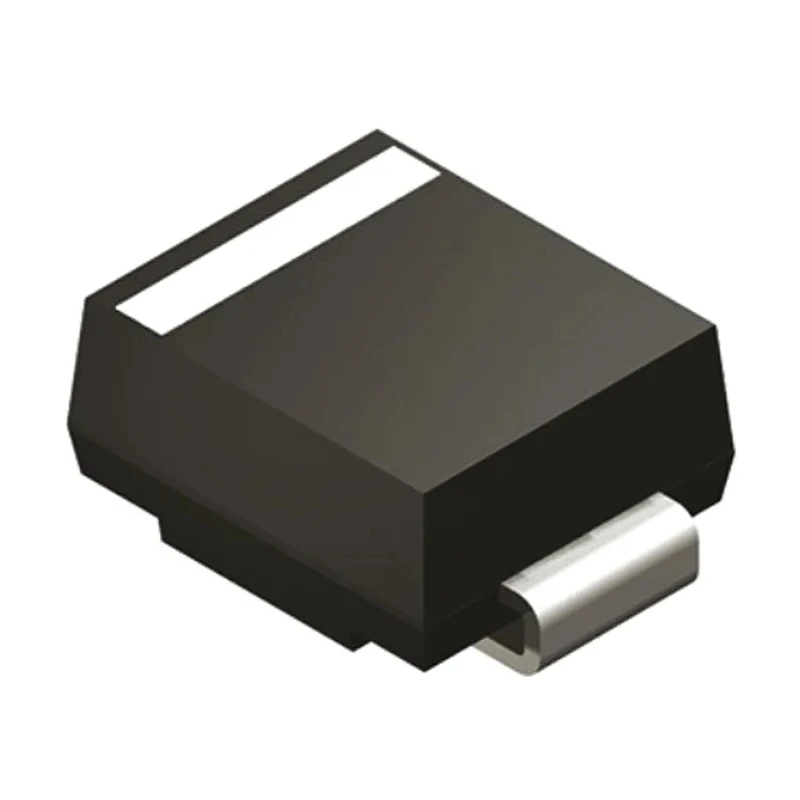

Vishay 1-Element Uni-Directional Transient Voltage Suppressor 600 W 2-Pin DO-214AA Package P6SMB200A-E3/52
Specifications
| Country of Origin | China |
|---|---|
| Brand | Vishay |
| Height | 2.24mm |
| Length | 4.57mm |
| Model | P6SMB200A-E3/52 |
| Width | 3.94mm |
| Mount Type | Surface |
| Series | P6SMB |
| Maximum Operating Temperature | 150°C |
| Package Type | DO-214AA (SMB) |
| Minimum Operating Temperature | -65°C |
| Standards/Approvals | UL 94 V-0, AEC-Q101, RoHS |
| Pin Count | 2 |
| Number of Elements per Chip | 1 |
| Clamping Voltage VC | 274V |
| Automotive Standard | AEC-Q101 |
| Diode Configuration | Single |
| Direction Type | Uni-Directional |
| Minimum Breakdown Voltage Vbr | 190V |
| Maximum Reverse Stand-off Voltage Vwm | 171V |
| Peak Pulse Power Dissipation Pppm | 600W |
| Test Current It | 1mA |
| Maximum Peak Pulse Current Ippm | 2.2A |
| Maximum Reverse Leakage Current | 1μA |
Key Features
- The device features uni-directional transient voltage suppression for protecting circuits.
- It has a minimum breakdown voltage of 190 V and maximum reverse stand-off voltage of 171 V.
- The clamp voltage is 274 V, ensuring effective voltage limiting during surges.
- Operational temperature ranges from -65°C to 150°C for reliable performance.
- Compact surface mount package with dimensions 4.57 mm length, 3.94 mm width, and 2.24 mm height.
- Offers low maximum reverse leakage current of 1 μA and high peak pulse current of 2.2 A.
- Meets automotive standard AEC-Q101 and industry safety standards UL 94 V-0 and RoHS compliant.
- Designed for use in power protection applications in industrial and electronic circuits.
Product Description
Vishay P6SMB200A-E3/52 is a 1-Element Uni-Directional Transient Voltage Suppressor (TVS) providing 600 W peak pulse power dissipation. Packaged in a compact 2-pin DO-214AA (SMB) surface mount package, this TVS diode is designed to protect sensitive electronic circuits against voltage surges and transient events. It features a minimum breakdown voltage of 190 V and a maximum reverse stand-off voltage of 171 V, enabling it to clamp transient voltages up to 274 V efficiently.
The device operates reliably over a wide temperature range from -65°C to 150°C, making it suitable for demanding industrial, automotive, and commercial electronics environments. The low maximum reverse leakage current of 1 μA and high peak pulse current capability of 2.2 A enhance its performance in surge protection applications. Its compact dimensions of 4.57 mm (length) by 3.94 mm (width) by 2.24 mm (height) facilitate PCB space-saving and surface mount assembly.
Certified to meet UL 94 V-0 flammability standards, compliant with AEC-Q101 automotive requirements, and RoHS regulations, this TVS diode assures quality and environmental compliance. Typical applications include power supplies, battery-operated equipment, communication devices, and automotive electronics needing robust transient voltage suppression.
The device features uni-directional transient voltage suppression for protecting circuits. Minimum breakdown voltage of 190 V and max reverse stand-off voltage of 171 V. Clamp voltage of 274 V limits voltage surges effectively.
Wide operating temperature range from -65°C to 150°C. Compact surface mount DO-214AA (SMB) package for PCB space-saving. Low reverse leakage current and high peak pulse current ratings. Automotive grade AEC-Q101 and UL 94 V-0 flammability certified.
RoHS compliant for environmental safety.
This transient voltage suppressor is ideal for protecting electronic devices in industrial, automotive, laboratory, and consumer electronics systems. It helps ensure system durability and reduces component failures due to voltage spikes. Browse the EnvMart Semiconductor category for more specialized circuit protection products from Vishay and other trusted brands.
Explore more products in our Discrete Semiconductor category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The peak pulse power dissipation of this model is 600 W.
It has a minimum breakdown voltage of 190 V.
The maximum reverse stand-off voltage is 171 V.
The clamp voltage is 274 V, which helps limit voltage surges effectively.
It operates reliably over a temperature range from -65°C to 150°C.
The dimensions of the package are 4.57 mm in length, 3.94 mm in width, and 2.24 mm in height.
The maximum reverse leakage current is 1 μA.
It has a maximum peak pulse current rating of 2.2 A.
This transient voltage suppressor complies with the AEC-Q101 automotive standard.
It meets UL 94 V-0 flammability standards and is RoHS compliant.
It has a single, uni-directional diode configuration.
Typical applications include power supplies, battery-operated equipment, communication devices, and automotive electronics.
