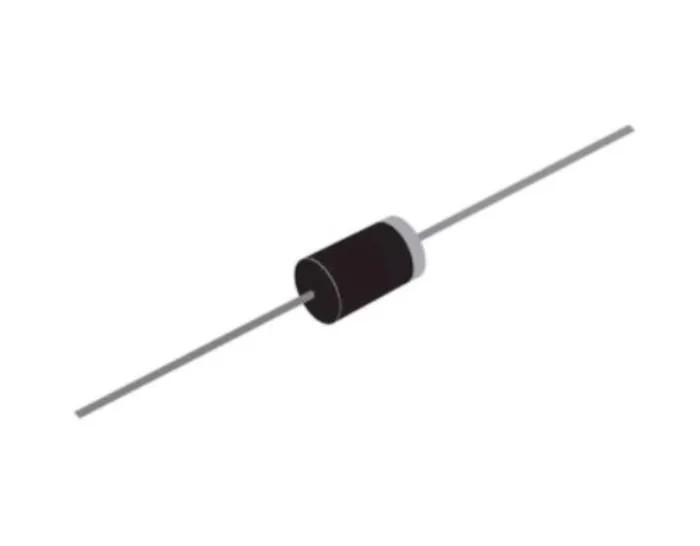

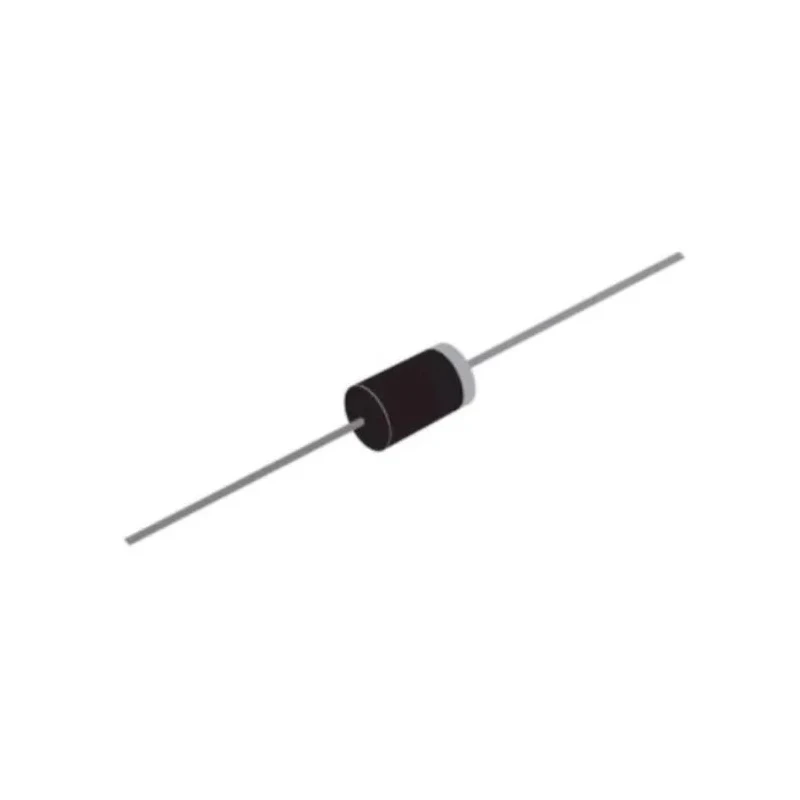

Vishay 1-Element Uni-Directional TVS Diode 5 kW 2-Pin P600 5KP48A-E3/54
Specifications
| Country of Origin | India |
|---|---|
| Diameter | 9.1mm |
| Brand | Vishay |
| Height | 9.1mm |
| Length | 9.1mm |
| Model | 5KP48A-E3/54 |
| Width | 9.1mm |
| Mount Type | Through Hole |
| Series | TRANSZORB TVS |
| Maximum Operating Temperature | 175°C |
| Package Type | P600 |
| Minimum Operating Temperature | -55°C |
| Pin Count | 2 |
| Number of Elements per Chip | 1 |
| Clamping Voltage VC | 77.4V |
| Automotive Standard | AEC-Q101 |
| Diode Configuration | Single |
| Direction Type | Uni-Directional |
| Minimum Breakdown Voltage Vbr | 53.3V |
| Maximum Reverse Stand-off Voltage Vwm | 48V |
| Peak Pulse Power Dissipation Pppm | 5kW |
| Test Current It | 5mA |
| Maximum Peak Pulse Current Ippm | 64.6A |
| Maximum Reverse Leakage Current | 2μA |
| Vishay 5KP48A, Uni-Directional TVS Diode, 5000W, 2-Pin P600Brand | Vishay |
Key Features
- Designed as a single diode with uni-directional configuration for transient voltage suppression.
- Operates with a minimum breakdown voltage of 53.3 V and maximum reverse stand-off voltage of 48 V.
- Features an excellent clamping voltage of 77.4 V with ESD protection and very fast response time.
- Constructed in a P600 through-hole mount package with length, width, height, and diameter all 9.1 mm.
- Operates reliably within a temperature range from -55°C to 175°C, compliant with automotive AEC-Q101 standards.
- Supports a peak pulse current of 64.6 A and has a maximum reverse leakage current of 2 μA.
- Utilized in industrial, automotive, and electronic protection applications requiring transient voltage suppression.
- Robust design with low incremental surge resistance and glass-passivated junction technology.
Product Description
Vishay 5KP48A-E3/54 is a 1-element uni-directional Transient Voltage Suppressor (TVS) diode rated for 5 kW peak pulse power dissipation, designed for circuit protection against high voltage transients. Packaged in the P600 standard with two pins, it features superior clamping capabilities and a fast response time typical of TRANSZORB series TVS diodes.
This single diode configuration provides a minimum breakdown voltage of 53.3 V and a maximum reverse stand-off voltage of 48 V, ensuring efficient transient voltage suppression for sensitive electronic components.
Built with glass passivated junctions in a through-hole P600 package measuring 9.1 mm in length, diameter, width, and height, it fits diverse industrial PCB designs. Its operational temperature range spans from -55°C to 175°C, making it suitable for both automotive and industrial applications, including harsh environments requiring AEC-Q101 automotive certification.
The diode offers a peak pulse current rating of 64.6 A and maintains a very low reverse leakage current of 2 µA, supporting long-term reliability and minimized power loss during standby conditions.
This TRANSZORB TVS Diode is ideal for protecting circuits from voltage spikes caused by electrostatic discharge (ESD) and other transient surges in power supplies, automotive electronics, industrial machinery, and telecommunications equipment. It ensures the system's safety by clamping excessive voltage surges to safe levels.
Single diode with uni-directional transient voltage suppression for protection circuits. 5 kW peak pulse power dissipation capacity for high surge environments. Fast response and low incremental surge resistance for system reliability.
P600 through-hole package with consistent 9.1 mm dimensions aids in PCB design integration. Suitable for automotive applications with AEC-Q101 standard qualification. Wide operating temperature range of -55°C to 175°C to endure demanding conditions.
Low reverse leakage current enhances electrical efficiency and longevity. Glass passivated junction technology for improved stability and clamping performance. Explore the complete range of Vishay electronic components at EnvMart for high-performance semiconductor solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Vishay 5KP48A-E3/54 TVS diode has a peak pulse power dissipation rating of 5 kW.
This diode operates reliably within a temperature range from -55°C to 175°C.
The clamping voltage of this model is 77.4 V.
The maximum reverse stand-off voltage for the Vishay 5KP48A-E3/54 is 48 V.
The minimum breakdown voltage is 53.3 V.
This model has a maximum peak pulse current rating of 64.6 A.
The Vishay 5KP48A-E3/54 is designed for through-hole mounting.
This diode features a 2-pin configuration.
Yes, it is compliant with the automotive AEC-Q101 standards.
The maximum reverse leakage current is 2 μA.
The diode has consistent dimensions of 9.1 mm in length, width, height, and diameter.
This TVS diode is utilized in industrial, automotive, and electronic protection applications requiring transient voltage suppression.
