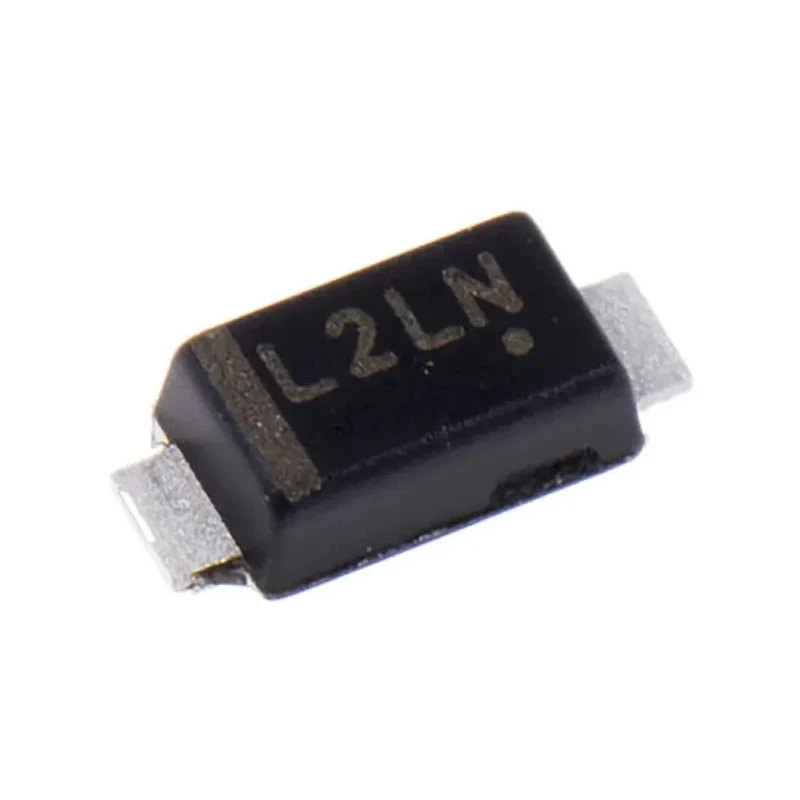

ROHM Schottky Diode RB161MM-20TR 25V 1A Single SOD-123 2-Pin Surface Mount
Specifications
| Country of Origin | Japan |
|---|---|
| Brand | ROHM |
| Height | 0.8mm |
| Length | 2.6mm |
| Model | RB161MM-20TR |
| Width | 1.6mm |
| Mount Type | Surface |
| Series | RB161MM |
| Maximum Operating Temperature | 125°C |
| Package Type | SOD-123 |
| Pin Count | 2 |
| Maximum Continuous Forward Current If | 1A |
| Peak Reverse Repetitive Voltage Vrrm | 25V |
| Diode Configuration | Single |
| Rectifier Type | Schottky |
| Peak Reverse Current Ir | 700μA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 30A |
| Maximum Forward Voltage Vf | 350mV |
Key Features
- Schottky barrier rectifier with low forward voltage drop.
- Maximum reverse repetitive voltage of 25V provides robust protection.
- Supports up to 1A continuous forward current for versatile use.
- Single diode configuration in compact SOD-123 package.
- Surface-mount design enables easy PCB integration.
- Peak non-repetitive forward surge current rated to 30A.
- Operates up to 125°C, suitable for demanding environments.
- Peak reverse current limited to 700μA.
Product Description
ROHM RB161MM-20TR Schottky Diode 25V 1A SOD-123 is engineered for high-speed and efficient rectification in a wide range of industrial and electronic applications. With a low maximum forward voltage of just 350mV, this diode enables reduced power consumption and enhanced efficiency in circuit designs.
Schottky diode with low forward voltage drop, improving switching speeds and energy efficiency. Maximum continuous forward current of 1A and peak surge up to 30A deliver robust performance for power rectification. Compact SOD-123 surface-mount package fits efficiently onto PCBs.
Peak reverse repetitive voltage of 25V and single configuration for straightforward integration. Operates reliably up to 125°C to meet industrial, commercial, and consumer requirements. Width of 1.6mm and height of 0.8mm are ideal for dense PCB layouts.
Designed for applications where fast switching and low conduction losses are critical. Peak reverse current limited to 700μA, supporting consistent operation. Automotive standards not required; suited for general electronics, power supplies, and industrial controls.
This diode's surface-mount package streamlines the assembly process and is advantageous for automated manufacturing environments. Its performance makes it highly suitable for use in power supply modules, voltage protection circuits, and signal rectification in both laboratory and industrial products.
Industries such as electronics manufacturing, laboratory controls, consumer equipment, and industrial automation benefit from implementing this high-quality Schottky diode. Its compact size and robust specifications ensure reliability and longevity in demanding environments.
ROHM, well-recognized for advanced semiconductor technology, delivers exceptional reliability and performance, making the RB161MM-20TR Schottky Diode a preferred component for engineers and designers.
Explore more Schottky Diodes and semiconductor products in the EnvMart Electronics & Electricals category for your circuit protection and rectification needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum reverse repetitive voltage of this Schottky diode is 25V.
It has a peak non-repetitive forward surge current rating of 30A.
The maximum continuous forward current for the RB161MM-20TR is 1A.
The diode comes in a SOD-123 package type, with dimensions of 2.6mm in length, 1.6mm in width, and 0.8mm in height.
The maximum forward voltage drop is 350mV.
It operates reliably up to a maximum temperature of 125°C.
This model uses a single diode configuration.
The peak reverse current is limited to 700μA.
This diode is suitable for electronics manufacturing, laboratory controls, consumer equipment, and industrial automation.
The surface-mount design allows for easy integration onto PCBs, streamlining the assembly process and benefiting automated manufacturing.
It is suitable for use in power supply modules, voltage protection circuits, and signal rectification in both laboratory and industrial products.
The country of origin for this Schottky diode is Japan.
