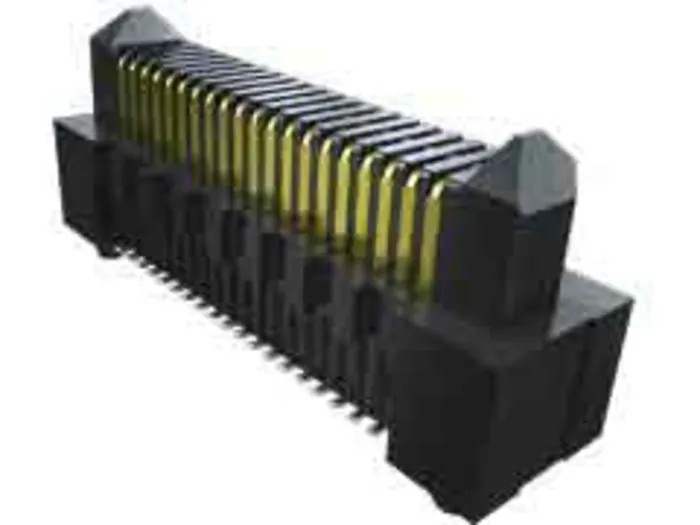

Samtec ERM8 Series Straight Surface Mount PCB Header, 60 Contacts, 0.8 mm Pitch, 2 Row, Shrouded ERM8

Samtec ERM8 Series Straight Surface Mount PCB Header ERM8 is a high-performance connector solution designed for wire-to-board applications requiring high contact density and reliable electrical performance. It features 60 contacts arranged in 2 rows with a precise 0.8 mm pitch, supporting compact PCB layouts.

The header is shrouded for mechanical protection and secure mating. Contacts are fabricated from phosphor bronze with gold plating, ensuring excellent conductivity and corrosion protection. The termination type is solder, suitable for standard surface mount assembly processes.

It supports currents up to 2.2 A and voltages of 225 V and 318 V, making it suitable for various industrial, electronic, and power distribution applications. The Rugged Edge Rate® contact design employs a smooth broad milled contact surface that increases wear life compared to conventional contacts.

The stack height ranges from 7.00 mm to 16.00 mm, providing flexibility for different board thicknesses and assembly configurations. Positions are available up to 200 contacts, allowing customization for specific design requirements. This product is dual sourced by Hirose®, ensuring quality and supply reliability.

Samtec ERM8 Series connectors are applicable in electronics manufacturing, telecommunications, automotive electronics, instrumentation, and industrial control systems. Their robust design and certified compliance make them ideal for demanding environments where consistent connection integrity is critical.

This PCB header is a surface mount type with shrouded contacts for enhanced mechanical protection. Phosphor bronze contact material with gold plating ensures excellent electrical performance and durability. Rated for 2.2 A current and voltages up to 318 V, suitable for diverse electronic applications.

Compact 0.8 mm pitch and 2-row configuration optimize PCB space usage. Rugged Edge Rate® contact technology extends wear life and reliability. Stack height adjustable from 7.00 mm to 16.00 mm to accommodate multiple assembly needs.

Positions available up to 200 contacts for scalable designs. Discover reliable connectivity solutions by browsing more PCB Headers and Connectors at EnvMart.
