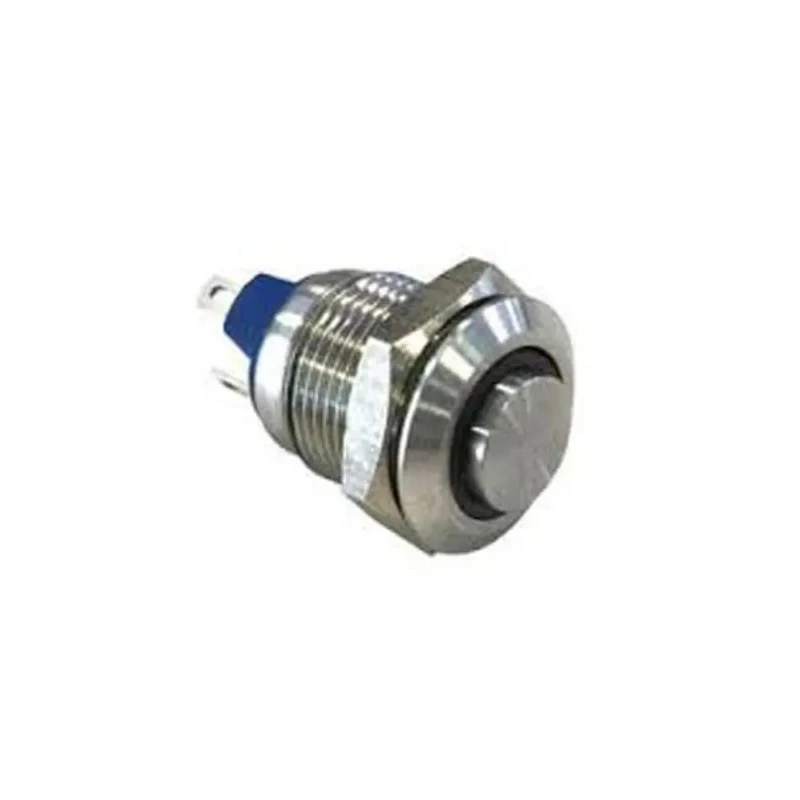

Bulgin Illuminated Momentary Push Button Switch Panel Mount 12 mm Cutout SPST Green LED IP67 36V DC MAV0120
Specifications
| Country of Origin | China |
|---|---|
| Brand | Bulgin |
| Model | MAV0120 |
| IP Rating | IP67 |
| Mount Type | Panel |
| Series | MAV0120 |
| Maximum Operating Temperature | 55°C |
| Contact Configuration | SPST |
| Minimum Operating Temperature | -25°C |
| Panel Cutout Size | 12 mm |
| Terminal type | Solder Lug |
| Standards/Approvals | RoHS |
| LED Colour | Green |
| Switch Operation | Momentary |
| Actuator Colour | Silver |
| Contact DC Voltage | 36V dc |
| Actuator Style | Momentary |
| Switch Contact Current | 2A |
| Contact AC Voltage | 36V ac |
Key Features
- Operates momentarily with a silver actuator color.
- Features solder lug terminals for secure connections.
- Provides IP67 rated protection against dust and water ingress.
- Supports contact voltages up to 36V AC/DC and contact current of 2A.
- Durable stainless steel construction suitable for harsh environments.
- Wide operating temperature range from -25°C to 55°C.
- Green LED illumination enhances visibility and operational status indication.
- Complies with RoHS standards ensuring environmental safety.
Product Description
Bulgin MAV0120 Series Illuminated Push Button Switch is a high-quality momentary switch designed for panel mounting applications requiring rugged and reliable operation. With a 12 mm panel cutout and single pole single throw (SPST) contact configuration, this switch features a silver actuator and green LED illumination for clear status indication.
The switch is built with robust stainless steel construction providing excellent resistance to vandalism and physical damage, making it suitable for industrial, commercial, and public kiosk installations where above-panel water and dust ingress protection is critical. It offers IP67 rating, ensuring complete protection against dust ingress and water immersion up to 1 meter, enabling use in harsh environments and outdoor panels.
Electrical ratings include 36 V AC/DC contact voltage and a contact current capacity of 2 amperes, making it suitable for various control circuits and automation applications. Terminal connections are made via solder lug terminals for secure, permanent wiring. The operational temperature range spans from -25°C to 55°C, providing reliable performance across diverse climatic conditions.
The momentary action switch instantaneously changes state when pressed and returns to the original state upon release, ideal for pulse control and signaling operations. The green LED illumination integrated within the actuator offers visual indication, enhancing user interaction and safety.
Momentary switch operation with silver actuator color. Panel mount with 12 mm cutout size. SPST contact configuration with 2A contact current rating. Green LED illumination for clear operational feedback. IP67 rated for dust-tight and waterproof protection.
Operating voltage of 36 V AC/DC suitable for various control circuits. Durable stainless steel construction resists vandalism and harsh environments. Wide operating temperature range from -25°C to 55°C. Compliant with RoHS standards ensuring environmental safety.
This Bulgin MAV0120 push button switch series is extensively used in industrial automation, manufacturing control panels, water treatment plants, and public service kiosks where ruggedness and reliability are essential. Its anti-vandal design combined with high ingress protection makes it a preferred choice for outdoor and exposed panel installations.
Explore a wide range of Push Button Switches and illuminated controls in the EnvMart catalogue to find matching components and accessories optimized for your specific applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Bulgin MAV0120 features a single pole single throw (SPST) contact configuration.
This model can operate at a maximum temperature of 55°C.
It has an IP67 rating, providing complete protection against dust ingress and water immersion up to 1 meter.
The required panel cutout size for installation is 12 mm.
It uses solder lug terminals for secure connections.
The contact current rating for the Bulgin MAV0120 is 2A.
The switch supports a contact voltage of 36V for both AC and DC applications.
The operational temperature range spans from -25°C to 55°C.
The LED illumination on the switch is green, enhancing visibility and operational status indication.
The actuator style of this switch is momentary, meaning it changes state only while pressed.
Yes, it complies with RoHS standards, ensuring environmental safety.
It is commonly used in industrial automation, manufacturing control panels, and public service kiosks.
