| Country of Origin | China |
|---|---|
| Brand | onsemi |
| Height | 0.43mm |
| Length | 0.85mm |
| Model | NSR0230P2T5G |
| Width | 0.65mm |
| Mount Type | Surface |
| Maximum Operating Temperature | 125°C |
| Package Type | SOD-923 |
| Minimum Operating Temperature | -55°C |
| Pin Count | 2 |
| Automotive Standard | AEC-Q101 |
| Maximum Continuous Forward Current If | 200mA |
| Peak Reverse Repetitive Voltage Vrrm | 30V |
| Diode Configuration | Single |
| Rectifier Type | Schottky |
| Peak Reverse Current Ir | 10μA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 1A |
| Maximum Forward Voltage Vf | 500mV |
| Nexperia 30 V 200 mA Diode Schottky 2-Pin SOD-882Brand | Nexperia |

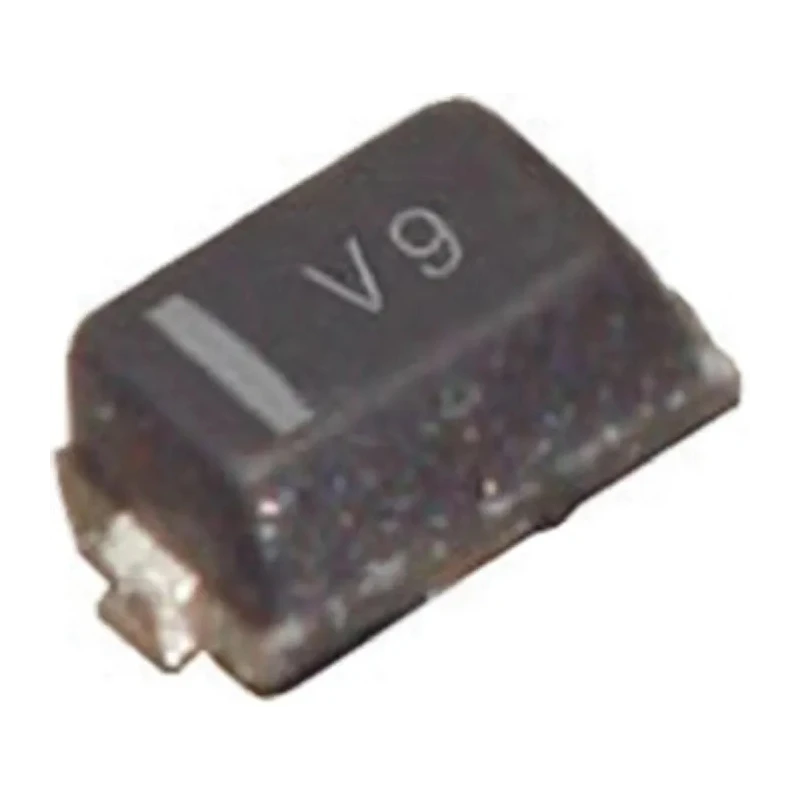

onsemi NSR0230P2T5G Schottky Diode is a highly efficient surface mount semiconductor device designed for low voltage and high-frequency rectification applications. Utilizing the Schottky barrier metal principle, it offers excellent forward voltage drop versus reverse current characteristics.
This diode supports a maximum continuous forward current of 200 mA and withstands a peak reverse repetitive voltage of 30 V. Its maximum forward voltage is 500 mV, making it ideal for power rectification and protection circuits in compact electronic assemblies.
Encapsulated in a miniature SOD-923 surface mount package, it features a small footprint and lightweight construction at approximately 11.7 mg. The package dimensions are 0.85 mm in length, 0.65 mm in width, and 0.43 mm in height.
The diode tolerates operating temperatures as low as -55°C and up to 125°C maximum, suitable for demanding automotive and industrial environments. It also supports a peak non-repetitive forward surge current of 1 A.
Operates at continuous forward current of 200 mA. 30 V peak reverse voltage rating ensures robust protection. Compact SOD-923 package enables integration in small form factor boards. Automotive qualified per AEC-Q101 standard.
Epoxy moulded case provides stress protection and durability. Pb-free design for environmentally compliant manufacturing. Ideal for use in industrial, automotive, and consumer electronics applications.
This device is commonly used in industrial power supplies, low voltage power rectification, freewheeling, and polarity protection in motor drives and automotive circuits. The adherence to AEC-Q101 automotive standards assures reliability for harsh operational conditions.
