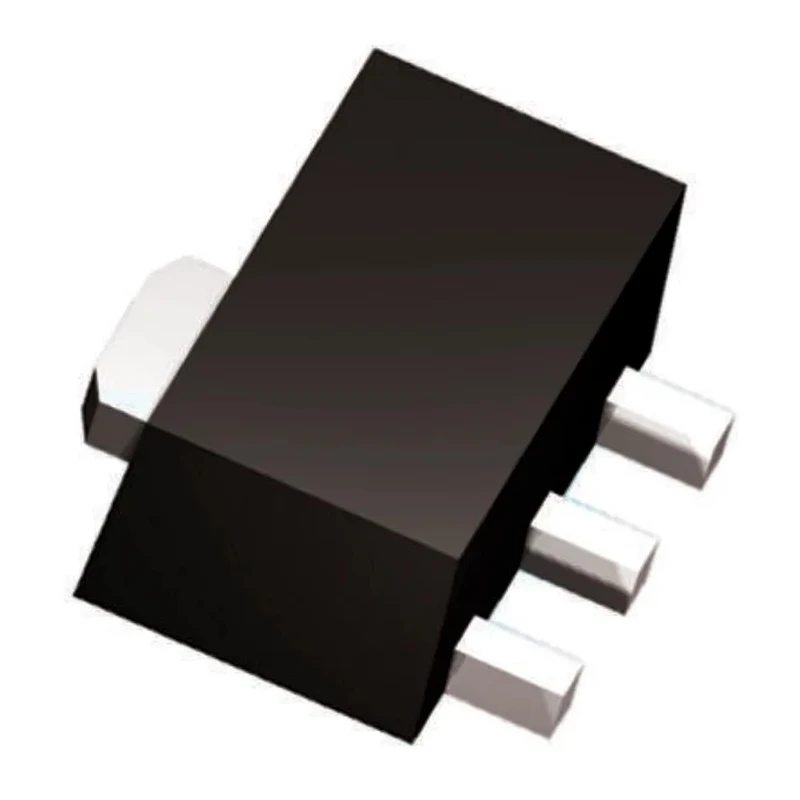

onsemi Small Signal NPN Transistor, 700 mA Maximum DC Collector Current, 160 V Maximum Collector Emitter 2SC3648S-TD-E

onsemi 2SC3648S-TD-E Small Signal NPN Transistor is engineered for discrete semiconductor applications requiring reliable switching and amplification. It features a maximum DC collector current of 700 mA and a collector-emitter voltage rating of 160 V, enabling performance in a range of circuits requiring medium power levels.

The transistor comes in a compact 3-pin PCP surface mount package that facilitates easy assembly on printed circuit boards used in industrial, automotive, and electronics manufacturing environments.

This single NPN transistor supports a minimum DC current gain (hFE) of 90 and can operate at high transition frequencies up to 120 MHz, making it suitable for RF and switching applications where speed and gain are critical.

With a maximum power dissipation of 1.3 W and the ability to operate in temperatures as high as 150°C, the device is designed to maintain stable operation in challenging thermal conditions. Its dimensions (4.5 mm length, 4 mm width, 0.9 mm height) allow for compact circuit layouts.

This transistor is manufactured in China and conforms to industry semiconductor standards, providing a cost-effective and reliable component for electronic device manufacturers and repair specialists.

Maximum DC collector current of 700 mA ensures robust conduction capabilities. Maximum collector-emitter voltage rating of 160 V allows operation in high voltage circuits. Surface mount package type PCP with 3 pins supports efficient PCB integration.

NPN transistor configuration optimized for single transistor use in amplification applications. Maximum power dissipation of 1.3 W for reliable thermal performance. Minimum DC current gain (hFE) of 90 assures sufficient amplification.

Maximum transition frequency of 120 MHz suitable for high-speed switching applications. Compact dimensions with length 4.5 mm, width 4 mm, and height 0.9 mm reduce space on circuit boards. Maximum operating temperature up to 150°C supports use in demanding environments.

Manufactured in China following standard semiconductor industry processes.
