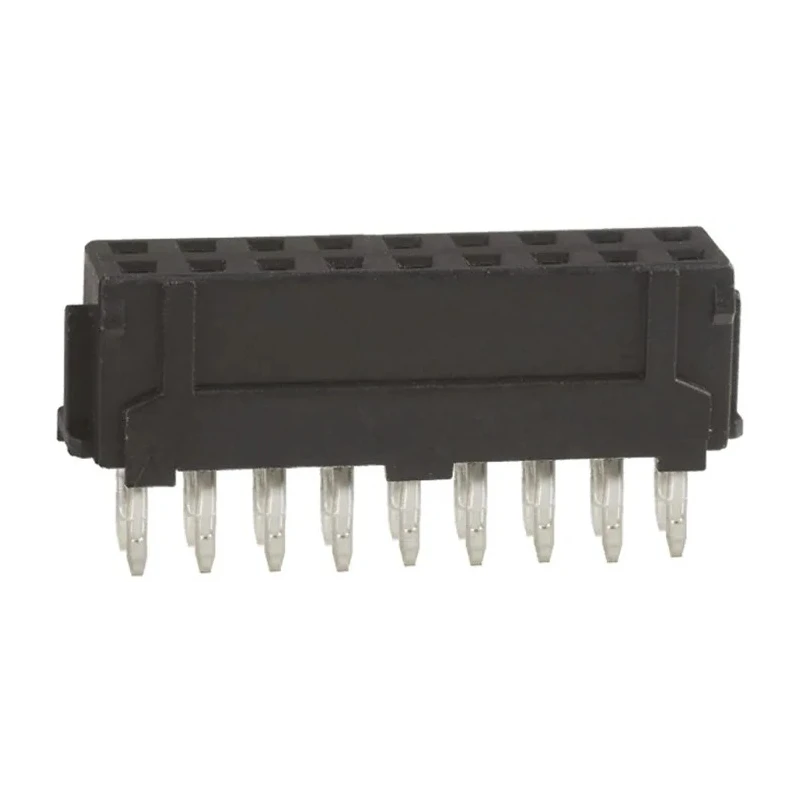

Hirose DF11 Series Straight Through Hole PCB Socket, 18-Contact, 2 Row, 2 mm Pitch, Solder Termination DF11
Specifications
| Country of Origin | Malaysia |
|---|---|
| Voltage | 250V |
| Brand | Hirose |
| Orientation | Straight |
| Current | 2A |
| Model | DF11 |
| Mount Type | Through Hole |
| Housing Material | Polyamide |
| Contact Material | Brass |
| Series | DF11 |
| Termination Type | Solder |
| Maximum Operating Temperature | 85°C |
| Minimum Operating Temperature | -30°C |
| Number of Rows | 2 |
| Pitch | 2mm |
| Contact Plating | Tin |
| Number of Contacts | 18 |
| Contact Gender | Male |
| Connector System | Board-to-Board |
Key Features
- Compact space-saving 2 row, 18-contact PCB socket design.
- 2 mm pitch suitable for board-to-board connector systems.
- Polyamide housing provides robust insulation and durability.
- Solder termination enables reliable and secure PCB connection.
- Rated for 2 A current and 250 V voltage operation.
- Operating temperature range from -30°C to 85°C ensures versatility.
- Brass contacts with tin plating for corrosion resistance.
- Straight orientation facilitates easy mating with corresponding headers.
Product Description
Hirose DF11 Series Straight Through Hole PCB Socket, model DF11, offers 18 contacts arranged in 2 rows with a 2 mm pitch, featuring solder termination suitable for board-to-board connector applications. The polyamide housing ensures electrical insulation and mechanical strength suitable for industrial and commercial electronics assembly.
This connector supports a current rating of 2 A and a voltage rating of 250 V, with operating temperatures ranging from -30°C to 85°C, making it reliable under various environmental conditions. The contacts are made of brass and plated with tin to enhance durability and conductivity.
The compact design allows a double row of contacts in the space of a single row placement with an overall connector depth less than 5 mm. Guide ribs in the housing prevent misalignment during mating and reduce risks of damage.
This PCB socket is particularly suitable for portable devices, including digital cameras, LCD displays, digital video recorders, car navigation systems, access control units, and measurement instruments where multiple signals must be connected in a compact space.
Its through hole mounting provides strong retention on the PCB, ensuring long-term mechanical stability, while the straight orientation allows easy and reliable connection to mating headers.
Compact space-saving 2 row, 18-contact PCB socket design. 2 mm pitch suitable for board-to-board connector systems. Polyamide housing provides robust insulation and durability. Solder termination enables reliable and secure PCB connection.
Rated for 2 A current and 250 V voltage operation. Operating temperature range from -30°C to 85°C ensures versatility. Brass contacts with tin plating for corrosion resistance. Straight orientation facilitates easy mating with corresponding headers.
Includes guide ribs to prevent incorrect insertion and twisting. Designed for portable devices, digital cameras, LCD displays, and measurement equipment. Explore more PCB Sockets and connectors in our Electronics Components category for industrial, manufacturing, and laboratory applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model is rated for a current of 2 A and a voltage of 250 V, making it suitable for various electronic applications.
The DF11 series socket features a 2 mm pitch and has 18 contacts arranged in 2 rows.
The housing is made of polyamide, while the contacts are constructed from brass and plated with tin for corrosion resistance.
It operates within a temperature range of -30°C to 85°C, allowing for versatility in different environments.
This unit features solder termination, which enables a reliable and secure connection to the PCB.
This socket uses through hole mounting, providing strong retention on the PCB for mechanical stability.
The contacts in this model are arranged in a straight orientation, facilitating easy mating with corresponding headers.
It is particularly suitable for portable devices, including digital cameras, LCD displays, and measurement instruments.
The housing includes guide ribs that help prevent misalignment during mating and reduce the risk of damage.
The overall connector depth is less than 5 mm, allowing for a compact design in space-constrained applications.
Yes, this model is designed specifically for board-to-board connector systems, enhancing its application versatility.
The country of origin for this PCB socket is Malaysia.
